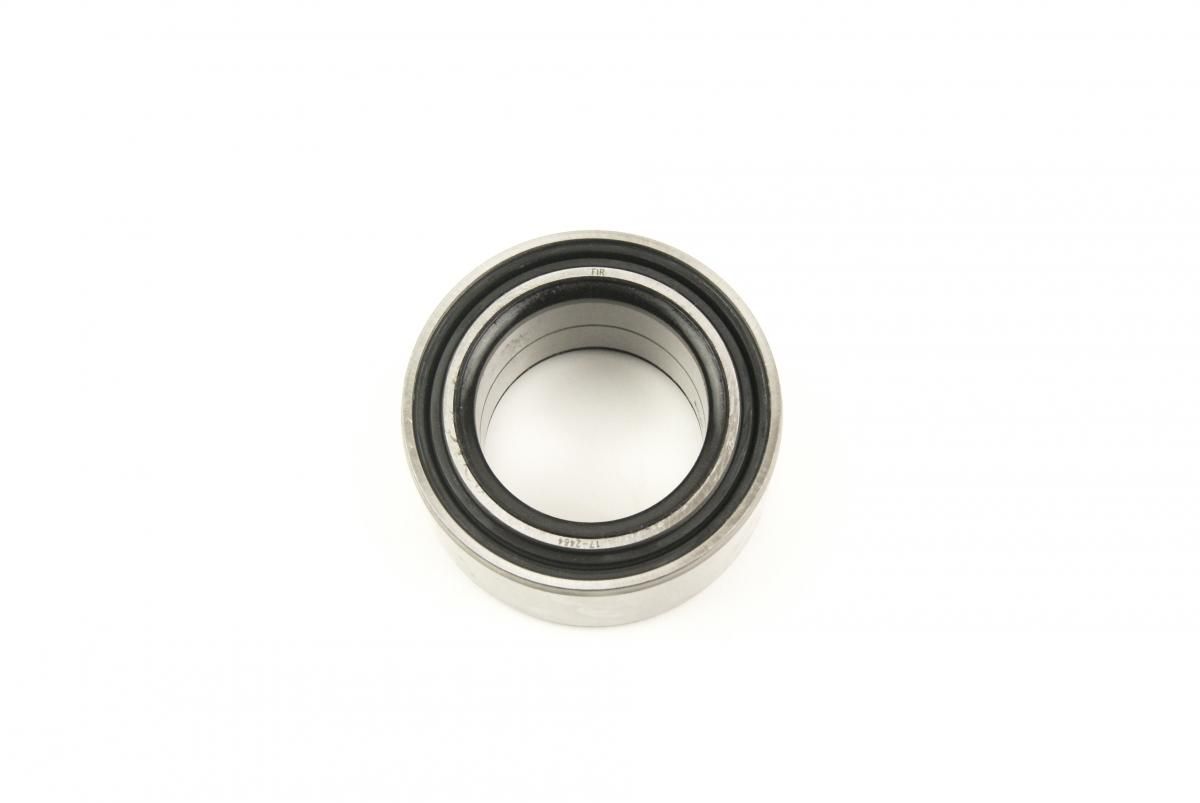

WHEEL BEARING Polaris 3514699 20-1057 44x72x33 ATV 25-1628

Wheel Bearing SEALED 44x72x33

Specifications

• Deep Groove Ball Bearing
• Double Rows,
• Inner diameter of 44 mm,
• Outer diameter of 72 mm
• Tickness of 33.1 mm.



Front
Polaris
ACE 570 18, ACE 900 EPS XC 17-18, Brutus HD 900 13-15, General 1000 EPS 16-18, General 4 1000 EPS 17-18, Ranger 1000 Diesel 15-18, Ranger 1000 Diesel Crew 15-18, Ranger 1000 Diesel EU 15-16, Ranger 4×4 500 EFI 09-10, Ranger 4×4 700 09, Ranger 4×4 800 EFI 10-14, Ranger 4×4 800 EFI CREW 10-14, Ranger 4×4 900 Diesel 11-14, Ranger 4×4 900 Diesel Crew 12-14, Ranger 570 Full Size 15-16, Ranger 570 XP 16, Ranger 570-6 Full Size Crew 16, Ranger 6×6 800 10-16, Ranger 900 Crew 14-17, Ranger 900 XP 13-18, Ranger 900 XP EU 15-16, Ranger 900D HIPPO MPS 14, Ranger Diesel HST/Deluxe 14, Ranger Diesel INTL 14, Ranger HST 15-16, Ranger XP 800 12, RZR 1000 60 INCH 16-18, RZR 4 800 10-14, RZR 4 900 15-18, RZR 4 XP 900 12-14, RZR 4 XP JAGGED X 13, RZR 570 EFI 12-18, RZR 570 EU 15-18, RZR 570 PS 18, RZR 570 S 17, RZR 800 11-14, RZR 800 Built After 1/01/10 10, RZR 900 50 55 INCH 15-17, RZR 900 50 INCH 18, RZR 900 50 INCH EPS 18, RZR 900 50 INCH MD 17, RZR 900 60 INCH 15-18, RZR S 800 11-14, RZR S 800 Built After 3/22/10 10, RZR XP 1000 14-18, RZR XP 1000 Built After 10/20/15 16, RZR XP 1000 Built Before 10/19/15 16, RZR XP 1000 INTL 15, RZR XP 4 1000 14-18, RZR XP 4 1000 Built After 10/20/15 16, RZR XP 4 1000 Built Before 10/19/15 16, RZR XP 4 TURBO 16-18, RZR XP 4 TURBO AB 17, RZR XP 4 TURBO AM/AW/LW/AP 17, RZR XP 4 TURBO Built After 6/5/17 18, RZR XP 900 11-14, RZR XP TURBO 16-18, RZR XP TURBO MD 16, RZR XP TURBO Tractor 17-18, Scrambler 1000 MD 15-17, Scrambler 1000 MD Built After 2/16/16 16, Scrambler 1000 MD Built Before 2/15/16 16, Scrambler 1000 Tractor 16-18, Scrambler 1000 XP 15-18, Scrambler 1000 XP EU 15, Scrambler 1000 XP HO EPS 14-15, Scrambler 1000 XP HO EPS INTL 14, Scrambler 850 15-18, Scrambler 850 EU 15, Scrambler 850 HO/EPS 13-14, Scrambler 850 MD 15, Scrambler 850 XP HO EPS 14, Scrambler 850 XP HO EPS INTL 14, Sportsman 1000 High Lifter 16-18, Sportsman 1000 MD 15, Sportsman 1000 MD Built After 2/16/16 16, Sportsman 1000 MD Built Before 2/15/16 16, Sportsman 1000 XP 15-18, Sportsman 1000 XP Tractor 17-18, Sportsman 1000 XP Tractor Built After 2/16/16 16, Sportsman 1000 XP Tractor Built Before 2/15/16 16, Sportsman 550 11-13, Sportsman 550 EPS 10-14, Sportsman 550 X2 10-14, Sportsman 550 X2 EPS LE 14, Sportsman 550 X2 INTL 14, Sportsman 550 XP 10-14, Sportsman 550 XP Built After 12/1/08 09, Sportsman 550 XP Built Before 12/1/08 09, Sportsman 550 XP EPS HD INTL 14, Sportsman 850 High Lifter 17-18, Sportsman 850 SP 15-18, Sportsman 850 WV 14, Sportsman 850 XP HO EPS MD 15, Sportsman Forest 1000 EU 15, Sportsman Forest 550 11-14, Sportsman Forest 850 11-15, Sportsman Forest 850 EU 15, Sportsman Touring 1000 15-18, Sportsman Touring 550 EPS 10-14, Sportsman Touring 850 EPS 14, Sportsman Touring 850 INTL 14, Sportsman Touring 850 SP 15-18, Sportsman Touring 850 SP EU 15, Sportsman Touring 850 SP MD 15, Sportsman Touring EPS 850 10-13, Sportsman Touring EPS 850 HO 13, Sportsman X2 850 11, Sportsman XP 850 09-13, Sportsman XP 850 EPS 09-14,
Rear
Polaris
General 1000 EPS 16-18, General 4 1000 EPS 17-18, RZR 1000 60 INCH 16-18, RZR 4 900 15-18, RZR 4 XP 900 12-14, RZR 4 XP JAGGED X 13, RZR 900 50 55 INCH 15-17, RZR 900 50 INCH 18, RZR 900 50 INCH EPS 18, RZR 900 50 INCH MD 17, RZR 900 60 INCH 15-18, RZR XP 1000 14-18, RZR XP 1000 Built After 10/20/15 16, RZR XP 1000 Built Before 10/19/15 16, RZR XP 1000 INTL 15, RZR XP 4 1000 14-18, RZR XP 4 1000 Built After 10/20/15 16, RZR XP 4 1000 Built Before 10/19/15 16, RZR XP 4 TURBO 16-18, RZR XP 4 TURBO AB 17, RZR XP 4 TURBO AM/AW/LW/AP 17, RZR XP 4 TURBO Built After 6/5/17 18, RZR XP 900 11-14, RZR XP TURBO 16-18, RZR XP TURBO MD 16, RZR XP TURBO Tractor 17-18, Scrambler 1000 MD 15-17, Scrambler 1000 MD Built After 2/16/16 16, Scrambler 1000 MD Built Before 2/15/16 16, Scrambler 1000 Tractor 16-18, Scrambler 1000 XP 15-18, Scrambler 1000 XP EU 15, Scrambler 1000 XP HO EPS 14-15, Scrambler 1000 XP HO EPS INTL 14, Scrambler 850 15-18, Scrambler 850 EU 15, Scrambler 850 HO/EPS 13-14, Scrambler 850 MD 15, Scrambler 850 XP HO EPS 14, Scrambler 850 XP HO EPS INTL 14, Sportsman 1000 High Lifter 16-18, Sportsman 1000 MD 15, Sportsman 1000 MD Built After 2/16/16 16, Sportsman 1000 MD Built Before 2/15/16 16, Sportsman 1000 XP 15-18, Sportsman 1000 XP Tractor 17-18, Sportsman 1000 XP Tractor Built After 2/16/16 16, Sportsman 1000 XP Tractor Built Before 2/15/16 16, Sportsman 550 11-13, Sportsman 550 EPS 10-14, Sportsman 550 X2 10-14, Sportsman 550 X2 EPS LE 14, Sportsman 550 X2 INTL 14, Sportsman 550 XP 10-14, Sportsman 550 XP Built After 12/1/08 09, Sportsman 550 XP Built Before 12/1/08 09, Sportsman 550 XP EPS HD INTL 14, Sportsman 850 High Lifter 17-18, Sportsman 850 SP 15-18, Sportsman 850 WV 14, Sportsman 850 XP HO EPS MD 15, Sportsman Forest 1000 EU 15, Sportsman Forest 550 11-14, Sportsman Forest 850 11-15, Sportsman Forest 850 EU 15, Sportsman Touring 1000 15-18, Sportsman Touring 550 EPS 10-14, Sportsman Touring 850 EPS 14, Sportsman Touring 850 INTL 14, Sportsman Touring 850 SP 15-18, Sportsman Touring 850 SP EU 15, Sportsman Touring 850 SP MD 15, Sportsman Touring EPS 850 10-13, Sportsman Touring EPS 850 HO 13, Sportsman X2 850 11, Sportsman XP 850 09-13, Sportsman XP 850 EPS 09-14

– Allbals wheel bearing kits include everything you need to get your machine running like new.
– Include bearings and seals to rebuild one wheel; rear kits for ATVs rebuild entire bearing carrier.
– Premium-quality, high-speed bearings with high-quality, EMQ standard seals.
– Optimal sealing from rubber-covered outside diameter seals with garter-spring inner lips.

– Bearing Ball Sealed 44X72x33.1

Cross reference numbers ONLY.
25-1628, 3514699, 3514924, 3514924 , 3514627, 3514924,

Assemblies where 3514627 is used
2009 RANGER 4X4 500 EFI (R09HH50AG/AR) – Wheels, Front
2009 RANGER 4X4 700 EFI ALL OPTIONS (R09HH68/HY68) – Wheels, Front All Options
2009 SPORTSMAN XP 550 (A09ZN55AL/AQ/AS/AT/AX) – Wheels, Front & Hub
2009 SPORTSMAN XP 550 (A09ZN55AL/AQ/AS/AT/AX) – Wheels, Rear & Hub
2009 SPORTSMAN XP 550 INTL (A09ZN55FX) – Wheels, Front & Hub
2009 SPORTSMAN XP 550 INTL (A09ZN55FX) – Wheels, Rear & Hub
2009 SPORTSMAN XP 850 (A09ZN85/8X ALL OPTIONS) – Wheels, Front & Hub
2009 SPORTSMAN XP 850 (A09ZN85/8X ALL OPTIONS) – Wheels, Rear & Hub
2009 SPORTSMAN XP 850 INTL (A09ZN85FL/8CFL) – Wheels, Front & Hub
2009 SPORTSMAN XP 850 INTL (A09ZN85FL/8CFL) – Wheels, Rear & Hub
2009 SPORTSMAN XP EPS 550 (A09ZX55AC/AL/AQ/AS/AX) – Wheels, Front & Hub
2009 SPORTSMAN XP EPS 550 (A09ZX55AC/AL/AQ/AS/AX) – Wheels, Rear & Hub
2009 SPORTSMAN XP EPS 850 (A09ZX85/8X ALL OPTIONS) – Wheels, Front & Hub
2009 SPORTSMAN XP EPS 850 (A09ZX85/8X ALL OPTIONS) – Wheels, Rear & Hub
2009 SPORTSMAN XP EPS 850 INTL (A09ZX85FS/CFS) – Wheels, Front & Hub
2009 SPORTSMAN XP EPS 850 INTL (A09ZX85FS/CFS) – Wheels, Rear & Hub
2010 RANGER 4X4 500 EFI (R10TH50AG/AR) – Wheels, Front
2010 RANGER 4X4 800 EFI ALL OPTIONS (R10TH76/TY76) – Wheels, Front All Options
2010 RANGER 4X4 800 EFI CREW (R10WH76AG/AH/AR/AV/WY76AW/AZ) – Wheels, Front
2010 RANGER 6X6 800 EFI (R10HR76AG/AR) – Wheels, Front
2010 RZR “S” 800 EFI (R10VH76AB/AO/AQ/AW) – Wheels, Front
2010 RZR 4 800 EFI (R10XH76AA) – Wheels, Front
2010 RZR 800 EFI (R10VH76 ALL OPTIONS/VY76AZ) – Wheels, Front
2010 SPORTSMAN EPS 550 (A10ZX55AL/AT/AX) – Wheels, Front & Hub A10zx55al/Ax
2010 SPORTSMAN EPS 550 (A10ZX55AL/AT/AX) – Wheels, Front & Hub A10zx55at
2010 SPORTSMAN EPS 550 (A10ZX55AL/AT/AX) – Wheels, Rear & Hub A10zx55al/Ax
2010 SPORTSMAN EPS 550 (A10ZX55AL/AT/AX) – Wheels, Rear & Hub A10zx55at
2010 SPORTSMAN EPS 550 INTL (A10ZX55FX/FF) – Wheels, Front & Hub
2010 SPORTSMAN EPS 550 INTL (A10ZX55FX/FF) – Wheels, Rear & Hub
2010 SPORTSMAN TOURING EPS 550 (A10DX55AL/AF) – Wheels, Front & Hub
2010 SPORTSMAN TOURING EPS 550 (A10DX55AL/AF) – Wheels, Rear & Hub
2010 SPORTSMAN TOURING EPS 850 (A10DX85AL/AF) – Wheels, Front & Hub
2010 SPORTSMAN TOURING EPS 850 (A10DX85AL/AF) – Wheels, Rear & Hub
2010 SPORTSMAN X2 550 (A10TN55AL/AX) – Wheels, Front & Hub
2010 SPORTSMAN X2 550 (A10TN55AL/AX) – Wheels, Rear & Hub
2010 SPORTSMAN XP 550 (A10ZN55AL/AQ/AX) – Wheels, Front & Hub
2010 SPORTSMAN XP 550 (A10ZN55AL/AQ/AX) – Wheels, Rear & Hub
2010 SPORTSMAN XP 850 (A10ZN85AL/AQ/AX) – Wheels, Front & Hub
2010 SPORTSMAN XP 850 (A10ZN85AL/AQ/AX) – Wheels, Rear & Hub
2010 SPORTSMAN XP EPS 850 (A10ZX85AK/AL/AS/AT/AX) – Wheels, Front & Hub A10zx85ak/Al/As/Ax
2010 SPORTSMAN XP EPS 850 (A10ZX85AK/AL/AS/AT/AX) – Wheels, Front & Hub A10zx85at
2010 SPORTSMAN XP EPS 850 (A10ZX85AK/AL/AS/AT/AX) – Wheels, Rear & Hub A10zx85ak/Al/As/Ax
2010 SPORTSMAN XP EPS 850 (A10ZX85AK/AL/AS/AT/AX) – Wheels, Rear & Hub A10zx85at
2010 SPORTSMAN XP EPS 850 INTL (A10ZX85FL/FF) – Wheels, Front & Hub
2010 SPORTSMAN XP EPS 850 INTL (A10ZX85FL/FF) – Wheels, Rear & Hub
2011 RANGER 4X4 800 EFI CREW (R11WH76AG/AR/WY76AE/AH/AJ) – Wheels, Front
2012 RANGER XP 800 (R12TH76/TH7E/TX7E) – Wheels, Front All Options
2012 RZR 4 XP 900 (R12XT87AA/9EAS) – Suspension, Rear
2012 RZR 800 EFI/EPS (R12VH76AB/AD/AF/AH/AI/AJ/AM/EAB/EAS) – Wheels, Front
2013 GEM ALL OPTIONS (L13G2/4/6) – Suspension, Front Hubs, Disks & Knuckles All Options
2013 RANGER 900 XP ALL OPTIONS (R13UH88/UH9E) – Suspension, Front All Options
2013 RANGER 900 XP ALL OPTIONS (R13UH88/UH9E) – Wheels, Front R13uh88ac/Ag/Ar/Uh9eab/Ear
2013 RANGER 900 XP ALL OPTIONS (R13UH88/UH9E) – Wheels, Front R13uh88ao/Aq/Az/Uh9eao/Eaz
2013 RZR 4 XP 900 PS INTL (R13XT9EFX) – Suspension, Rear
2013 RZR 4 XP JAGGED X (R13XT9EAL) – Suspension, Rear
2013 RZR XP 4 900 EFI (R13XT87AA/9EAK) – Suspension, Rear
2013 RZR XP 900 EPS INTL (R13JT9EFX) – Suspension, Rear
2013 SPORTSMAN 550 EPS (A13ZN5EAD/K/L/T) – Wheels, Front & Hub A13zn5ead/K/L
2013 SPORTSMAN TOURING 850 HO EPS (A13DN8EAF/EAL/EAR) – Wheels, Front & Hub
2013 SPORTSMAN XP 850 HO EPS (A13ZN8EAD/K/L/T) – Wheels, Front & Hub A13zn8ead/K/L
2014 GEM ALL OPTIONS (L14G2/4/6) – Suspension, Front Hubs, Disks & Knuckles All Options
2014 RANGER 900 CREW ALL OPTIONS (R14WH88A/9EA) – Suspension, Front Control Arms All Options
2014 RANGER DIESEL HST/DELUXE (R141/2D9JDA) – Suspension, Front R141d9jda/2D9jda
2014 RZR 4 900 (Z14XT9EAO) – Suspension, Rear
2014 RZR 4 900 INTL (Z14XT9EFX) – Suspension, Rear
2014 RZR 800 (Z14VH76AC/AD/EAI/EAK/EAJ/EAL/EAW) – Wheels, Front
2014 RZR S 800 (Z14VE76AD/7EAL/7EAW/7EAJ/7EAU) – Wheels, Front Z14ve76ad/7Eal/7Eaw/Eaj/Eau
2014 RZR XP 1000 (Z14ST1EAM/EAW/EAK/EAN/EFW) – Wheels, Front
2014 RZR XP 1000 (Z14ST1EAM/EAW/EAK/EAN/EFW) – Wheels, Rear
2014 RZR XP 1000 INTL (Z14ST1EFX) – Wheels, Front
2014 RZR XP 1000 INTL (Z14ST1EFX) – Wheels, Rear
2014 RZR XP 4 1000/PS (Z146T1EAM/EAW) – Wheels, Rear
2015 GEM ALL OPTIONS (L15G2/4/6) – Suspension, Front Hubs, Disks & Knuckles All Options
2015 RANGER 1000 DIESEL EU (R15RTAD1FA) – Wheels, Front
2015 RANGER 570 EFI FULL SIZE CREW (R15RUA57AA/E57AC) – Suspension, Front
2015 RANGER 570 FULL SIZE (R15RTA57AA/AR/AC/EAU) – Suspension, Front
2015 RANGER HST (R151DPD1AA/2D) – Suspension, Front
2015 SPORTSMAN 1000 XP (A15SXE95AC/AK/L95AM) – Wheels, Front & Hub
2016 GEM CLASSIC ALL OPTIONS (L16G2DGALC/4S/6A/6S) – Suspension, Front Hubs, Disks & Knuckles L16g2d/4/6 All Options
2016 L16G2/4/6/EURO ALL OPTIONS GEM L16G2/4/6/EURO ALL OPTIONS (R25) – Wheels, Front R16rtm87al/Bl
2016 R16RT_87 RANGER 900 XP ALL OPTIONS R16RT_87 (R24) – Wheels, Front R16rtm87al/Bl
2016 R16RT_87 RANGER 900 XP ALL OPTIONS R16RT_87 (R27) – Wheels, Front R16rtm87al/Bl
2016 RANGER 900 XP ALL OPTIONS (R16RT_87) – Wheels, Front R16rtm87al/Bl
2017 R17RT_99 RANGER 1000 XP ALL OPTIONS R17RT_99 (R30) – Wheels, Front R17rtm99am/Bm
2017 R17RT_99 RANGER 1000 XP ALL OPTIONS R17RT_99 (R31) – Wheels, Front R17rvm99am/Bm
2017 R17RT_99 RANGER 1000 XP ALL OPTIONS R17RT_99 (R34) – Wheels, Front R17rtm99am/Bm
2017 R17RT_99 RANGER 1000 XP ALL OPTIONS R17RT_99 (R35) – Wheels, Front R17rtm99am/Bm
2017 R17RV_99 RANGER CREW 1000XP PS ALL OPTIONS R17RV_99 (R26) – Wheels, Front R17rvm99am/Bm
2017 R17RV_99 RANGER CREW 1000XP PS ALL OPTIONS R17RV_99 (R32) – Wheels, Front R17rvm99am/Bm
2017 RANGER CREW 1000XP PS ALL OPTIONS (R17RV_99) – Wheels, Front R17rvm99am/Bm
2017 RZR 570 S (Z17VJE57AR) – Suspension, Front Carrier
2019 RZR 570 (Z19VHA57B2/E57BM) – Suspension, Front Carrier
2019 RZR 570 EU MD (Z19VHA57F2) – Suspension, Front Carrier
2020 RZR 570 (Z20CHA57A2/E57AM) – Suspension, Front Carrier
2021 RZR TRAIL 570/PREMIUM (Z21CHA57A2/K2/E57AK) – Suspension, Front Carrier

Wheel bearing Front/Rear 44×72.05×33,
Polaris 25-1628, 20-1057,
Ranger 4×4 500 09-10, Ranger 4×4 700 09, Ranger 4×4 800 EFI 10-13,

Ranger 4×4 800 EFI CREW 10-12, Ranger 4×4 CREW DIESEL 900 11, Ranger 4×4 DIESEL 900 11-12, RANGER 6X6 800 10-12, RANGER RZR 4/EPS RGE 11, RANGER RZR 570 EFI 12, RANGER RZR 4 800 2013 RANGER RZR S 800 10-13, Ranger RZR XP 900 11-12,

RANGER XP 800 12, RZR 800 11-12, RZR 800 2013 RZR 800 Built 1/01/10 and after 10, Sportsman 550 11-12, Sportsman 550 EPS 10-12, Sportsman 550 X2 10-12, Sportsman Forest 550 11-12, Sportsman Forest 850 11-12, Sportsman Touring EPS 550 11-12,
