WATER TEMPERATURE SENSOR, 3089246, AT-01370, POLARIS

Polaris ATV
2005       ATP 500 4X4
2007-09       SCRAMBLER 2X4
2004-11       SCRAMBLER 500 4X4
2004-05       SPORTSMAN 400
2006-07       SPORTSMAN 450
2004-07       SPORTSMAN 500
2005-08       SPORTSMAN 500 HO
2004-08       SPORTSMAN 6X6
UTV
2005       RANGER 2X4,4X4,6X6
2006-07       RANGER 500 2X4/4X4
2008       RANGER 500 2X4

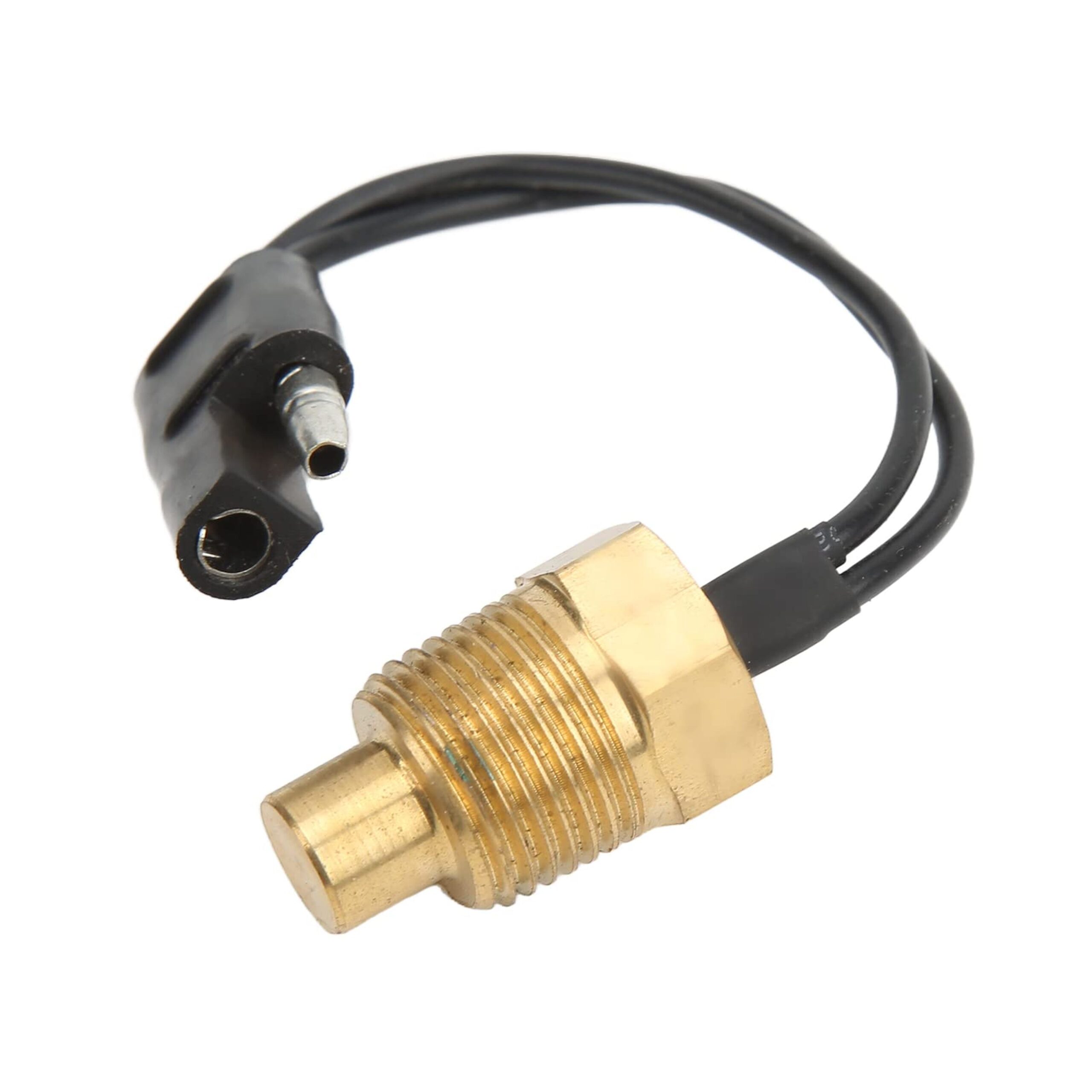

Water temperature sensor. BRONCO AT-01370

17 MM Nut, 5/16””“ 18 UNC.
Overall length: 27.8 MM. 2 Pin.
Wire length: 87.5 CM.

Temperature sensors work with the machines computer system to measure/monitor engine temperatures including the lube/oil and coolant in order to control radiators, cooling fans and thermostats. If the sensor fails a warning light will usually show up on the machines gauge and can cause overheating which can lead to serious issues if not replaced.

Part No. 44-0300.BR (oro2u.com)

Cross reference numbers ONLY.
3089246, AT-01370
