VOLTAGE REGULATOR / REGULATOR, JOHN DEERE 8099-1153, ESP2328, APM6000 RS5101 15351-64600 M802471 185530 RP20153710 MIA881277 CH15589 UTV

KUBOTA
RTV500 UTV, 821G MODELS,
GRASSHOPPER 1822D, 718D, 721D & 721G Models,
JOHN DEERE
650, 750 Tractors (M807915),

REGULATOR ARROWHEAD APM6000



Fitment:

R2013.0.2:

Grasshopper 1822D  185530

Grasshopper 718D    185530

Grasshopper 721D    185530

Grasshopper 721G    185530

John Deere Tractor 750   M802471

John Deere Tractor 650   M802471

Kubota 821G    RS5101 RS5155

R2013.0.2X:

18270169-A, 19267-64600, 19267-64600-A

19267-64601, 19267-64601-A

RP201-53710, 15531-64603, 15531-64603-A, 18270169

B2710HSD, B2910HSD, B7300HSD, B7500DTN, B7800HSD

Part No. 44-6183.AH (oro2u.com)

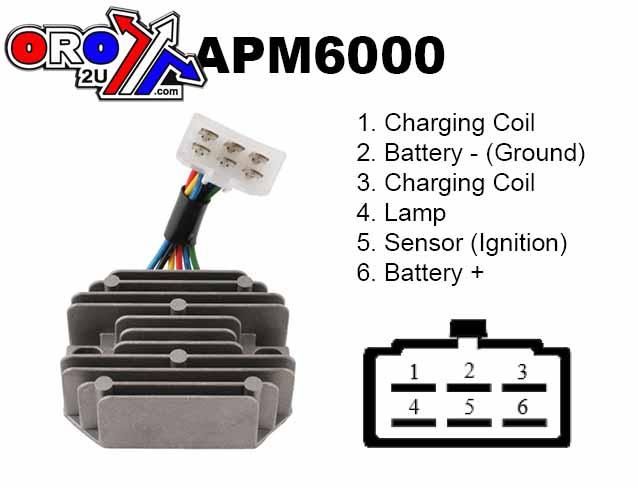

84mm L x 63.5mm W x 27.5mm T Plug is: Charging Coil – Battery Neg. – Charging Coil Light – Ignition – Battery Pos. Mtg. Holes (Elongated) 76.5mm (Outer), 56.5mm (Inner)

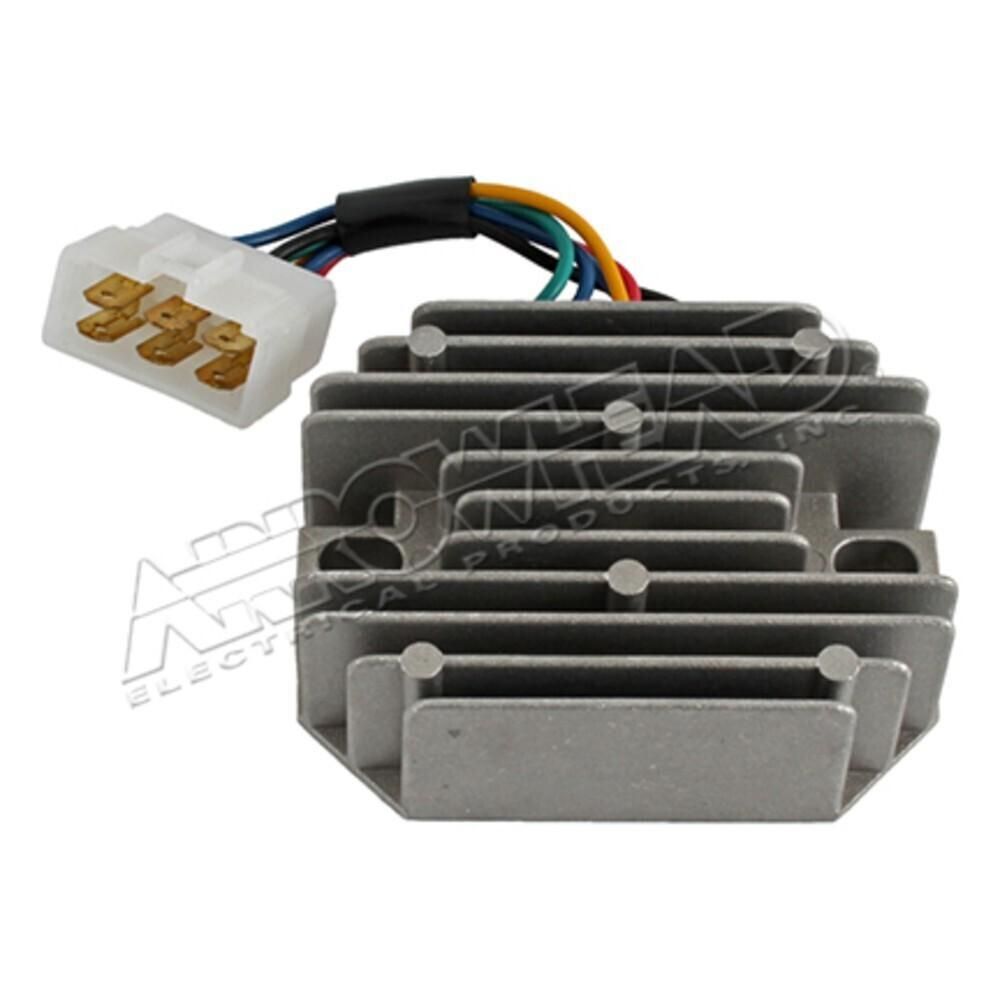

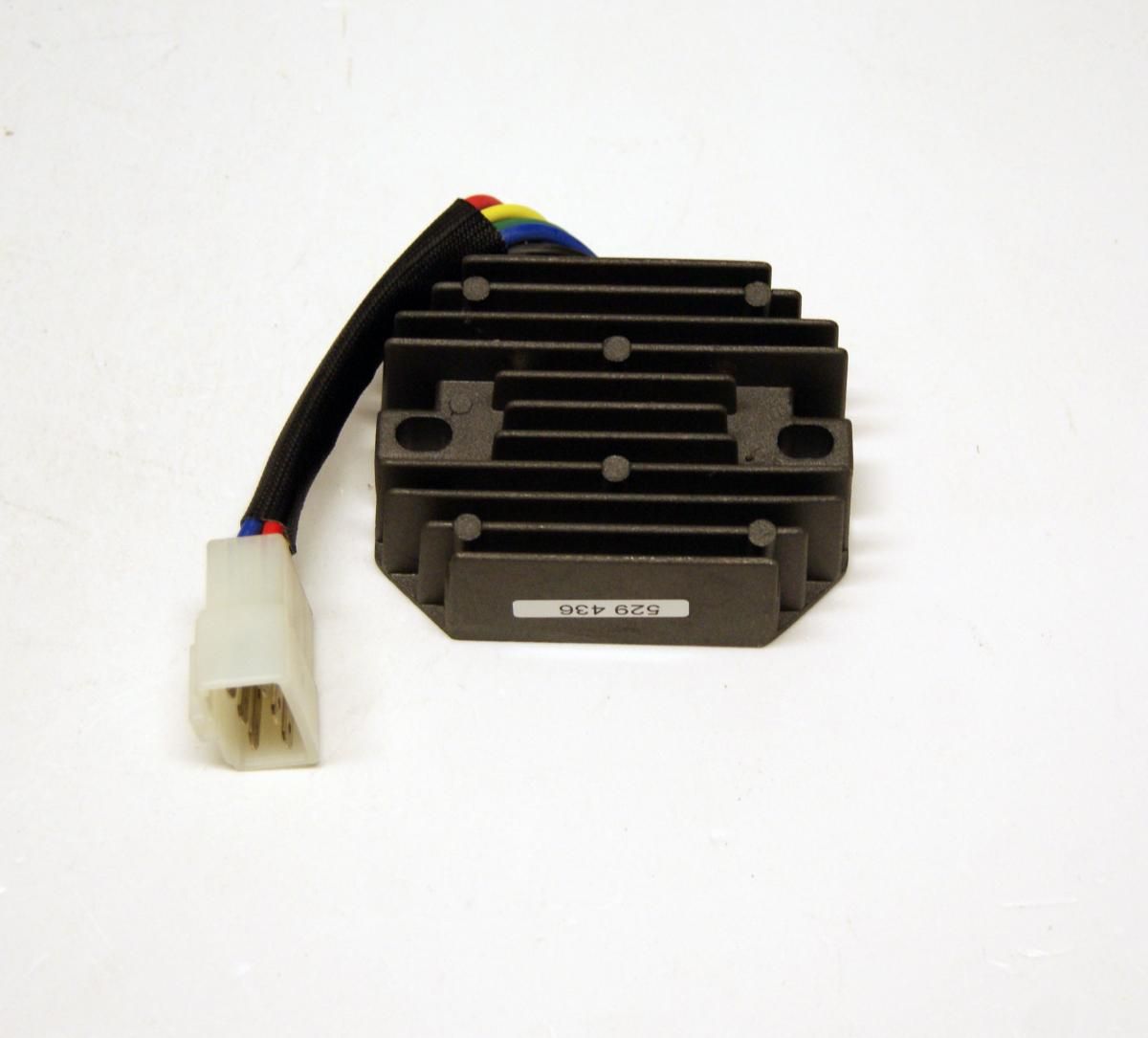

RECTIFIER / REGULATOR 12V – ARROWHEAD ESP2328

Cross reference numbers ONLY.
APM6000 ARROWHEAD ESP2328 ARROWHEAD (OEM) 1900-0553 ATLANTIC AKW6003 ARROWHEAD (OLD)
8099-1153 PIC 38099-1153/4 BOSTON AUTO ELECTRIC 230-58005 J & N 230-22017 J & N (OLD) 15351-64600 KUBOTA 15351-64601 KUBOTA 15351-64603 KUBOTA 15531-64601 KUBOTA 15531-64603 KUBOTA

RS5101 15351-64600 M802471 185530 RP20153710 MIA881277 CH15589 UTV
