VARIATOR LOCKING TOOL Piaggio 50cc, 2T, 50cc 4T, ROAD, ATV, MX, SCOOTER

VARIATOR LOCKING TOOL .   Piaggio 50-125cc 2T and 4T engine.

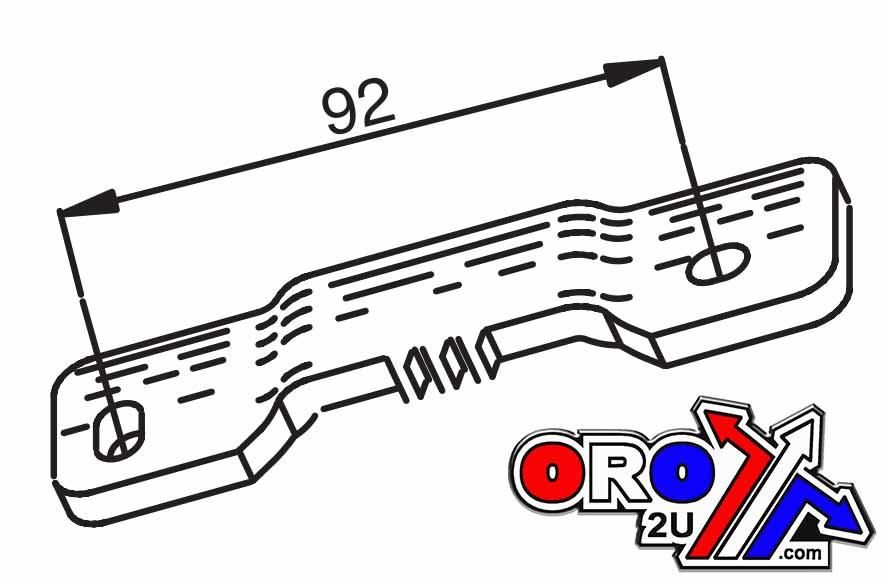

Center-to-Center holes of 92mm

This special tool for locking the front variator allows quick and easy disassembly of the variator. If no tuner workshop missing. Note: Can be used in 2-stroke maxi scooter Piaggio / Gilera . There is something else mounted and may have to be drilled out a bit !!!

Front Variator Locking Tool for ’09-’14 SR50 Factory (*Piaggio Engine)

This tool is required to remove the front variator (front pulley) if you do not own an impact gun.

This tool will be required any time you need to service your drive belt or roller weights.

AF1 Racing recommended alternative to OEM part number 020451Y (ex 020165Y)

Photo shows example installation of tool (Photo is of 125cc Aprilia engine, it is for illustrative purposes only)

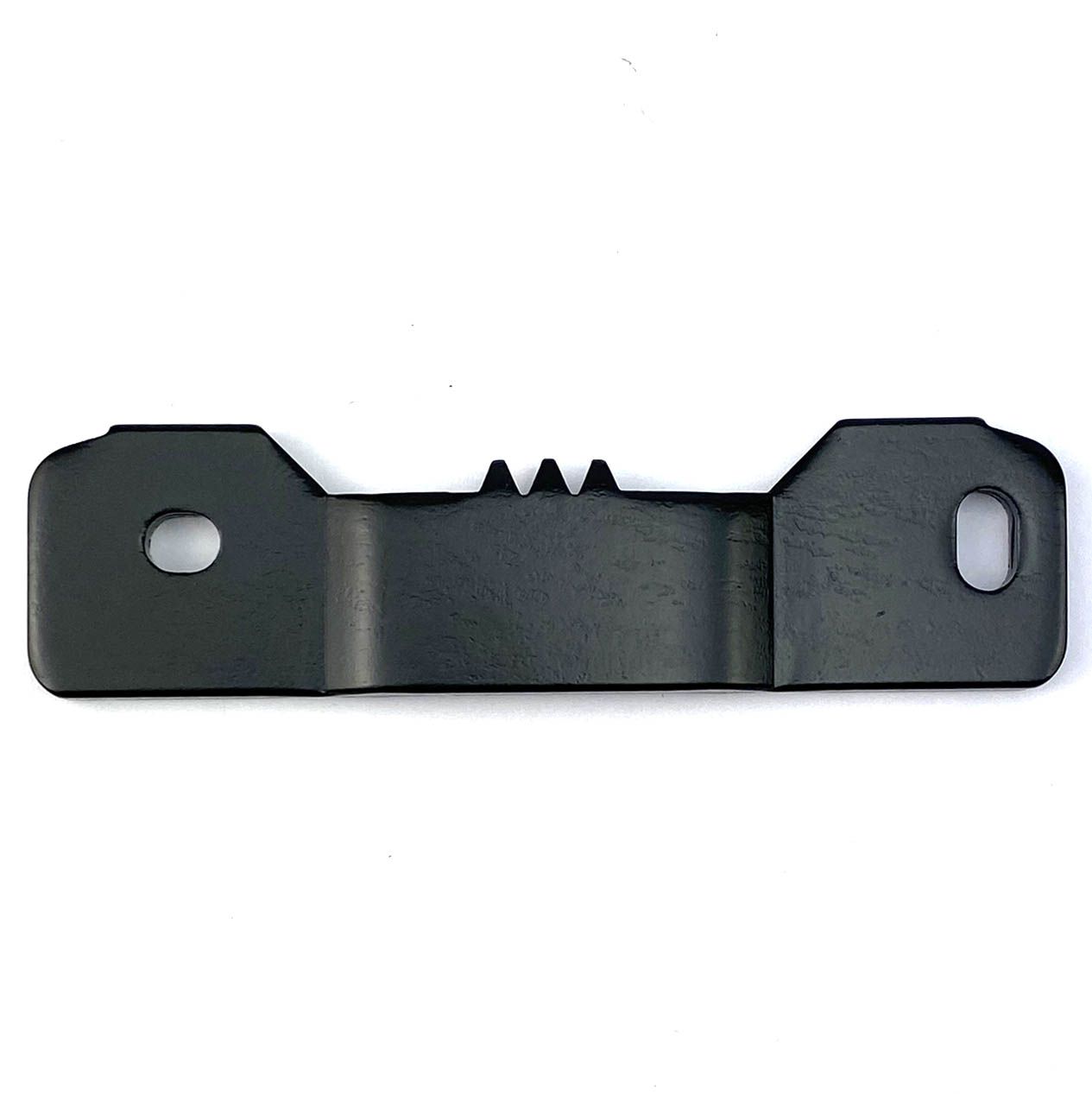

Part No. 00-7891.P (oro2u.com)

Cross reference numbers ONLY.
OUT1092, buzzetti 5425.
