VALVE STEM SEAL 5.5mm EACH, KIBBLEWHITE 71016-16

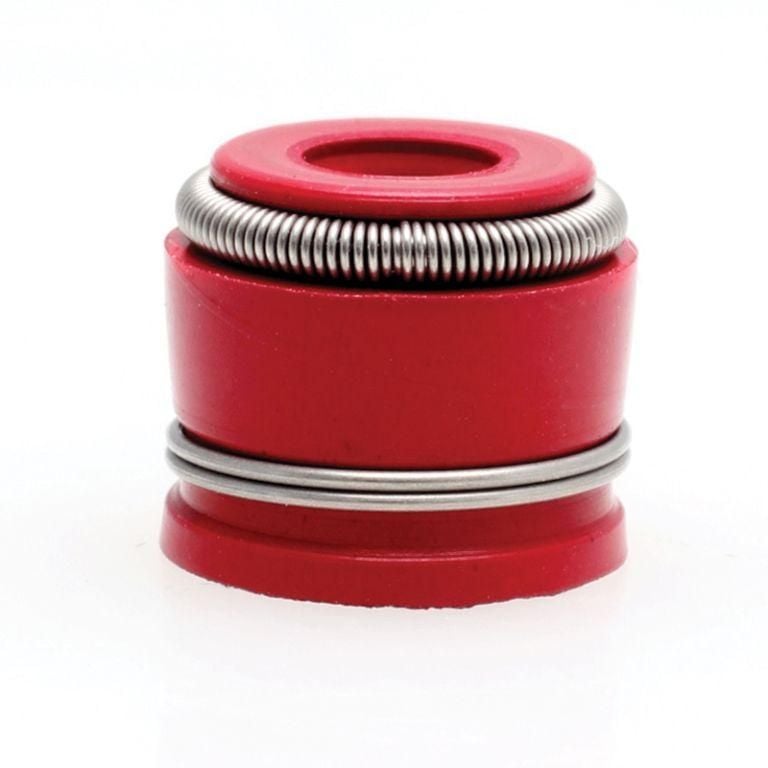

The KPMI® Red Viton® valve stem seal (Seal Style 4) is a premium universal seal designed for 5.5mm valve stems and a wide range of motorcycle engine applications. Made from 100% Red Viton®, it offers outstanding resistance to high temperatures, petroleum products, and combustion by-products. This seal is engineered to provide long-lasting performance, maintain flexibility under extreme conditions, and ensure a precise fit for both intake and exhaust applications.

Features

• Manufactured from 100% Red Viton® for superior heat and chemical resistance

• Designed for maximum valve lift and extended service life

• Prevents oil from leaking into the combustion chamber

• Maintains sealing integrity under extreme engine conditions

• Suitable for intake and exhaust valves in various models

• Ideal for high-performance and racing applications

Specifications

• Type: Intake / Exhaust

• Material: Red Viton®

• Style: Seal Style 4

• Stem Diameter: 5.5 mm

• Guide Diameter (A): 0.358″ ± 0.005″

• Overall Length: 0.320″

• Seal Outer Diameter: 0.440″

• B: 0.320″

• C: 0.110″

• D: 0.200″

• Quantity: Pack of 16

• OEM Reference Part Number: 12209-422-005

Cross-Reference OEM Part Numbers

• 12209-422-005

• Kibblewhite: 71016-16

Vehicle Fitments

HONDA

• XR75/80 1985–2003

• XR100 1985–2003

• XL200R 1980–2002

• XR200R 1980–2002 (*excluding 1984–1985 4-valve models)

• XR/XL250 RFVC 1984–1995

• XR250L 1991–1996

• XR250R 1996–2004

• XR400 RFVC 1996–2004

• CRF450R 2002–2008 (Intake only)

• Honda 750cc–1100cc models 1979–1983

SUZUKI

• GS 750 E/ES/L/T 1980–1986

• GSX-R 1000 2009–2016

• GS 1100 E/ES/S 1980–1986

• GS 1150 1984–1986

YAMAHA

• FJ1100/FJ1200 1984–1993

• V-MAX 1985–2007

Note

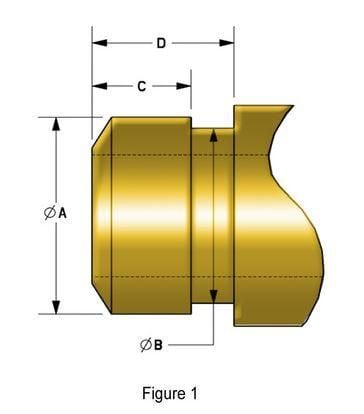

Use the provided dimensions and diagram to ensure proper valve guide fitment.
