VALVE GUIDE INTAKE, KIBBLEWHITE 96-96290, KTM SX-F250 2012

This standard intake valve guide is made from C63000 nickel-aluminium bronze and is designed for KTM SX-F 250 models from 2012 to 2013. Engineered for high-performance reliability, it offers excellent wear resistance and heat conductivity, making it suitable for demanding intake valve applications. The guide features a standard outside diameter of 0.4352″.

Features

• Made from C63000 nickel-aluminium bronze

• Designed for intake valve applications

• Standard guide diameter: 0.4352″

• High thermal conductivity and wear resistance

• Optimised to maintain airflow and structural integrity in high-heat engine environments

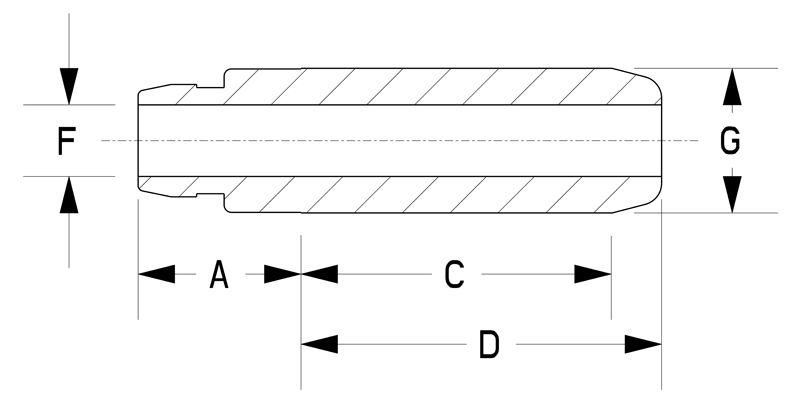

Specifications

• A: 0.475″ (12.07 mm)

• C: 1.020″ (25.92 mm)

• D: 1.335″ (33.93 mm)

• F: 0.1960″ (4.98 mm)

• G: 0.4352″ (11.06 mm)

Cross-Reference OEM Part Numbers

• Part No. 65-956+000

• Kibblewhite #96-96290

Vehicle Fitments

• KTM SX-F 250 2012–2013
