VALVE GUIDE INTAKE, KIBBLEWHITE 30-31620, HONDA CRF450R 2013-14

Part No. 65-959+000 (oro2u.com)
HONDA CRF450R 2013 – 2014,
Intake Valve Guides STD,
Kibblewhite Item #30-31620,
Intake – G (Std. 0.4365″ Inc.) C630 Bronze

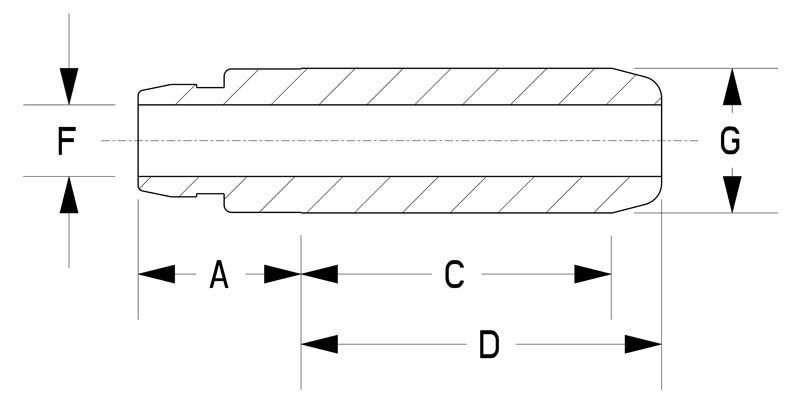

Dimensions:
A. 0.535″ (13.59mm)
B. 0.535″ (13.59mm)
C. 0.590″ (14.99mm)

D. 0.670″ (17.02mm)
E. 0.433″ (11.00mm)
F. 0.1955″ (4.97mm)
G. 0.4365″ (11.09mm)
