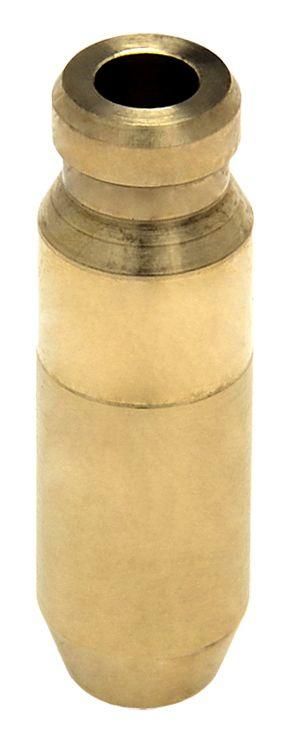

VALVE GUIDE INTAKE/EXHAUST, KIBBLEWHITE 60-60520, SUZUKI RMZ250 07-17
This standard intake and exhaust valve guide is made from C63000 nickel-aluminium bronze and is designed for Suzuki RM-Z250 models from 2007 to 2017. Known for its durability and excellent thermal conductivity, this guide is suitable for high-performance engine applications. With a standard outside diameter of 0.3778″, it is compatible with both intake and exhaust valve positions.
Features
-
Made from C63000 nickel-aluminium bronze
-
Suitable for both intake and exhaust valve applications
-
Standard guide diameter: 0.3778″
-
High wear resistance and thermal conductivity
-
Engineered for airflow efficiency and endurance in high-temperature environments

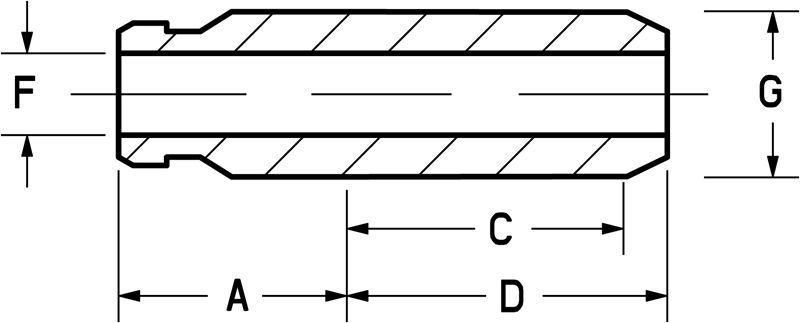

Specifications
-
A: 0.545″ (13.85 mm)
-
B: 0.545″ (13.85 mm)
-
C: 0.530″ (13.47 mm)
-
D: 0.700″ (17.79 mm)
-
E: 0.374″ (9.50 mm)
-
F: 0.1765″ (4.48 mm)
-
G: 0.3778″ (9.60 mm)
Cross-Reference OEM Part Numbers
-
Part No. 65-932+000
-
Kibblewhite #60-60520
Vehicle Fitments
-
Suzuki RM-Z250 2007–2017
