VALVE GUIDE INTAKE/EXHAUST, KIBBLEWHITE 60-60320, SUZUKI RMZ450 05-07

This standard intake and exhaust valve guide is manufactured from C63000 nickel-aluminium bronze and is designed for Suzuki RM-Z450 models from 2005 to 2006. With high resistance to wear and excellent thermal conductivity, this guide supports performance and longevity in demanding engine environments. It features a standard outside diameter of 0.4170″ and is suitable for both intake and exhaust valve positions.

Features

• Made from C63000 nickel-aluminium bronze

• Suitable for both intake and exhaust valve applications

• Standard guide diameter: 0.4170″

• High wear resistance and superior heat conductivity

• Designed for minimal impact on airflow and high-temperature durability

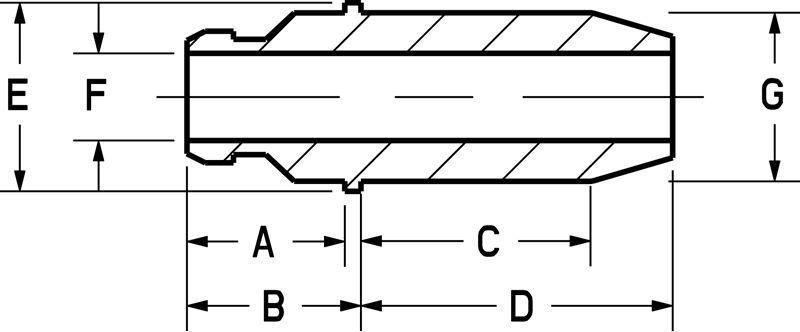

Specifications

• A: 0.375″ (9.53 mm)

• B: 0.410″ (10.42 mm)

• C: 0.580″ (14.74 mm)

• D: 0.800″ (20.33 mm)

• E: 0.460″ (11.69 mm)

• F: 0.1955″ (4.96 mm)

• G: 0.4170″ (10.60 mm)

Cross-Reference OEM Part Numbers

• Part No. 65-934+000

• Kibblewhite #60-60320

Vehicle Fitments

• Suzuki RM-Z450 2005–2006
