VALVE GUIDE INTAKE/EXHAUST, KIBBLEWHITE 60-60190

Part No. 65-958+000 (oro2u.com) Valve Guides STD.
SUZUKI RM-Z250 2004-06 EXHUAST/INTAKE

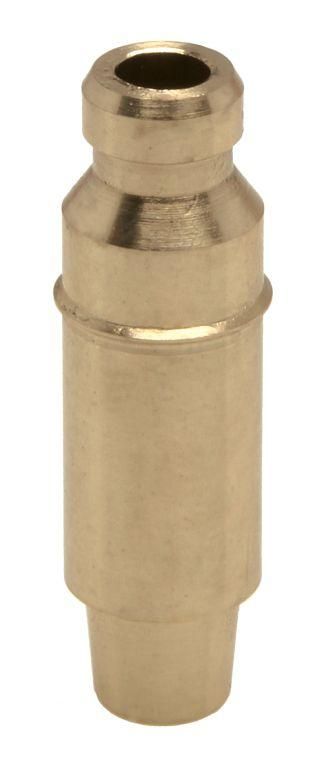

Item # 60-60190, Valve Guides for SUZUKI
Exhaust/Intake – G (Std. 0.3765″) C630 Bronze

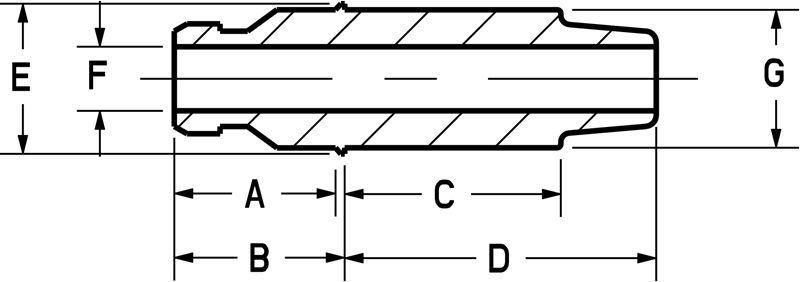

Dimensions:

A. 0.440″ (11.18mm)
B. 0.465″ (11.82mm)
C. 0.590″ (14.99mm)
D. 0.850″ (21.60mm)

E. 0.410″ (10.42mm)
F. 0.1765″ (4.48mm)
G. 0.4365″ (11.09mm)

Please call for oversize Valve Guides
