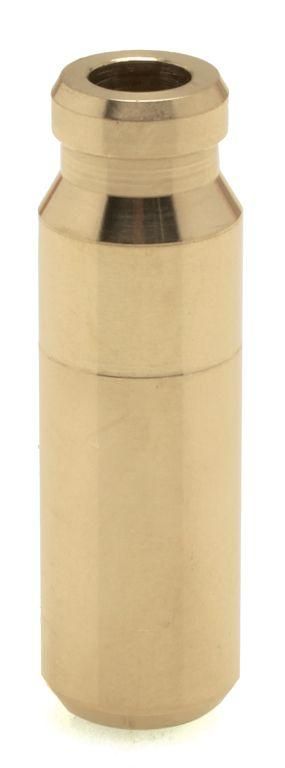

VALVE GUIDE INTAKE BRONZE STD, KIBBLEWHITE 30-30170, HONDA XR650R 00-07

Part No. 65-925+000 (oro2u.com) Valve Guides STD.
Item # 30-30170, Valve Guides for Honda XR 650R 2000-2007
Intake – G (Std. 0.4753″) C630 Bronze

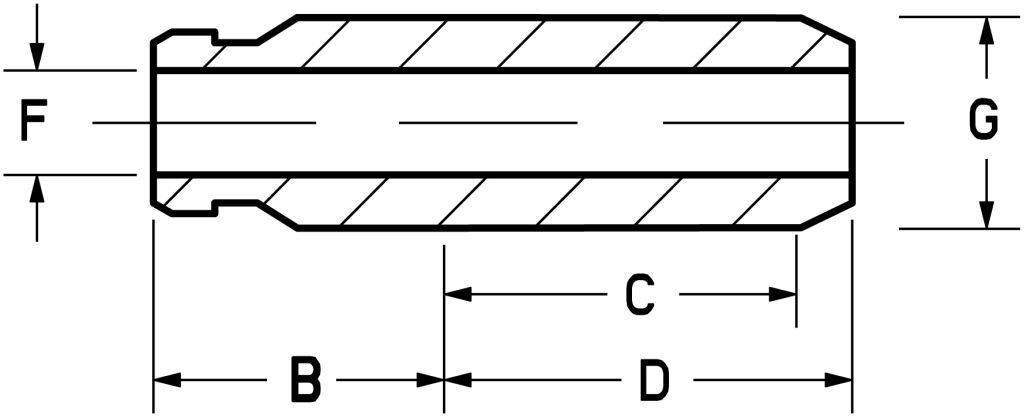

Dimensions:
A. 0.600″ (15.25mm)

B. 0.600″ (15.25mm)
C. 0.805″ (20.46mm)
D. 1.075″ (27.31mm)
E. 0.475″ (12.07mm)

F. 0.2590″ (6.58mm)
G. 0.4753″ (12.08mm)
Please call for oversize Valve Guides
+ 0.001 Inc.
+ 0.002 Inc.
