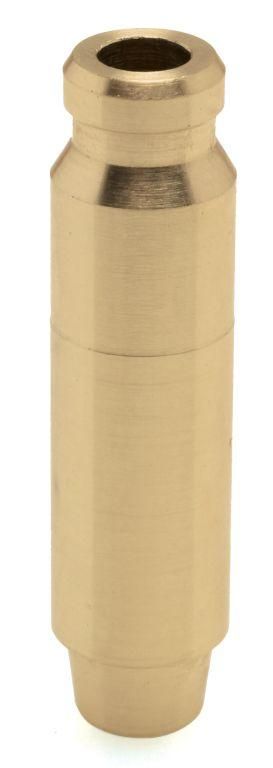

VALVE GUIDE INTAKE BRONZE STD, HONDA CRF250R 10-15, KIBBLEWHITE 30-31470
This standard intake valve guide is made from C63000 nickel-aluminium bronze and is specifically designed for Honda CRF250R models from 2010 to 2015. Engineered for high-performance applications, it delivers excellent heat conductivity and wear resistance. With a standard outside diameter of 0.3965″, it supports reliable operation under extreme engine conditions.
Features
-
Made from C63000 nickel-aluminium bronze
-
Designed for intake valve applications
-
Standard guide diameter: 0.3965″
-
Superior wear resistance and thermal conductivity
-
Engineered for efficient airflow and high-temperature endurance

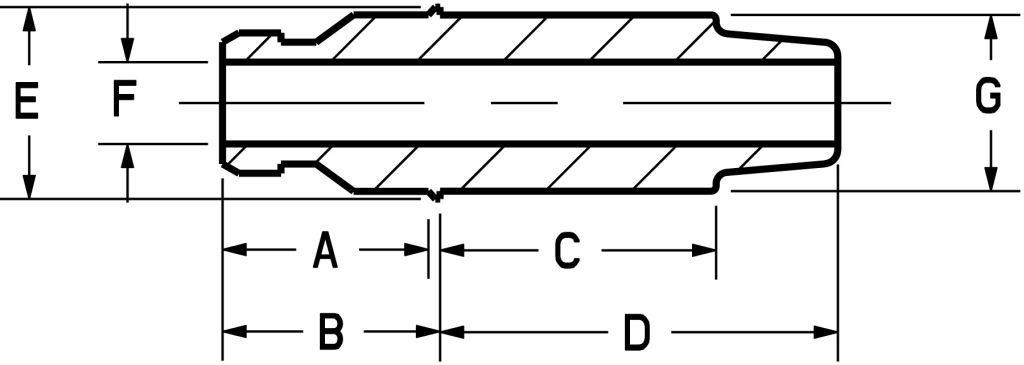

Specifications
-
A: 0.610″ (15.50 mm)
-
B: 0.610″ (15.50 mm)
-
C: 0.745″ (18.93 mm)
-
D: 0.965″ (24.53 mm)
-
E: 0.394″ (10.01 mm)
-
F: 0.1960″ (4.98 mm)
-
G: 0.3965″ (10.07 mm)
Cross-Reference OEM Part Numbers
-
Part No. 65-922+000
-
Kibblewhite #30-31470
Vehicle Fitments
-
Honda CRF250R 2010–2015
