VALVE GUIDE EXHAUST BRONZE STD, KIBBLEWHITE 96-96280
Guide, C630, EX STD, KTM®, 250, 2008-2011
KTM 250 SXF 2008-11
Kibblewhite # 93-96280 STD
Exhaust – G (Std. 0.3958 inc.) C630 Bronze

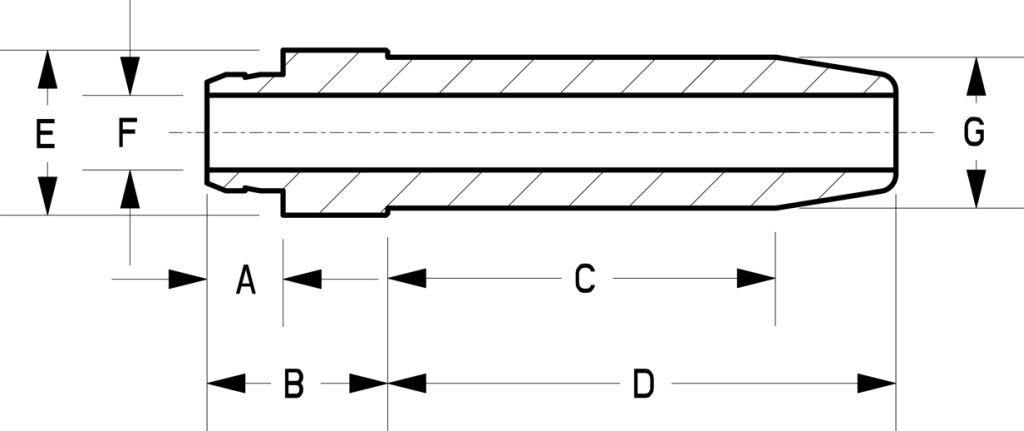

Dimensions:
A. 0.200″ (5.08mm)
B. 0.475″ (12.07mm)
C. 0.765″ (19.44mm)
D. 1.200″ (30.50mm)
E. 0.433″ (11.00mm)
F. 0.1955″ (4.96mm)
G. 0.3958″ (10.06mm)
Please call for oversize Valve Guides
We choose to use the copper based C63000 nickel-aluminum bronze as a material to make our bronze valve guides because of its ideal characteristics for the application. The 5% nickel content provides superior resistance to wear, and the approximately 80 percent copper content delivers outstanding heat conductivity. KPMI® guide profiles are designed to have minimal effect on the airstream while maintaining critical cross sectional thickness in high temperature areas, which promotes high performance and endurance.
Part No. 65-908+000 (oro2u.com) Exhaust Valve Guides STD.
