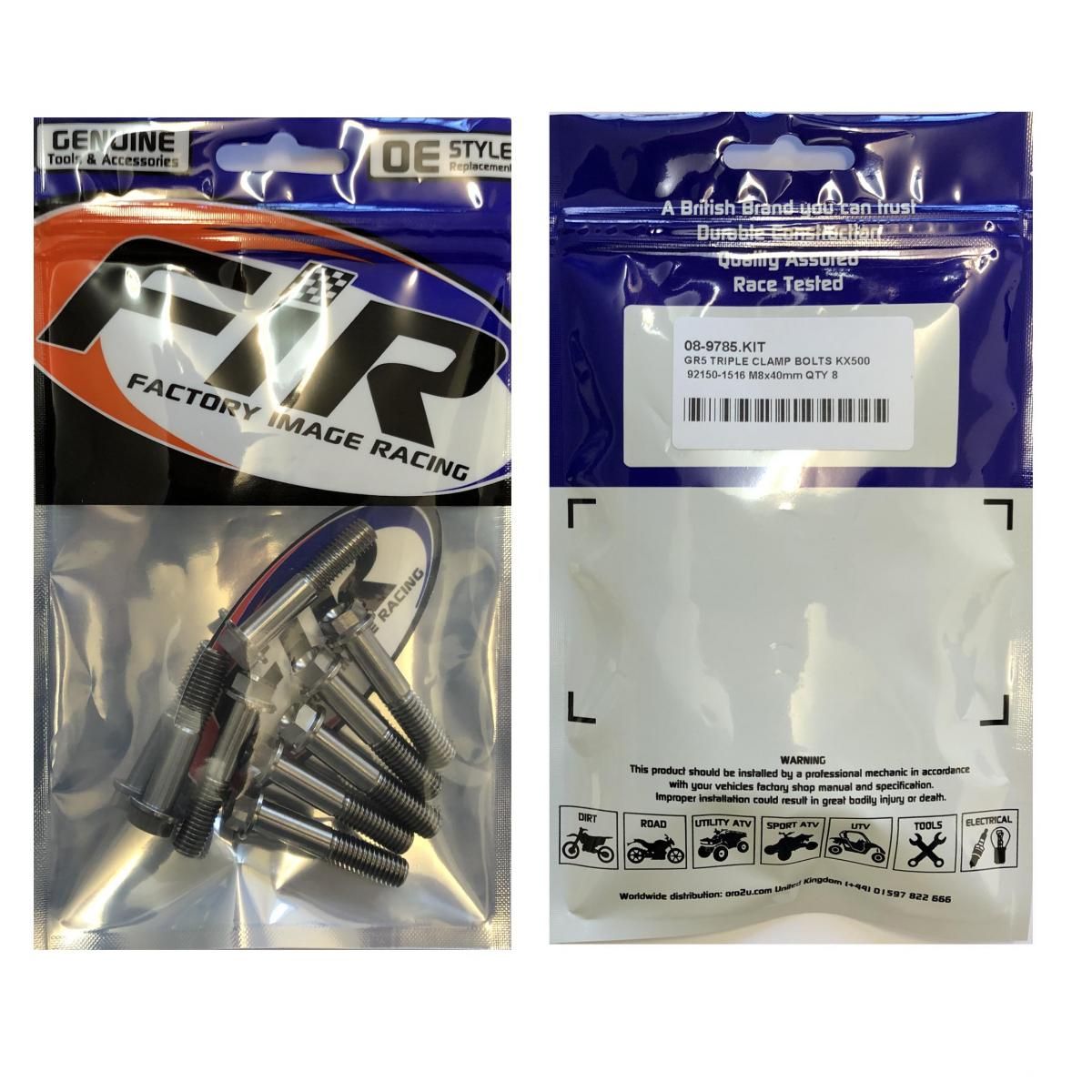

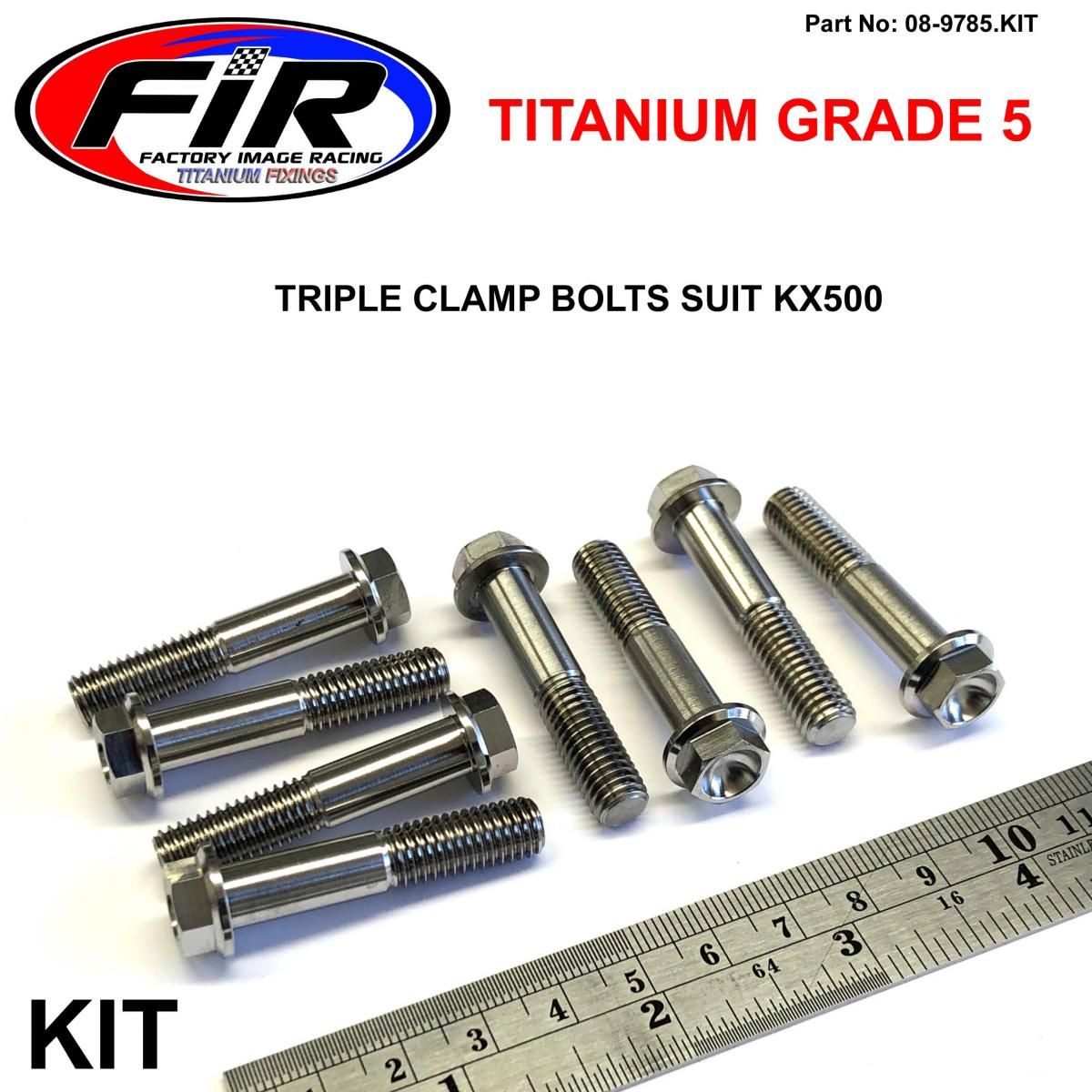

(USE PART NUMBER 08-9689.040.PK4) GR5 TRIPLE CLAMP BOLTS KX500, 92150-1516 M8x40mm QTY 8, FACTROY IMAGE RACING

TITANIUM GRADE 5 (SF) STANDARD FLANGE BOLT

KX500 250 125 1991>2004

• M8X40mm
• Material: Grade 5 (6Al/4V)
• Thread D :   M8

• Pitch P :   1.25mm
• Overall lentgh L: 40mm
• Thred lentgh : 20mm

• Head HEX: 10mm spanner
• Flange OD:14mm Standard
• Qty: 8


Cnc machined with rolled threads from super strong grade 5 titanium alloy used for its high strength super-light properties, also fantastic anti- corrosion properties. Used in every application from Motorcycles ,cycles & much more.

Cross reference numbers > 92150-1516

1991 KDX250 (KDX250-D1) – Front Fork (Kdx250-D1)
      1991 KX500 (KX500-E3) – Front Fork (Kx500-E3)
      1992 KDX250 (KDX250-D2) – Front Fork@ (Kdx250-D2/D3/D4)
      1992 KX125 (KX125-J1) – Front Fork
      1992 KX250 (KX250-J1) – Front Fork
      1992 KX500 (KX500-E4) – Front Fork (Kx500-E4/E5)
      1993 KDX200 (KDX200-E5) – Front Fork (Kdx200-E5/E6)
      1993 KDX250 (KDX250-D3) – Front Fork@ (Kdx250-D2/D3/D4)
      1993 KLX650 (KLX650-A1) – Front Fork
      1993 KLX650 (KLX650-C1) – Front Fork
      1993 KX125 (KX125-J2) – Front Fork
      1993 KX250 (KX250-J2) – Front Fork
      1993 KX500 (KX500-E5) – Front Fork (Kx500-E4/E5)
      1994 KDX200 (KDX200-E6) – Front Fork (Kdx200-E5/E6)
      1994 KDX250 (KDX250-D4) – Front Fork@ (Kdx250-D2/D3/D4)
      1994 KLX250R (KLX250-D2) – Front Fork
      1994 KLX650 (KLX650-A2) – Front Fork
      1994 KLX650 (KLX650-C2) – Front Fork
      1994 KX125 (KX125-K1) – Front Fork
      1994 KX250 (KX250-K1) – Front Fork
      1994 KX500 (KX500-E6) – Front Fork (Kx500-E6/E7)
      1995 KLX250R (KLX250-D3) – Front Fork
      1995 KLX650 (KLX650-A3) – Front Fork
      1995 KLX650 (KLX650-C3) – Front Fork
      1995 KX125 (KX125-K2) – Front Fork
      1995 KX250 (KX250-K2) – Front Fork
      1995 KX500 (KX500-E7) – Front Fork (Kx500-E6/E7)
      1996 KLX250R (KLX250-D4) – Front Fork
      1996 KLX650 (KLX650-C4) – Front Fork
      1996 KLX650R (KLX650-D1) – Front Fork
      1996 KX125 (KX125-K3) – Front Fork
      1996 KX250 (KX250-K3) – Front Fork
      1996 KX500 (KX500-E8) – Front Fork (Kx500-E8)
      1997 KLX300R (KLX300-A2) – Front Fork
      1997 KX125 (KX125-K4) – Front Fork
      1997 KX250 (KX250-K4) – Front Fork
      1997 KX500 (KX500-E9) – Front Fork
      1998 KLX300R (KLX300-A3) – Front Fork
      1998 KX125 (KX125-K5) – Front Fork
      1998 KX250 (KX250-K5) – Front Fork
      1998 KX500 (KX500-E10) – Front Fork
      1999 KLX300R (KLX300-A4) – Front Fork
      1999 KX125 (KX125-L1) – Front Fork
      1999 KX250 (KX250-L1) – Front Fork
      1999 KX500 (KX500-E11) – Front Fork
      2000 KLX300R (KLX300-A5) – Front Fork
      2000 KX125 (KX125-L2) – Front Fork
      2000 KX250 (KX250-L2) – Front Fork
      2000 KX500 (KX500-E12) – Front Fork
      2001 KLX300R (KLX300-A6) – Front Fork
      2001 KX500 (KX500-E13) – Front Fork
      2002 KLX300R (KLX300-A7) – Front Fork
      2002 KX500 (KX500-E14) – Front Fork
      2003 KLX300R (KLX300-A8) – Front Fork
      2003 KX500 (KX500-E15) – Front Fork
      2004 KLX300R (KLX300-A9) – Front Fork
      2004 KX500 (KX500-E16) – Front Fork
      2005 KLX300R (KLX300-A10) – Front Fork
      2006 KLX250 (KLX250H6F) – Front Fork (H6f)
      2006 KLX300R (KLX300A6F) – Front Fork (A6f)
      2007 KLX250 (KLX250H7F) – Front Fork (H7f)
      2007 KLX300R (KLX300A7F) – Front Fork (A7f)
