| Product Type | Connecting Rod |
|---|---|
| Product Group | Crankshafts & Parts |
| Catalogue | DIRT |
| Alternate SKU's | 56-131.AAA |

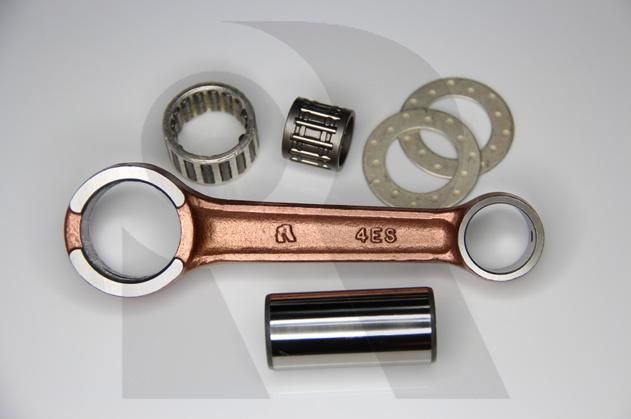

USE 56-131.AAA SAME ……… CONNECTING ROD 82-92 YZ80, YAMAHA, YZ80 1982 – 1983, YZ80 1986 – 1992
YAMAHA
YZ80 82-92,
,
Note. Please check the sizes before ordering.
CONNECTING CONROD ROD REBUILD KIT.
– OE replacement connecting rods.
– Certified Chorme alloy steel provides superior strength.
– Crankpins are manufactured from hot-rolled ASTM steel and case hardened.
– oro2u Rods uses the latest in caged needle roller bearing designs for high rpm longevity.
– Thrust washers are manufactured from bronze phosphor and are silver coated.
– Rod assembly sold complete with rod, crankpin, crankpin bearing, top end bearing and thrust washers if need.
– Fully Compatible with after market and OE crankshafts.
– Material SNCM220,
– Best value for money
– ORO products are a high quality replacement part and carries our guarantee of your satisfaction.
– Please check the image before ordering to avoid mistakes.
|
SIZE |
MM |
|
Centre 2 Centre |
96.00 |
|
Small End Bearing |
14x18x15.65 |
|
Small End Bore Ø |
18 |
|
Small End Width |
14 |
|
Big End Bearing |
20x26x13.80 |
|
Big End Bore Ø |
26 |
|
Big End Width |
14 |
|
Big End Pin Ø |
20 |
|
Big End Pin Length |
43.75 |
|
Washer Thickness |
20x33x1 |
Part No. 56-131 (oro2u.com)
Cross reference numbers ONLY.
Prox 03-2016, 2JG, RY-2201
Yamaha Con Rod Kit YZ 80 J 5X2 1982 Yamaha Con Rod Kit YZ 80 A 3MK 3MM 1990 Yamaha Con Rod Kit YZ 80 B 3ML3 1991 Yamaha Con Rod Kit YZ 80 D 3ML4 1992 Yamaha Con Rod Kit YZ 80 J 5X2 1982 Yamaha Con Rod Kit YZ 80 K 22W 1983 Yamaha Con Rod Kit YZ 80 L 43K 39K 1984 Yamaha Con Rod Kit YZ 80 N 58T 1985
