| Product Type | Universal Joint |
|---|---|
| Product Group | Axles & Driveshafts |
| Catalogue | ATV |
UNIVERSAL JOINT POLARIS, BRONCO AT-08502 ATV502
ATV Universal Joint Spider – Part No. 17-3312_BR
Overview: The ATV Universal Joint Spider is designed to meet exacting specifications and is interchangeable with OEM parts. Manufactured in a SO-9000 certified facility, it provides a durable and cost-effective alternative to expensive OEM joints.

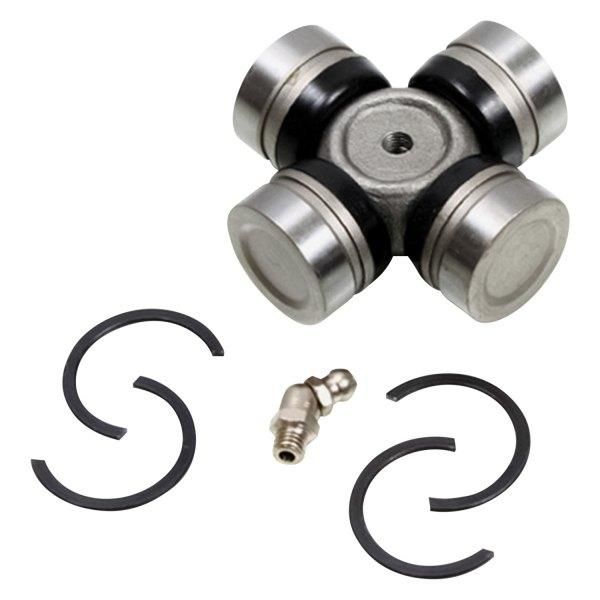

Contents:
- Spider
- 4 Bearings
- Circlips
- Grease Zerk
Specifications:
- Diameter (D): 27mm
- Width (W): 47.2mm
Cross Reference Numbers:
- MOTO MASTER: ATV502
- EPI: WE100995
- ALLBALLS: 19-1012
- BRONCO: AT-08502
Applications:

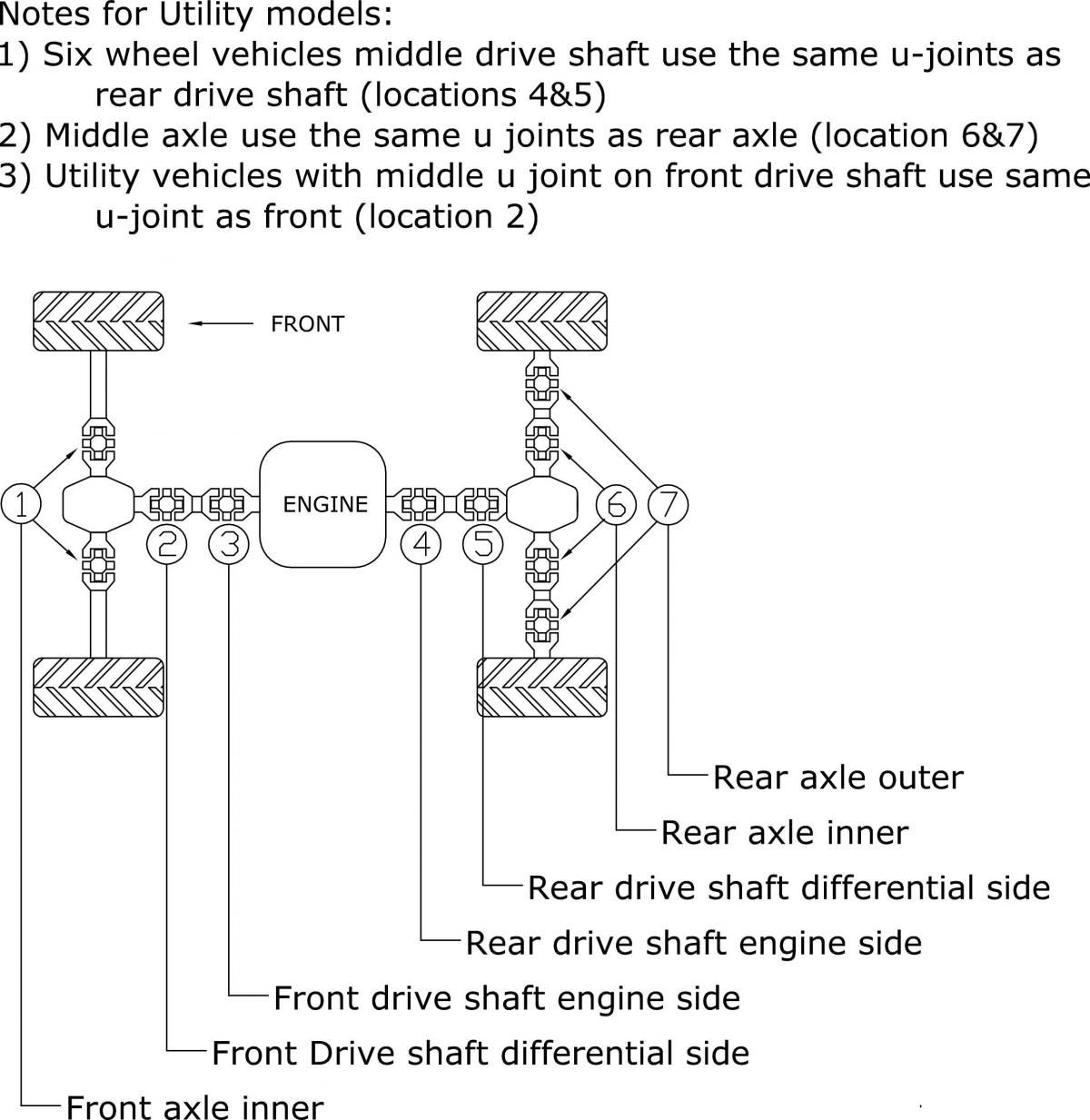

U-Joint, Rear Axle, Inner (Ref 6):
Polaris:
- Ranger 4×4 500 (1999-2004)
- Ranger 6×6 500 (2004)
- Ranger Series 10 4×4 & 6×6 (2007)
U-Joint, Rear Axle, Outer (Ref 7):
Polaris:
- Diesel 455 4×4 (Built After 9/98, 1999)
- Diesel 455 4×4 (Built Before 9/98, 1999)
- Ranger 4×4 500 (1999-2004)
- Ranger 6×6 500 (2004)
- Ranger Series 10 4×4 & 6×6 (2007)
- Sportsman 335 (1999-2000)
- Sportsman 500 4×4 (1996-1998)
- Worker 335 (1999)
- Xplorer 500 (1997)
Compatible Models:
- Polaris Diesel (455cc): 1999
- Polaris Ranger 6×6 500: 2004-2005
- Polaris Sportsman 335: 1999-2000
- Polaris Sportsman 500 4×4: 1996-1998
- Polaris Worker 335: 1999
- Polaris Xplorer 500 4×4: 1997
Note: The ATV Universal Joint Spider is a reliable and affordable choice for maintaining your Polaris ATV or UTV. Ensure compatibility by comparing the size and specifications with your current joint before purchasing.
