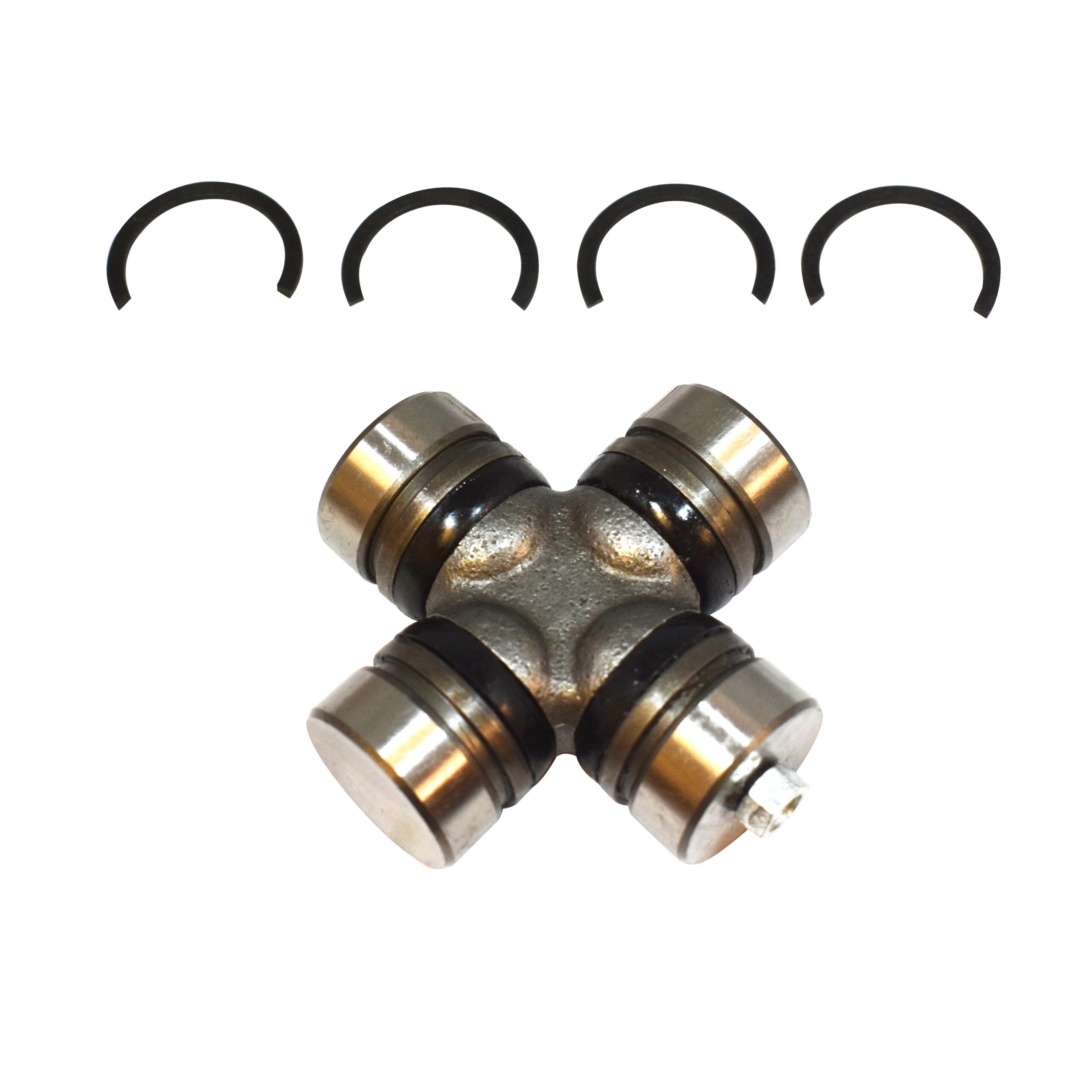

UNIVERSAL JOINT KAWASAKI, BRONCO AT-08514 ATV704

UNIVERSAL UV U-JOINT KITS
Manufacturer: BRONCO
Part Number: AT-08514

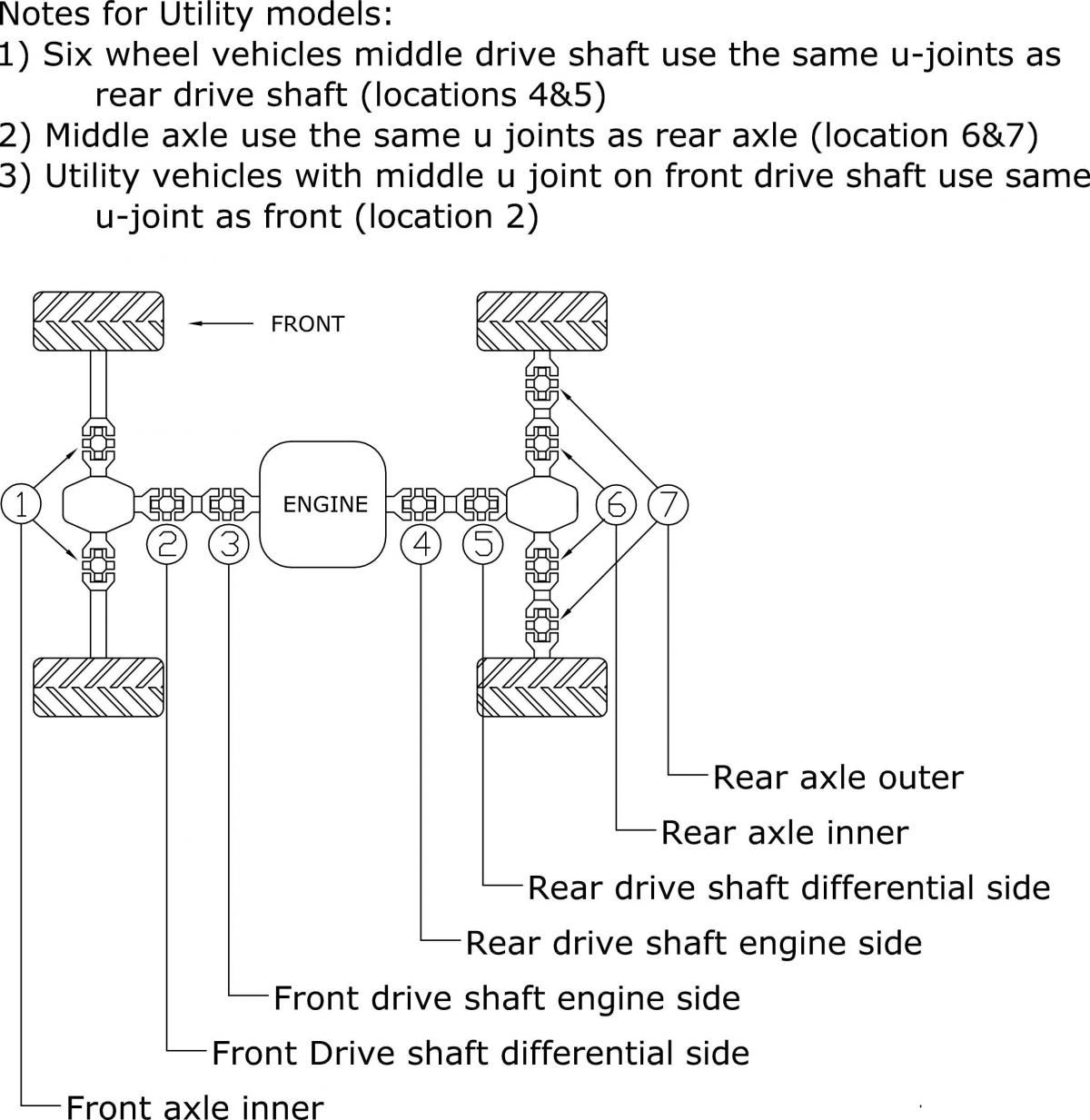

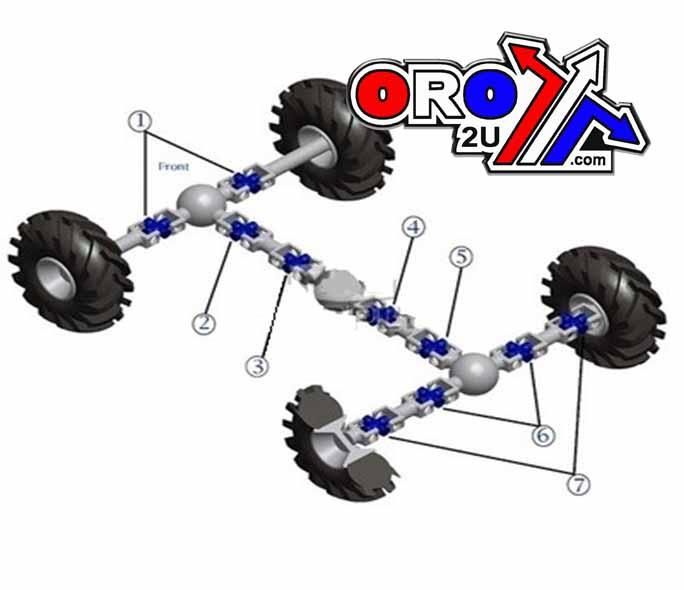

U-Joint, Front Axle-Inner (Ref 1)
Kawasaki:

• Mule 2510 4×4 (1993-1999)

U-Joint, Front Drive Shaft-Diff Side (Ref 2)
Kawasaki:

• TERYX 4 4×4 (2012-2013)
• TERYX 4 4×4 800 (2014-2018)
• TERYX 4×4 800 (2014-2018)

U-Joint, Front Drive Shaft-Eng Side (Ref 3)
Kawasaki:

• MULE PRO-DX (2016-2018)
• MULE PRO-DXT (2016-2018)
• MULE PRO-FX 800 (2015-2018)
• MULE PRO-FXT 800 (2015-2018)
• TERYX 4 4×4 (2012-2013)
• TERYX 4 4×4 800 (2014-2018)
• TERYX 4×4 800 (2014-2018)

U-Joint, Rear Axle, Inner (Ref 6)
Kawasaki:

• Mule 2500 (1994-2000)
• Mule 2510 4×4 (1993-2000)
• Mule 2510 Diesel (2000-2002)
• Mule 2520 (1993-2000)
• Mule 3000 (2001-2008)
• Mule 3010 4×4 (2001-2008)
• Mule 3010 Diesel (2001-2008)
• Mule 3020 (2001-2003)
• Mule 4000 (2009-2018)
• Mule 4010 4×4 (2009-2018)
• Mule 4010 4×4 Diesel (2009-2013)

U-Joint, Rear Axle, Outer (Ref 7)
Kawasaki:

• Mule 2500 (1994-2000)
• Mule 2510 4×4 (1993-2000)
• Mule 2510 Diesel (2000-2002)
• Mule 2520 (1993-2000)
• Mule 3000 (2001-2008)
• Mule 3010 4×4 (2001-2008)
• Mule 3010 Diesel (2001-2008)
• Mule 3020 (2001-2003)
• Mule 4000 (2009-2018)
• Mule 4010 4×4 (2009-2018)
• Mule 4010 4×4 Diesel (2009-2013)

Specifications:

• 25mm diameter / 45mm wide with inside snap rings
• U-Joints are cold forged from SCM-415 steel
• Precision ground journals are case hardened to HRC58-61
• Pre-greased with hi-temp Lithium Complex 3 grease
• Zerk and grease channels in bearing cup evenly distribute grease
• Includes cap plug to eliminate grease zerk for low clearance applications
• Honda yoke assemblies have upgraded cross diameters from 17mm to 19mm and feature stainless steel clamps and hi-quality neoprene rubber boots for long life and abrasion resistance.

Cross Reference Numbers Only:

• ALLBALLS 19-1009
• ATV704

Rear axle inner and outer only for the following models:
Kawasaki:

• KAF620C Mule 2500 (1994-2000)
• KAF620A Mule 2510 4×4 (1997-2000)
• KAF620B Mule 2520 (1993-2000)
• KAF620G Mule 3000 (2001-2008)
• KAF620E/H Mule 3010 4×4 (2001-2008)
• KAF620P Mule 4000 (2009-2012)
• KAF620R/S Mule 4010 4×4 (2009-2012)
• KAF950A Mule 2510 Diesel (2000-2002)
• KAF950B Mule 3010 Diesel (2003-2006)
• KAF950G Mule 4010 4×4 Diesel (2010-2012)

Front axle inner and Rear axle inner and outer for the following models:
Kawasaki:

• KAF620A Mule 2510 4×4 (1993)
