UNIVERSAL JOINT CAN-AM, BRONCO AT-08529 715-9004-02

ATV Universal U-Joint Spider – Bronco AT-08529

Features:

• Construction: High-quality product manufactured by a SO-9000 facility, ensuring durability and precision.

Components Included:

• Spider
• 4 bearings
• Circlips (C-clips)
• Grease zerk (90-degree)
• Cap plug

Specifications:

• Size A: 22.05 mm
• Size B: 55.3 mm
• C-Clips Size: 1.1 x 23.6 mm
• Grease Nipple: 90-degree angle
• Plug Included: Yes

Part Number: 17-3325.BR (Available at oro2u)

Cross Reference Numbers:

• 715-9004-02
• ALLBALLS 19-1008

Applications:

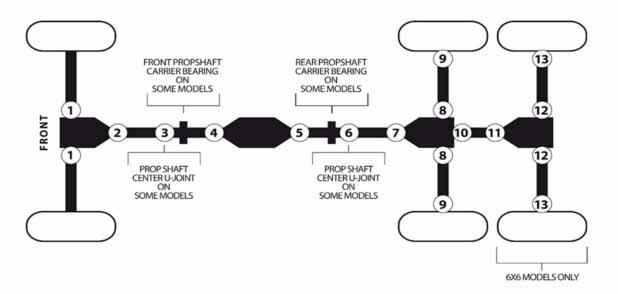

1. U-Joint for Front Prop Shaft – Front & Rear (Ref# 2, 4):

Can-Am:

Commander 1000 Series:

• DPS 2016-2018
• LTD 2016-2018
• STD 2011-2018
• XT 2016-2018
• XTP 2014-2017

Commander 800 Series:

• DPS 2013-2018
• LTD 2016
• STD 2011-2018
• XT 2011-2018
• XTP 2016

Commander MAX 1000 Series:

• DPS 2018
• LTD 2018
• STD 2015-2018
• XT 2018

Defender 1000 Series:

• 2016-2018
• DPS Built After 11/2016 (17)
• DPS Built Before 11/2016 (17)
• XMR 2018
• XT 2016-2018
• XTP 2018

Defender 800 Series:

• 2016-2018
• DPS Built After 11/2016 (17)
• DPS Built Before 11/2016 (17)
• XT 2016-2018

Maverick 1000 Series:

• STD 2013-2018
• TURBO 2016-2017
• TURBO XDS 2015-2016
• TURBO XRS 2016
• XC 2016-2017
• XDS 2015-2016
• XMR 2014-2018
• XRS 2013-2015
• XXC 2014-2017

Maverick MAX 1000 Series:

• STD 2014-2018
• TURBO 2016-2017
• TURBO XDS 2015-2017
• TURBO XRS 2016-2017
• XC/XXC 2016

Maverick Trail 1000 Series:

• 2018

Maverick X3 Series:

• Various models including TURBO, TURBO R, and XDS from 2017-2018

Outlander Series:

• 450 EFI (DPS) 2016-2018
• 570 EFI (DPS) 2016-2017
• Various other models from 2006-2018

2. U-Joint for Front Axle – Inner (Ref 1):

Polaris:

• 300 4×4 (95)
• 350L 4×4 (93)
• Various models from 1993-2002 including Big Boss, Diesel, Magnum, Scrambler, Sportsman, Worker, and Xplorer series.

3. U-Joint for Front Drive Shaft – Differential Side (Ref 2):

• Can-Am Commander Series: Similar to the applications listed under “Front Prop Shaft.”

4. U-Joint for Front Drive Shaft – Engine Side (Ref 3):

• Can-Am Commander Series: Similar to the applications listed under “Front Prop Shaft.”

5. U-Joint for Rear Drive Shaft – Differential Side (Ref 5):

Can-Am Outlander Series:

• 330, 400 (2003-2015)
• Various MAX models.

6. U-Joint for Rear Drive Shaft – Engine Side (Ref 4):

• Can-Am Outlander Series: Similar to the applications listed under “Rear Drive Shaft – Differential Side.”
