TITANIUM GR5 SPROCKET BOLT SET/6, M8x35 OVER SIZE SPROCKET BOLTS, /
£40.26
Stock: 84
| Product Group | Nuts & Bolts |
|---|---|
| Alternate SKU's | 08-372, 08-372.CC, 1083-014, M8x35 CSK |
| Product Type | Sprocket Bolt |
| Catalogue | ATV, DIRT, ROAD, TOOLS |
TITANIUM GR5 SPROCKET BOLT SET/6, M8x35 OVER SIZE SPROCKET BOLTS, /
Factory Image Racing> Giving your machine the Factory look!

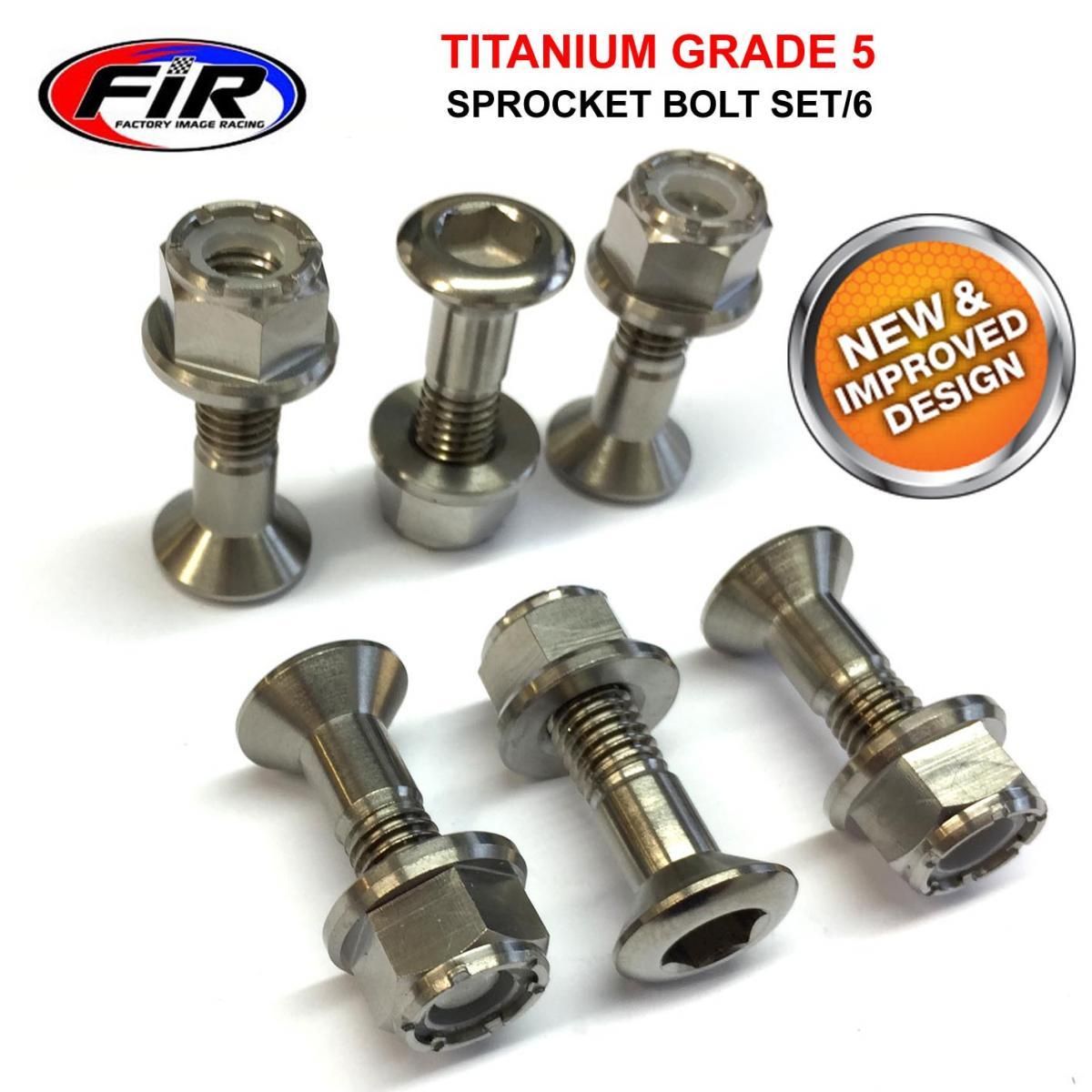

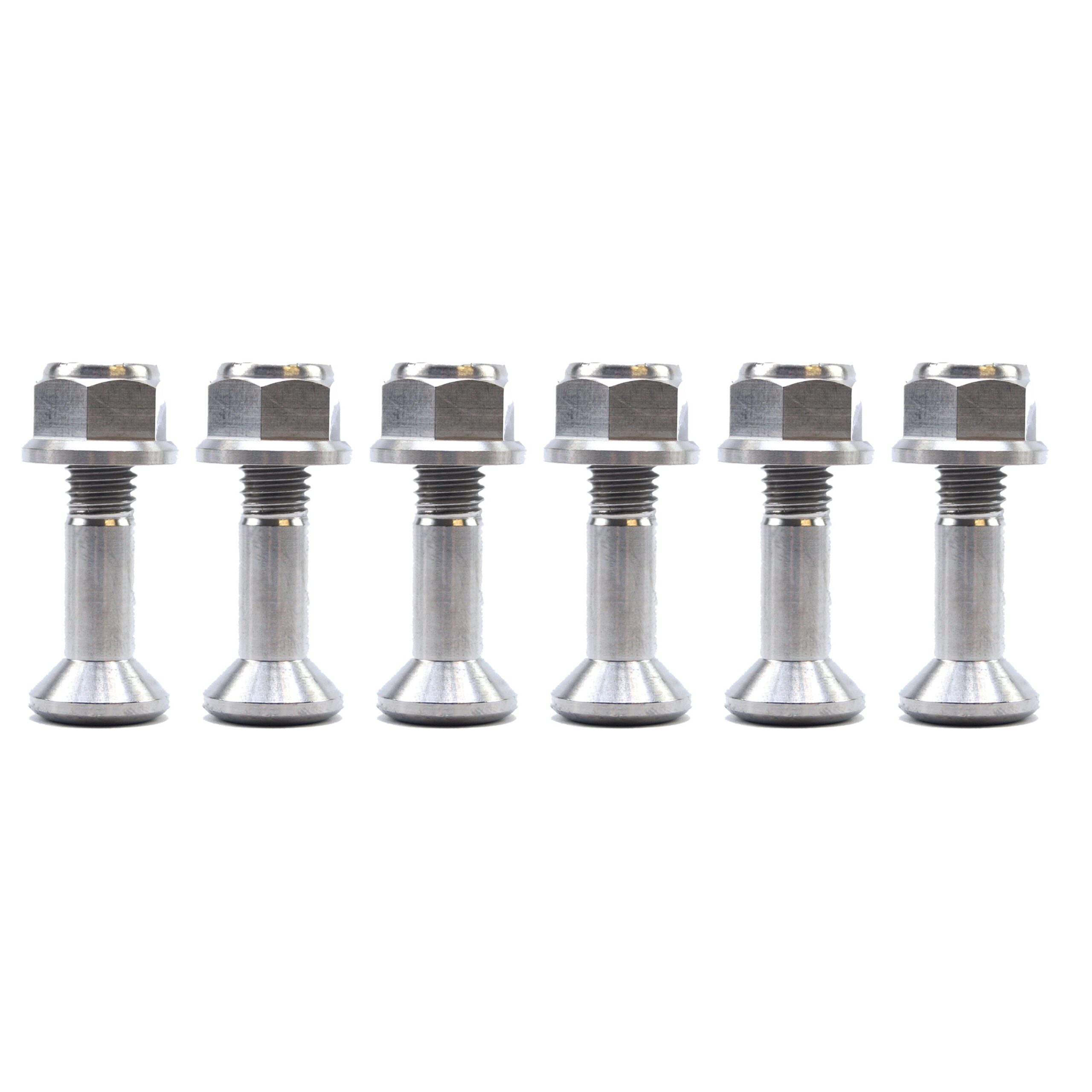

TITANIUM GRADE 5 SPROCKET BOLT SET OF 6
M8x35 OVER SIZE SPROCKET BOLTS
BOLT INFORMATION
- BOLT QTY: 6
- Material: Grade 5 (6Al/4V)
- Thread D : M8
- Pitch P : 1.25mm
- Overall length L: 36.50mm
- CSK head L : 6.50mm
- Shank length : 15.00mm
- Thread length : 15.00mm
- Head Allen: 8mm Allen key
NUT INFORMATION
- NUT QTY: 6
- Material: Grade 5 (6Al/4V)
- Thread D : M8
- Pitch P : 1.25mm
- Overall height: 10.50mm
- Flange OD: 17.00mm
- Head HEX: 13mm Spanner Size
- Lock type : White Nylon
CNC machined with rolled threads from super strong grade 5 titanium alloy used for its high strength super-light properties, also fantastic anti- corrosion properties. Used in every application from Motorcycles ,cycles & much more.
Part No. 08-9602.35.KIT (oro2u.com)
Cross reference numbers >
