TITANIUM GR5 BOLT M8 x 60mm EACH, FLANGE OD: 14mm / HEX SIZE: 10mm, /
TITANIUM GR5 BOLT M8 x 60mm EACH, FLANGE OD: 14mm / HEX SIZE: 10mm, / - Image 2
TITANIUM GR5 BOLT M8 x 60mm EACH, FLANGE OD: 14mm / HEX SIZE: 10mm, / - Image 3
TITANIUM GR5 BOLT M8 x 60mm EACH, FLANGE OD: 14mm / HEX SIZE: 10mm, / - Image 4
TITANIUM GR5 BOLT M8 x 60mm EACH, FLANGE OD: 14mm / HEX SIZE: 10mm, / - Image 5

TITANIUM GR5 BOLT M8 x 60mm EACH, FLANGE OD: 14mm / HEX SIZE: 10mm, /

£7.64

Factory Image Racing Titanium
Factory Image Racing Titanium
SKU: 08-9604.0060.SF

Brand: Factory Image Racing Titanium

Stock: 33

33 in stock

Categories: ,
Size

M8 x 60mm
Product Type

Bolt – Flange
Product Group

Nuts & Bolts
Catalogue

ATV, DIRT, ROAD, TOOLS
General Material

Titanium

TITANIUM GR5 BOLT M8 x 60mm EACH, FLANGE OD: 14mm / HEX SIZE: 10mm, /

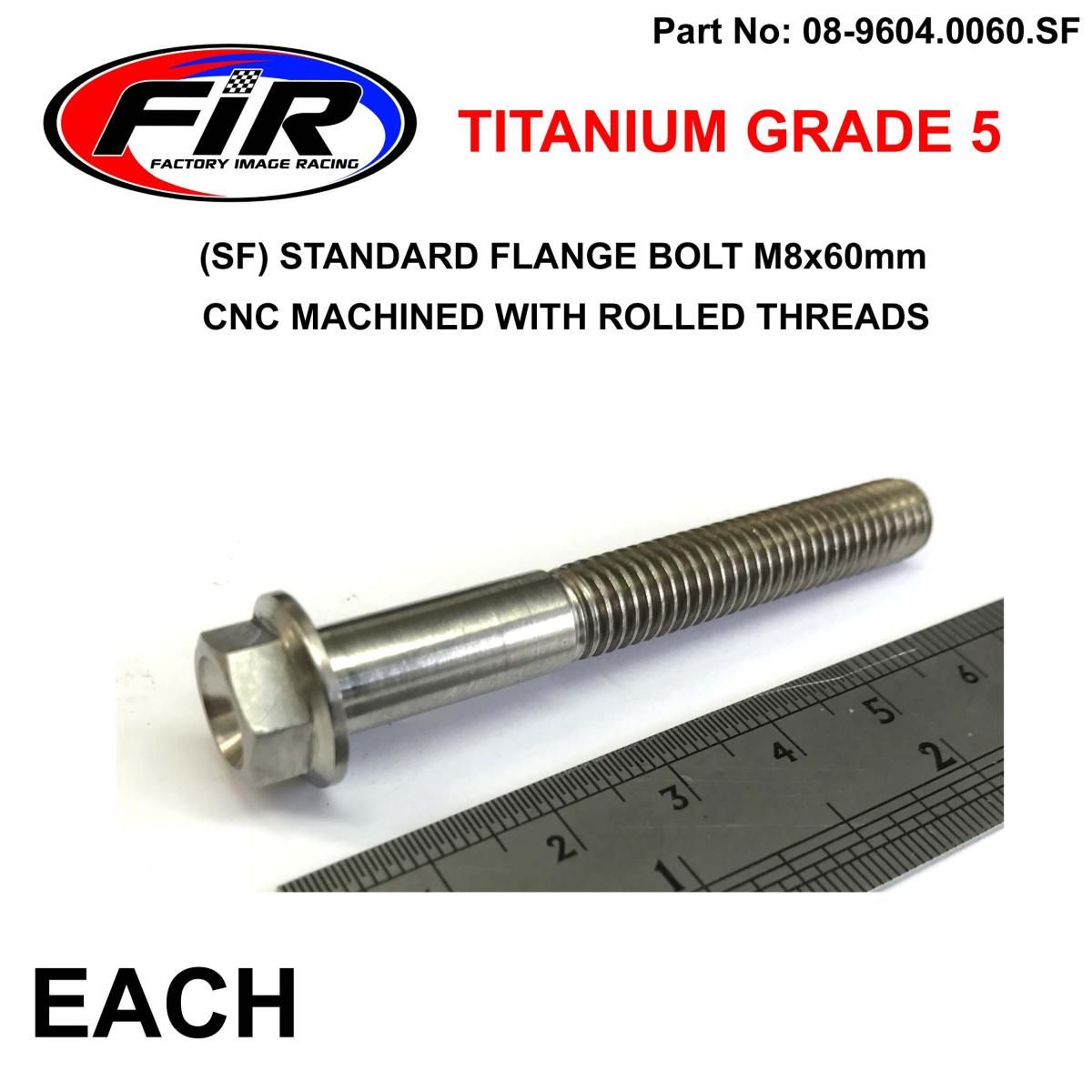

TITANIUM GRADE 5 (SF) STANDARD FLANGE BOLT

  • M8X60mm
  • Material: Grade 5 (6Al/4V)
  • Thread D :   M8
  • Pitch P :   1.25mm
  • Overall length L: 60mm
  • Thred length : 40mm
  • Head HEX: 10mm spanner
  • Flange OD:14mm Standard

Cnc machined with rolled threads from super strong grade 5 titanium alloy used for its high strength super-light properties, also fantastic anti- corrosion properties. Used in every application from Motorcycles ,cycles & much more.

Part No. 08-9604.060.SF (oro2u.com)

Cross reference numbers >
