TITANIUM GR5 BOLT M8 x 40mm EACH, FLANGE OD: 14mm / HEX SIZE: 10mm, /
TITANIUM GR5 BOLT M8 x 40mm EACH, FLANGE OD: 14mm / HEX SIZE: 10mm, / - Image 2
TITANIUM GR5 BOLT M8 x 40mm EACH, FLANGE OD: 14mm / HEX SIZE: 10mm, / - Image 3
TITANIUM GR5 BOLT M8 x 40mm EACH, FLANGE OD: 14mm / HEX SIZE: 10mm, / - Image 4

TITANIUM GR5 BOLT M8 x 40mm EACH, FLANGE OD: 14mm / HEX SIZE: 10mm, /

£6.48

Factory Image Racing Titanium
Factory Image Racing Titanium
SKU: 08-9604.0040.SF

Brand: Factory Image Racing Titanium

Stock: 175

175 in stock

Categories: ,
Size

M8 x 40mm
Product Type

Bolt – Flange
Product Group

Nuts & Bolts
Catalogue

ATV, DIRT, ROAD, TOOLS
General Material

Titanium

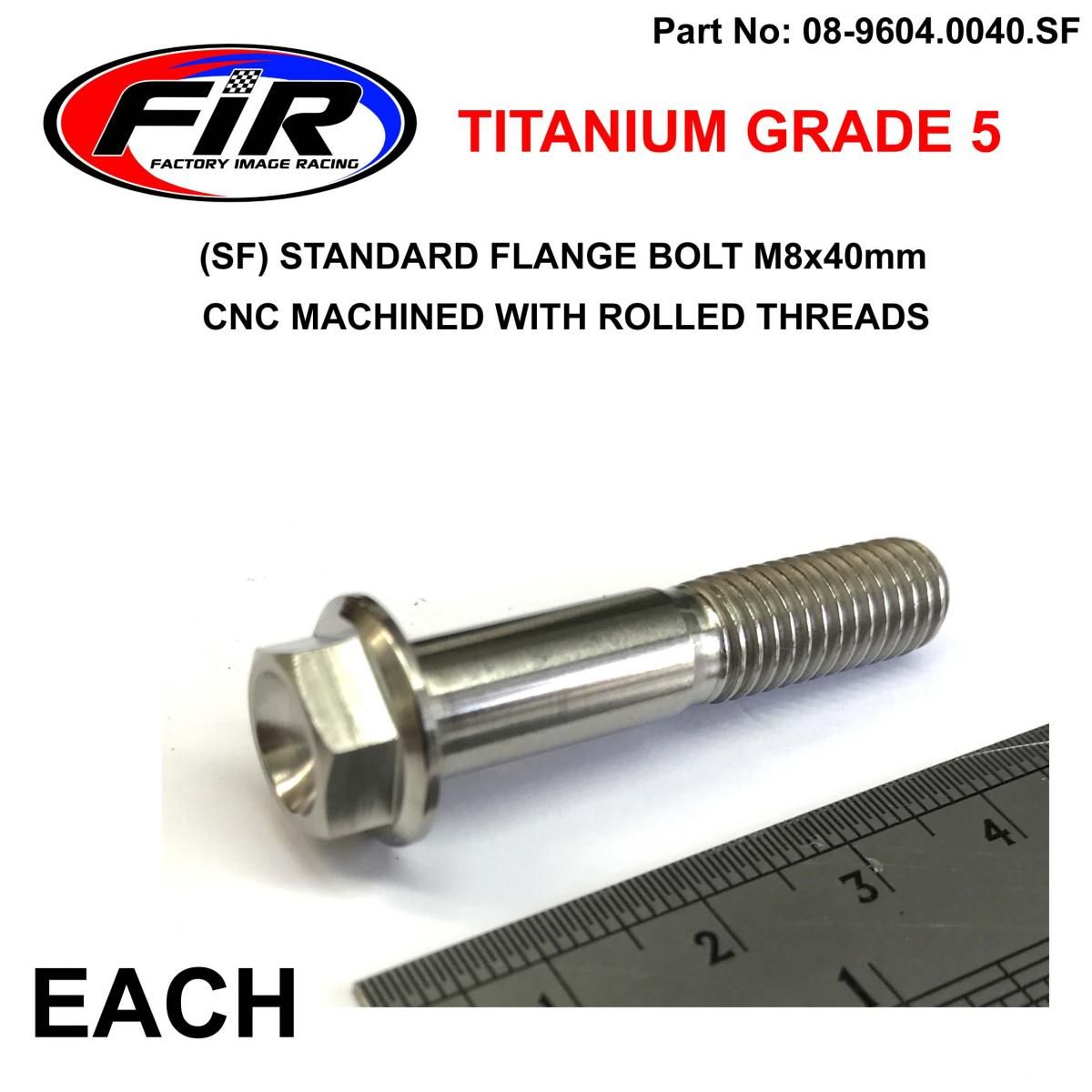

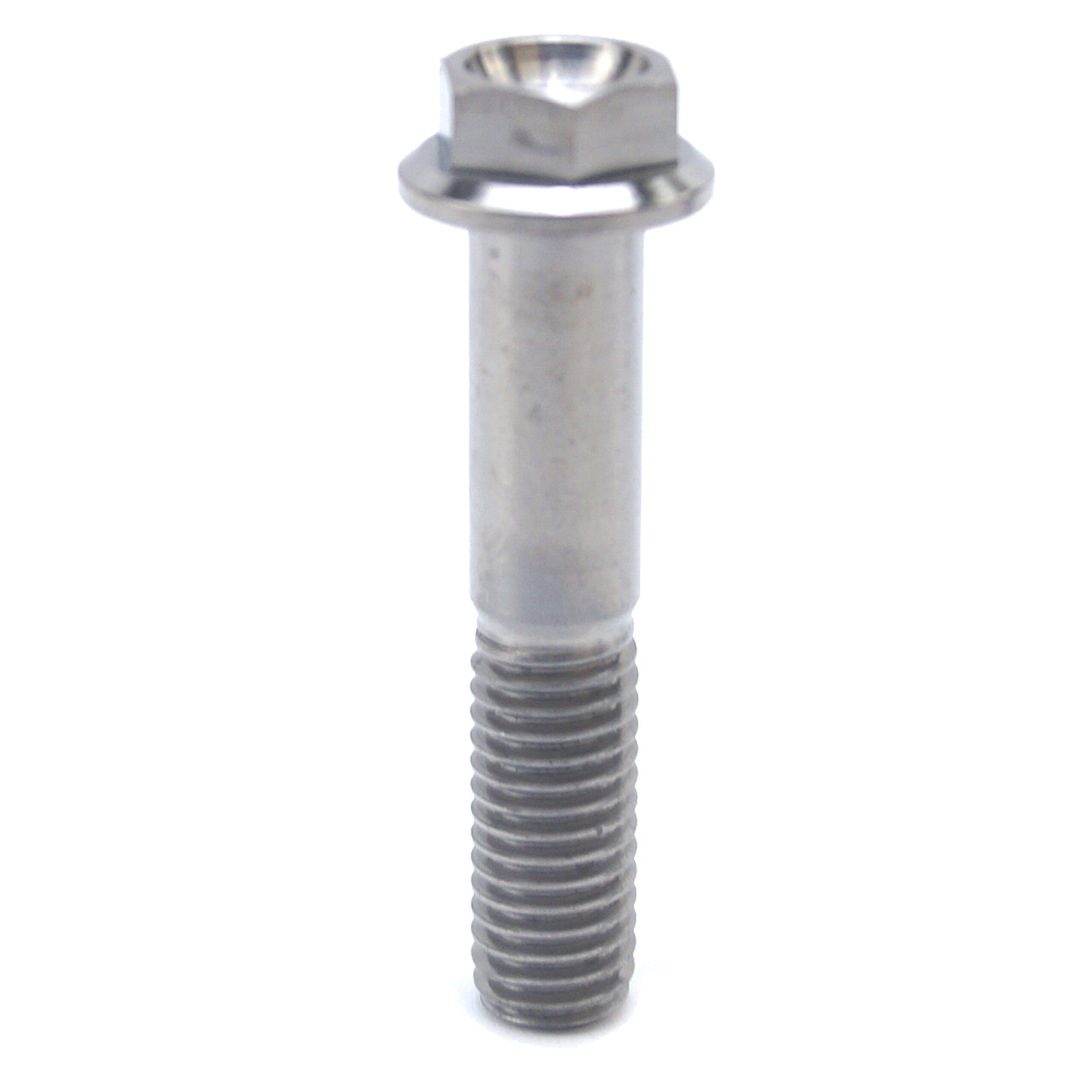

TITANIUM GR5 BOLT M8 x 40mm EACH, FLANGE OD: 14mm / HEX SIZE: 10mm, /

TITANIUM GRADE 5 (SF) STANDARD FLANGE BOLT

  • M8X40mm
  • Material: Grade 5 (6Al/4V)
  • Thread D :  M8
  • Pitch P :  1.25mm
  • Overall length L: 40mm
  • Thread length : 20mm
  • Head HEX: 10mm spanner
  • Flange OD:14mm Standard

Cnc machined with rolled threads from super strong grade 5 titanium alloy used for its high strength super-light properties, also fantastic anti- corrosion properties. Used in every application from Motorcycles ,cycles & much more.

Part No. 08-9604.040.SF (oro2u.com)

Cross reference numbers >
