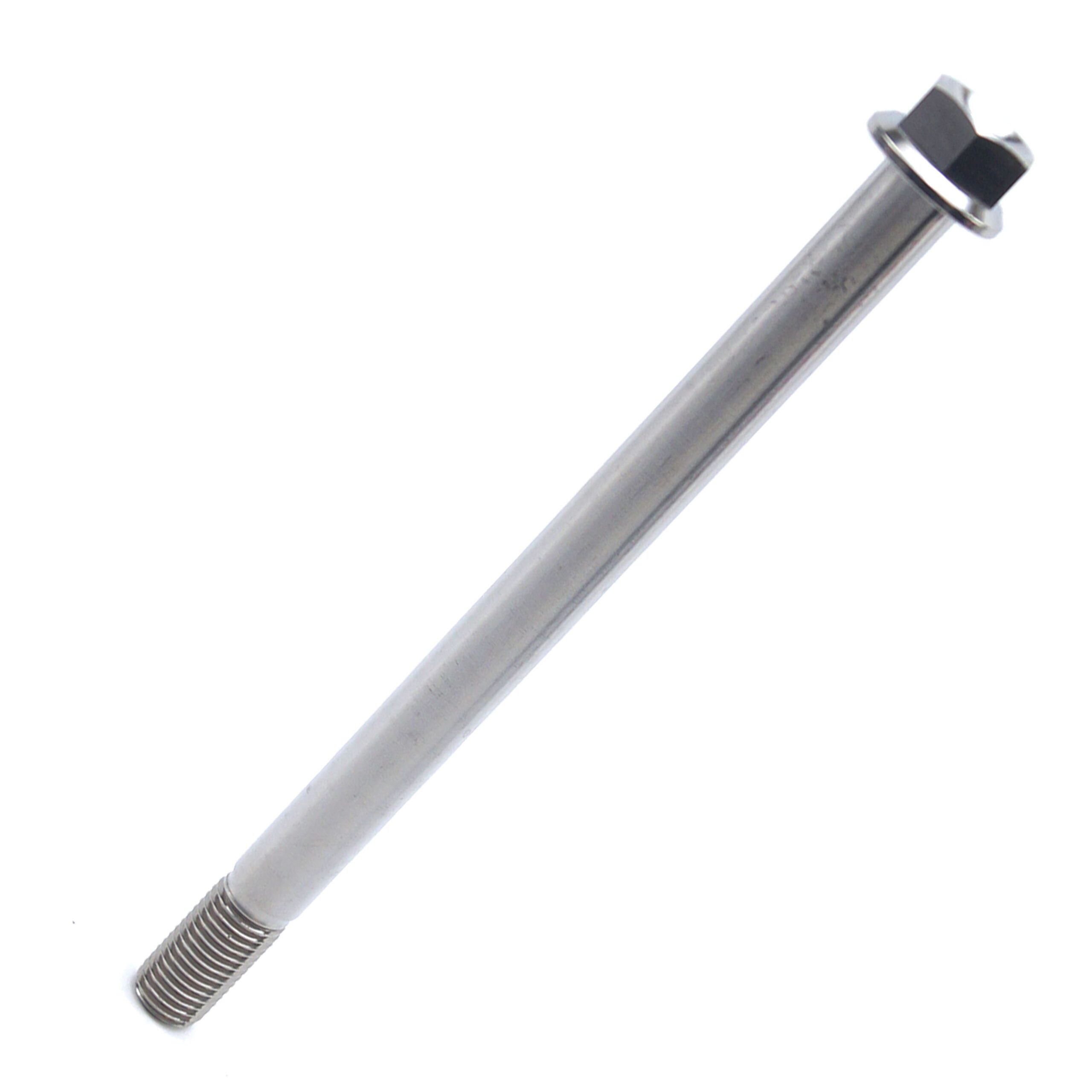

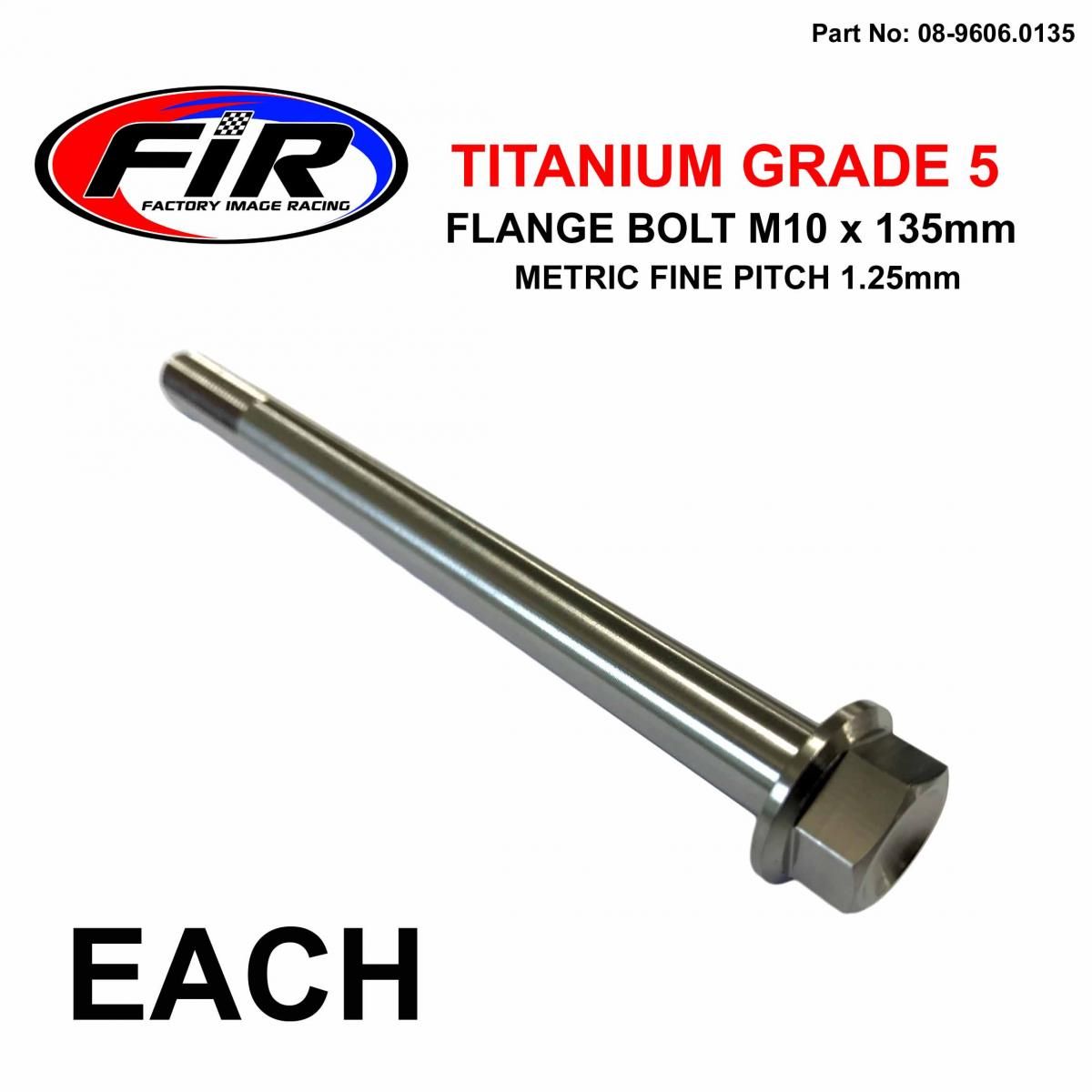

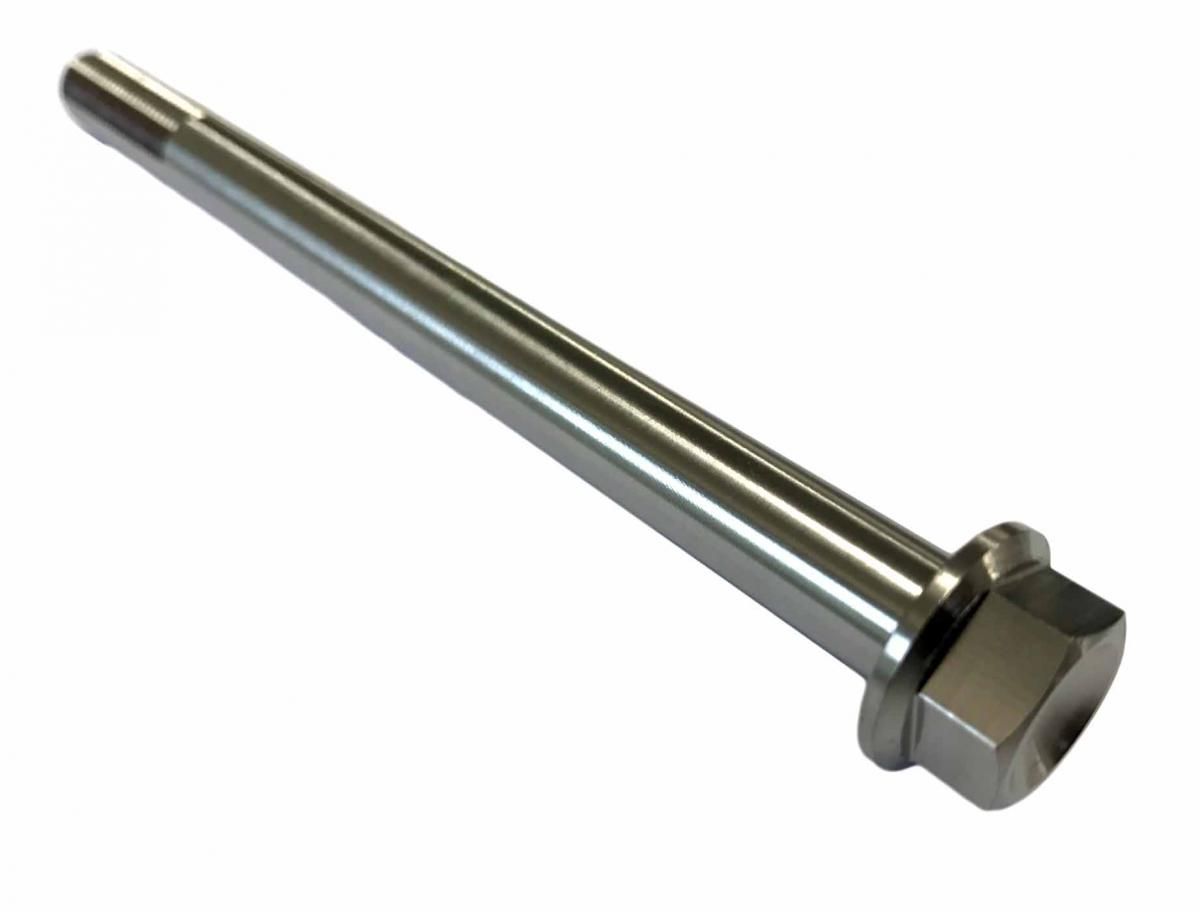

TITANIUM GR5 BOLT M10 x 135mm EACH, METRIC FINE 1.25mm / GRADE 5

!METRIC FINE! 1.25MM Pitch

Not compatible with OEM KTM frame nuts; use replacement nuts 08-9621.PK2 when fitting to KTM frames

CNC-machined from high-strength Grade 5 (6Al/4V) titanium alloy, this M10x135mm standard flange bolt features a fine 1.25mm thread pitch and is designed for lightweight durability and excellent corrosion resistance. It is commonly used in motorcycle, bicycle, and other high-performance applications.

Features

• Manufactured from Grade 5 (6Al/4V) titanium alloy for high strength and low weight

• Fine thread pitch for precise fastening and load distribution

• Rolled threads to enhance fatigue resistance

• Excellent resistance to corrosion

• Standard flange head design

Specifications

• Thread Diameter: M10

• Thread Pitch: 1.25mm (Fine)

• Overall Length: 135mm

• Thread Length: 20mm

• Head Size: 13mm HEX (spanner)

• Flange Outer Diameter: 17.95mm

Cross-Reference OEM Part Numbers

• 08-9621.PK2 (recommended nut for KTM frame bolt replacement)

Vehicle Fitments

• Not specified
