TIE ROD END KIT CAN-AM, ALLBALLS 51-1009 KVF360A

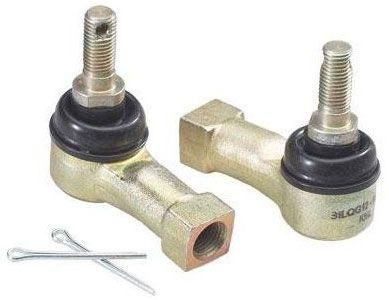

Tie Rod End Kit
Brand: ALLBALLS
Part Number: 51-1009
Alternate Part Number: 0430-0059
Part Number: 17-7006 (Distributed by oro2u.com)

Description:

• Replaces loose or worn tie-rod ends.
• Kits include both inner and outer ends for one tie-rod.

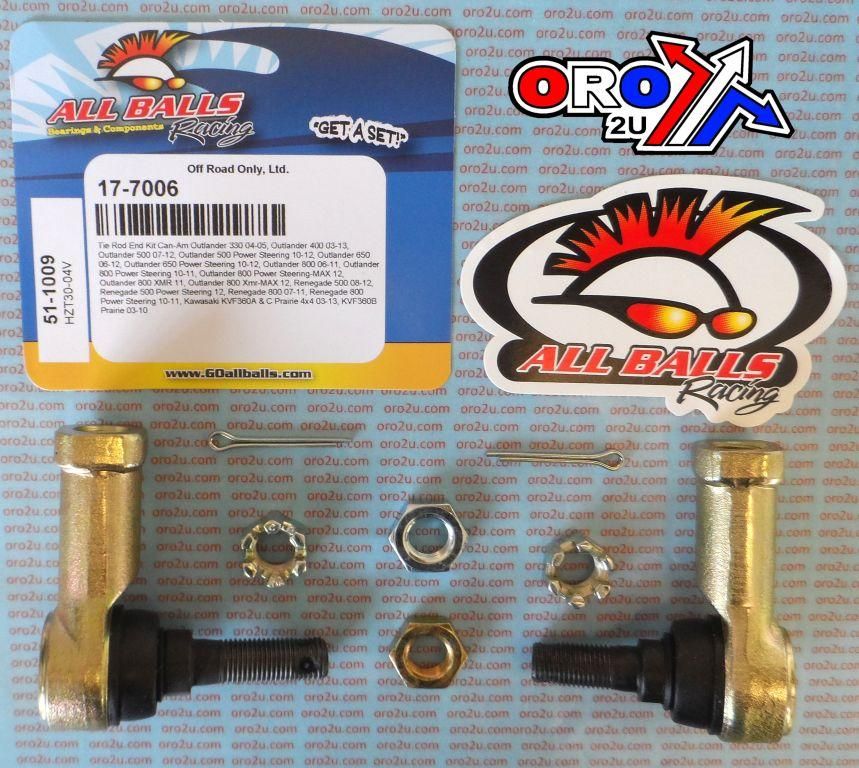

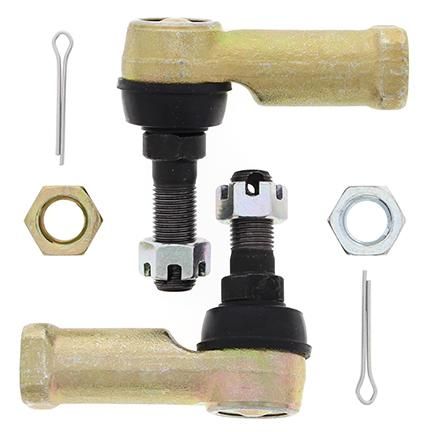

Included Items:

• (2) Tie rod ends
• (2) Cotter pins

Dimensions:

Tie Rod 1:

• Tie Rod End: 12mm x 1.25 RH external threads
• Spindle End: 12mm x 1.25 RH external threads (Non-tapered end)

Tie Rod 2:

• Tie Rod End: 12mm x 1.25 LH external threads
• Spindle End: 12mm x 1.25 RH external threads (Non-tapered end)

Fits the following models:

• Can-Am:
  Outlander 330 (2004-2005)
  Outlander 400 (2003-2004)
  Outlander 400 STD 2×4 (2005)
  Outlander 400 STD 4×4 (2005-2015)
  Outlander 400 XT 4×4 (2004-2014)
  Outlander 500 LTD 4×4 (2010)
  Outlander 500 STD 4×4 (2007-2012)
  Outlander 500 XT 4×4 (2007-2012)
  Outlander 650 STD 4×4 (2006-2012)
  Outlander 650 XT 4×4 (2006-2012)
  Outlander 800 STD 4×4 (2006-2008)
  Outlander 800 XMR (2011-2012)
  Outlander 800 XT 4×4 (2006-2008)
  Outlander 800 XXC (2011)
  Outlander 800R STD 4×4 (2009-2011)
  Outlander 800R XT 4×4 (2009-2012)
  Outlander MAX 400 EFI/STD/XT (2015)
  Outlander MAX 400 STD 4×4 (2005-2014)
  Outlander MAX 400 XT 4×4 (2006-2014)
  Outlander MAX 500 STD 4×4 (2007-2012)
  Outlander MAX 500 XT 4×4 (2007-2012)
  Outlander MAX 650 STD 4×4 (2006-2012)
  Outlander MAX 650 XT 4×4 (2006-2012)
  Outlander MAX 800 LTD 4×4 (2007-2008)
  Outlander MAX 800 STD 4×4 (2006-2008)
  Outlander MAX 800 XT 4×4 (2006-2008)
  Outlander MAX 800R LTD 4×4 (2009-2012)
  Outlander MAX 800R STD 4×4 (2009-2011)
  Outlander MAX 800R XT 4×4 (2009-2012)

• Renegade:
  Renegade 500 (2008-2012)
  Renegade 500 XT (2012)
  Renegade 800 (2007-2011)
  Renegade 800 X (2008-2009)
  Renegade 800 XXC (2010-2011)

• Kawasaki:
  KVF360A Prairie 4×4 (2003-2013)
  KVF360B Prairie (2003-2011)
  KVF360C Prairie 4×4 (2003-2013)
