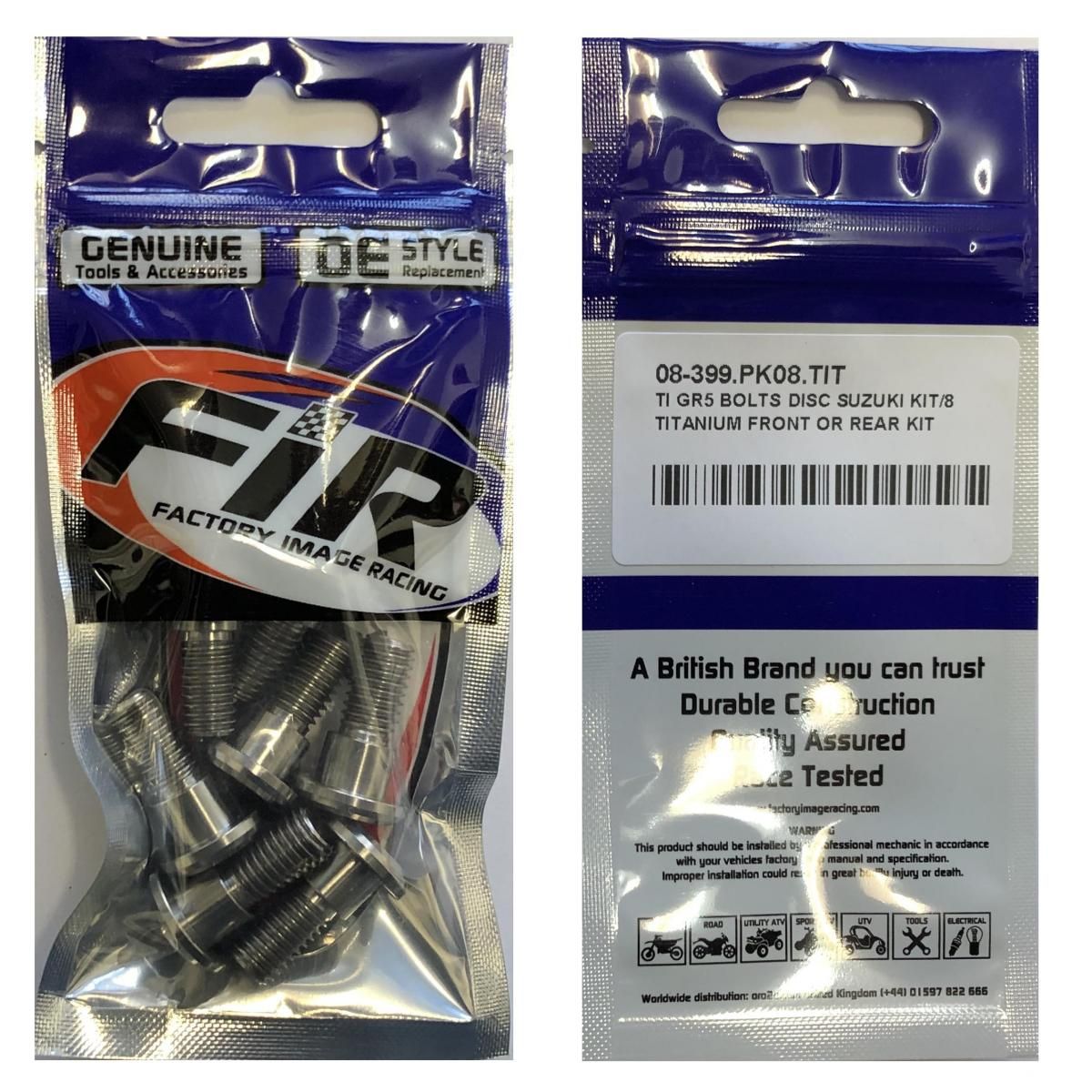

TI GR5 BOLTS DISC SUZUKI KIT/8, TITANIUM FRONT OR REAR KIT, / FIR BRAND

Factory Image Racing
Giving your machine the Factory look!

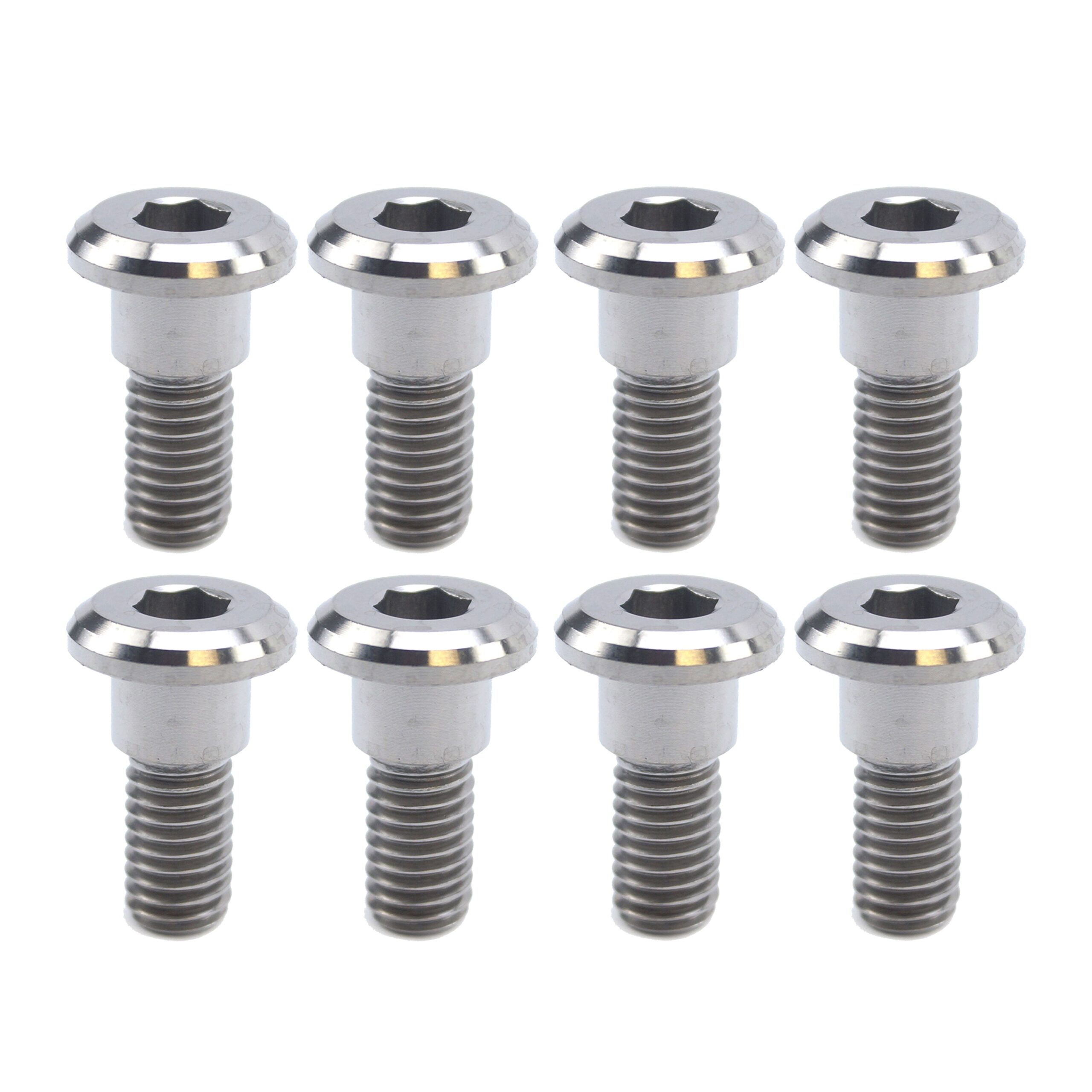

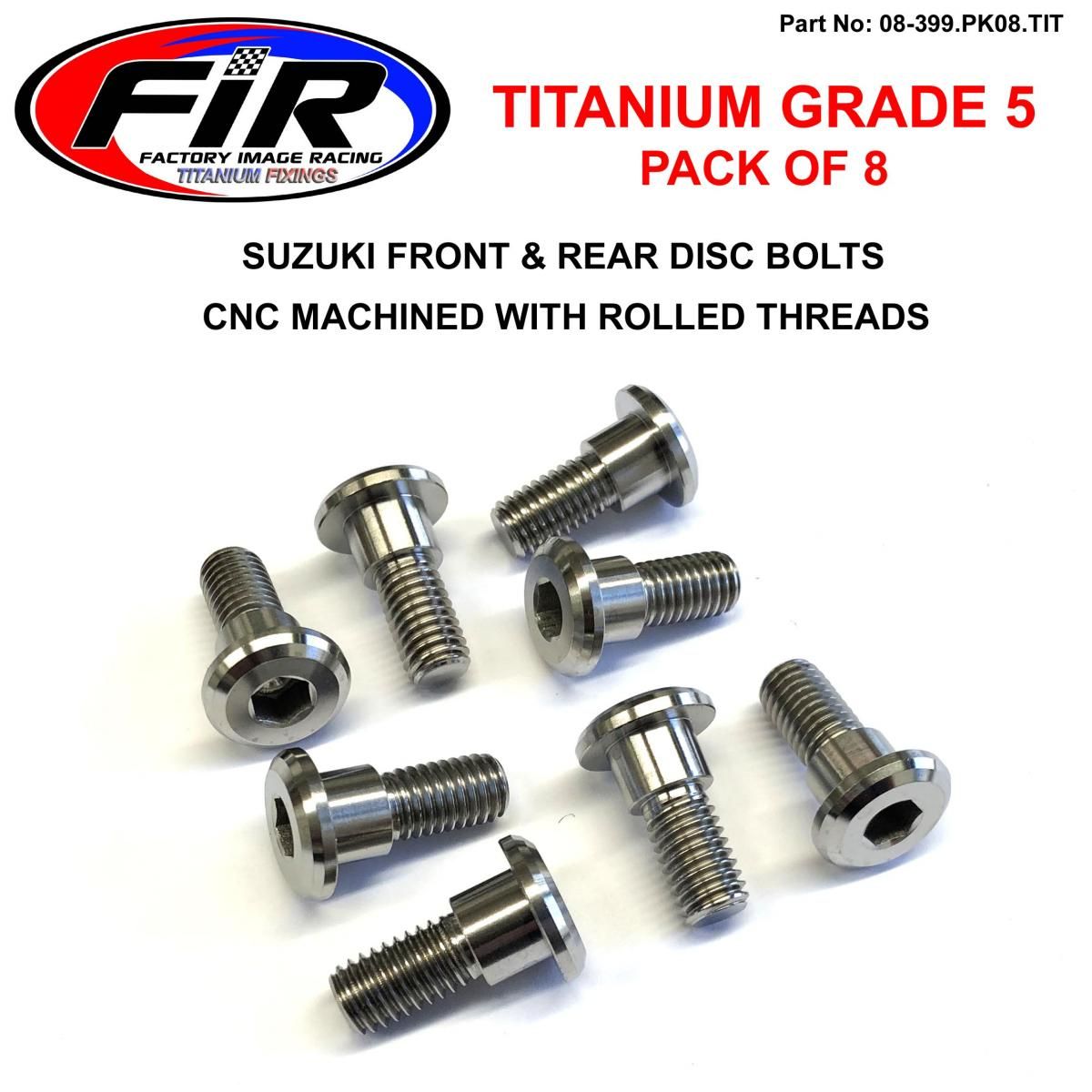

TITANIUM GRADE 5 BOLT DISC SET OF 8
Used for front & rear, fits a lot of years 1998>2020
Suzuki (ATV):

• LT-Z250 2004-07 (F)
• LT A400 2008 (F)
• LT A400F 2008 (F)
• LT F400 2008-09 (F)
• LT F400F 2008-11 (F)
• LTZ400 2003-07 (F&R)
• LT A450X (King Quad) 2008-10 (F)
• LT-R450 2006-09 (F&R)
• LT A500X 2009-11 (F)
• LT-A700X King Quad 2005-07 (F)
• LT A750X,Z (King Quad) 2008 (F)
• LT-A750X 2009-11 (F)
  Suzuki (Street):
• AN400 2003-11
• GSX600F KATANA 2003-05

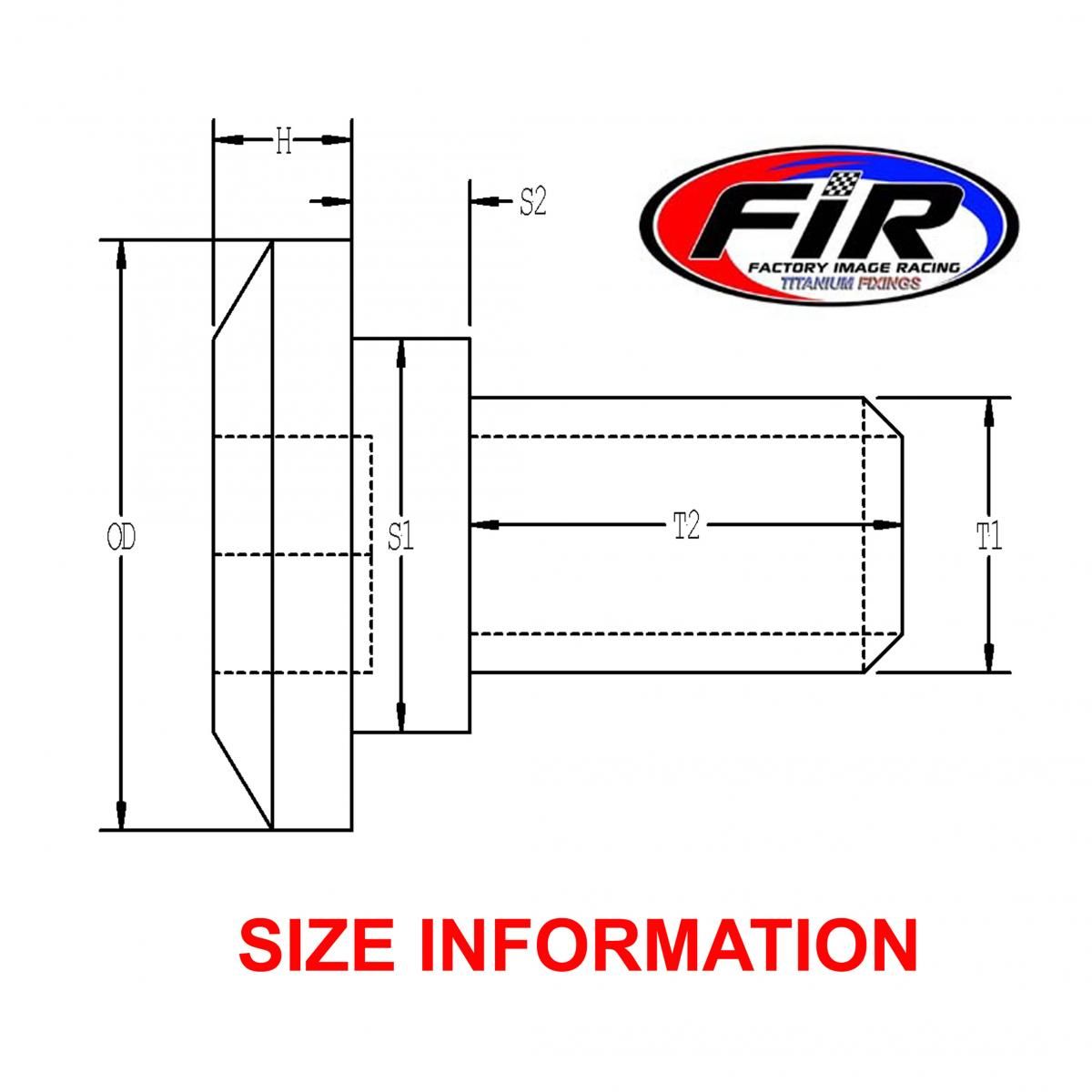

STEP BOLT INFO
Material: Grade 5 (6Al/4V)
Pitch T1: M8x1.25mm
Length T2: 13.80mm
OD step S1: 9.92mm
H step S2: 7.00mm
L Head H: 3.20mm
Head OD: 16.000mm
Head Allen: #6
Pack QTY: 8
OEM Ref: SUZ 09106-08160 / UP-05028

Part No. 08-399.PK08.TIT

The titanium bolts are grade 5 which is the best grade to use, it’s the alpha grade of titanium and more expensive than the other grades being used in the motorcycle market, and just a heads up all fir fixings are made from grade 5!
