TI GR5 BOLTS DISC SUZUKI KIT/5, TITANIUM FRONT OR REAR KIT, / FIR BRAND
£16.46
Stock: 6
| Product Type | Disc Bolt |
|---|---|
| Product Group | Braking |
| Catalogue | ATV, DIRT, TOOLS |
TI GR5 BOLTS DISC SUZUKI KIT/5, TITANIUM FRONT OR REAR KIT, / FIR BRAND

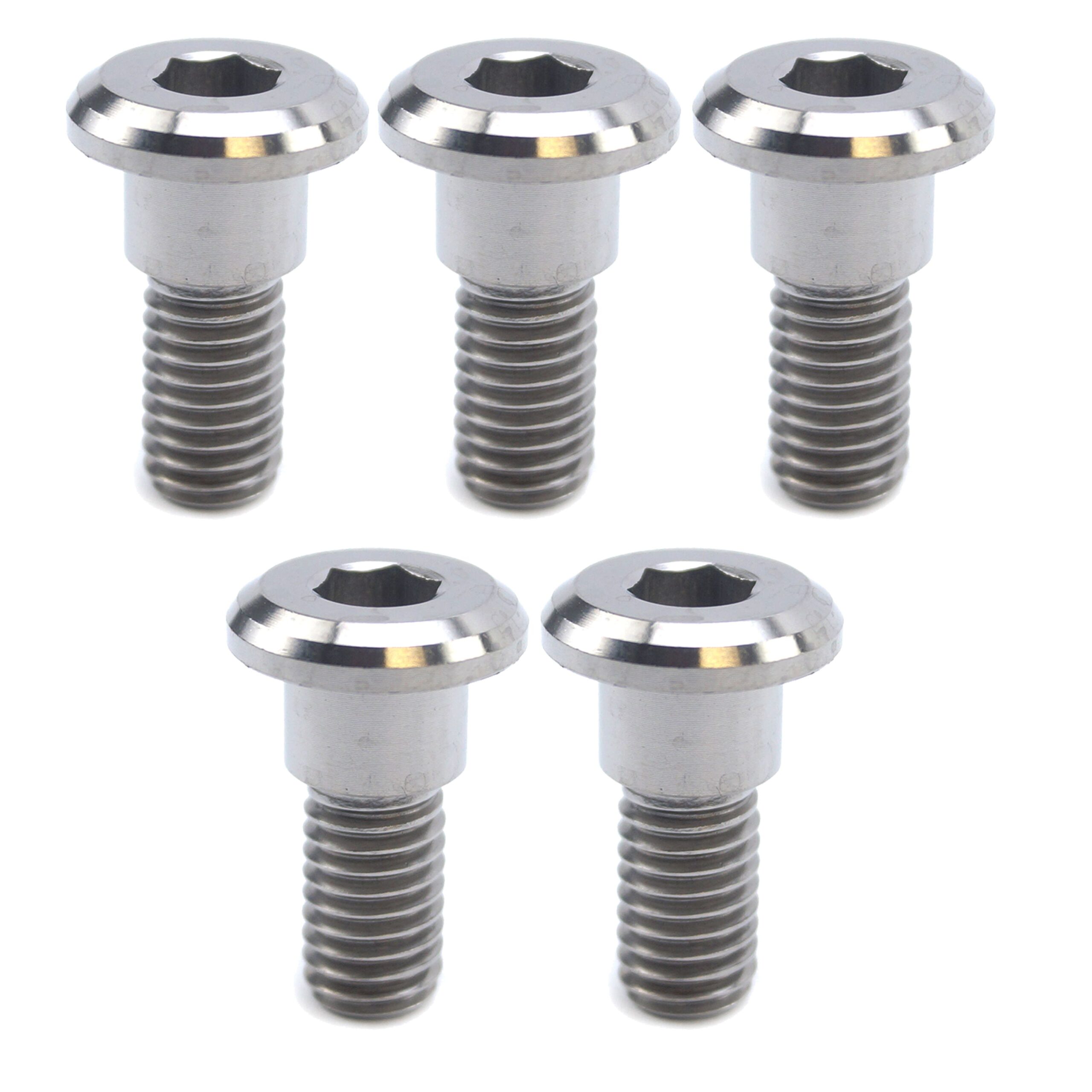

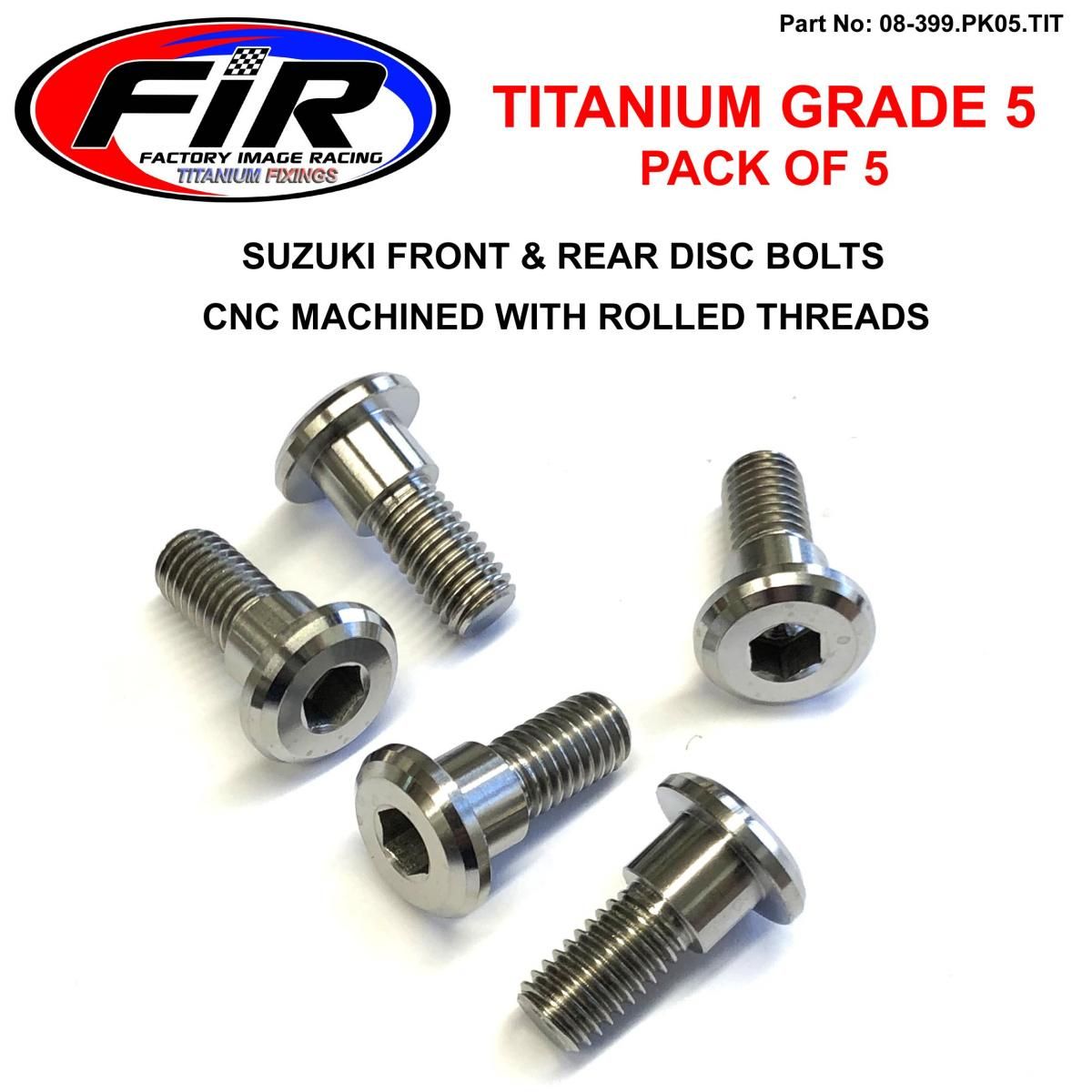

TITANIUM GRADE 5 BOLT DISC SET OF 5
Used for front & rear, fits a lot of years 1998 to 2020.
Suzuki (ATV):
- LT-Z250 2004-07 (F)
- LT A400 2008 (F)
- LT A400F 2008 (F)
- LT F400 2008-09 (F)
- LT F400F 2008-11 (F)
- LTZ400 2003-07 (F&R)
- LT A450X (King Quad) 2008-10 (F)
- LT-R450 2006-09 (F&R)
- LT A500X 2009-11 (F)
- LT-A700X King Quad 2005-07 (F)
- LT A750X,Z (King Quad) 2008 (F)
- LT-A750X 2009-11 (F)
Suzuki (Street):
- AN400 2003-11
- GSX600F KATANA 2003-05

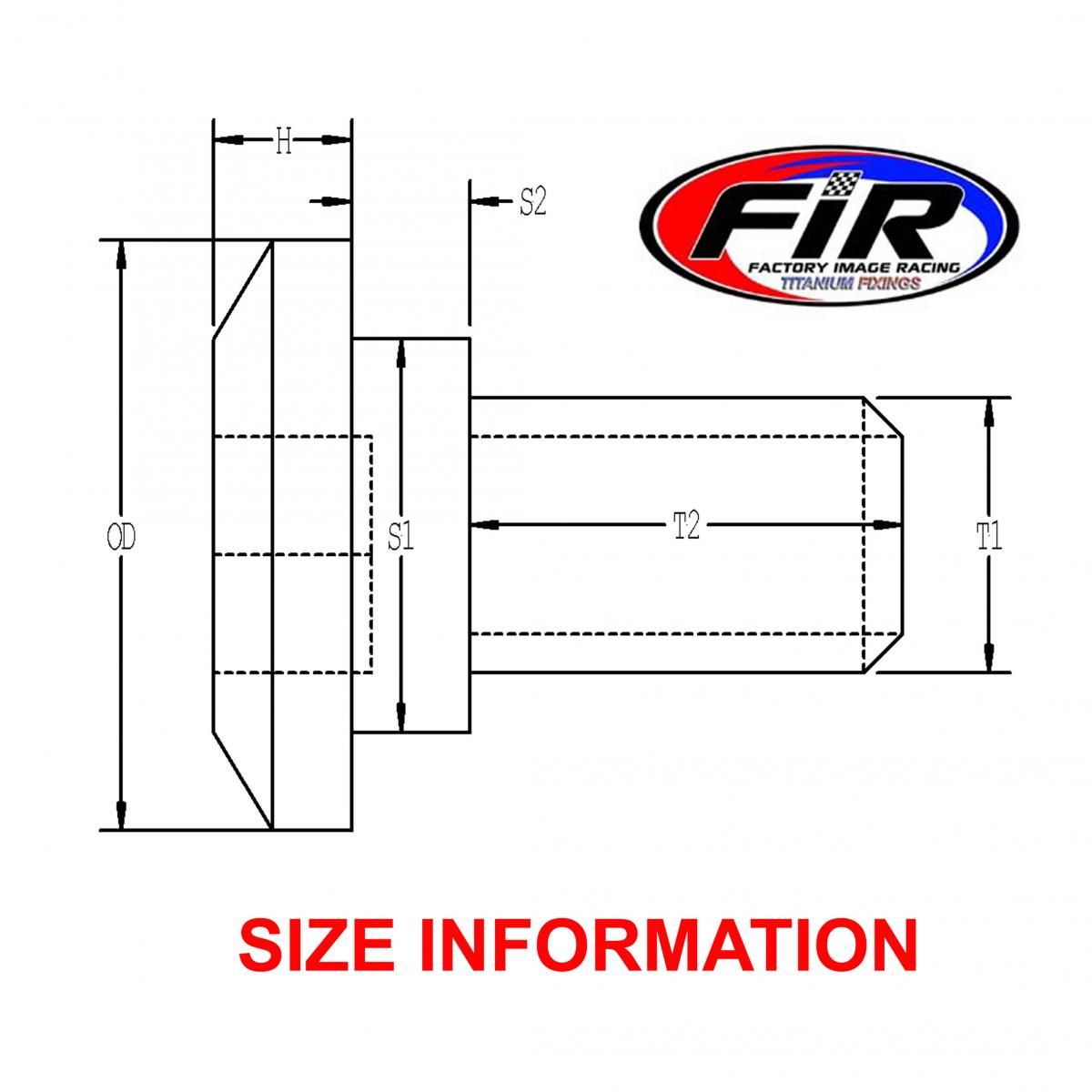

Step Bolt Info:
- Material: Grade 5 (6Al/4V)
- Pitch T1: M8x1.25mm
- Length T2: 13.80mm
- OD step S1: 9.92mm
- H step S2: 7.00mm
- L Head H: 3.20mm
- Head OD: 16.000mm
- Head Allen: #6
- Pack Quantity: 5
- OEM Ref: SUZ 09106-08160 / UP-05028
The titanium bolts are grade 5, which is the best grade to use. It’s the alpha grade of titanium and more expensive than the other grades being used in the motorcycle market. Just a heads up, all fir fixings are made from grade 5!
Cross Reference Numbers Only:
09106-08160
