TI GR5 BOLTS DISC HONDA KIT/12, TITANIUM FRONT OR REAR KIT, / FIR BRAND

Factory Image Racing
Giving your machine the Factory look!

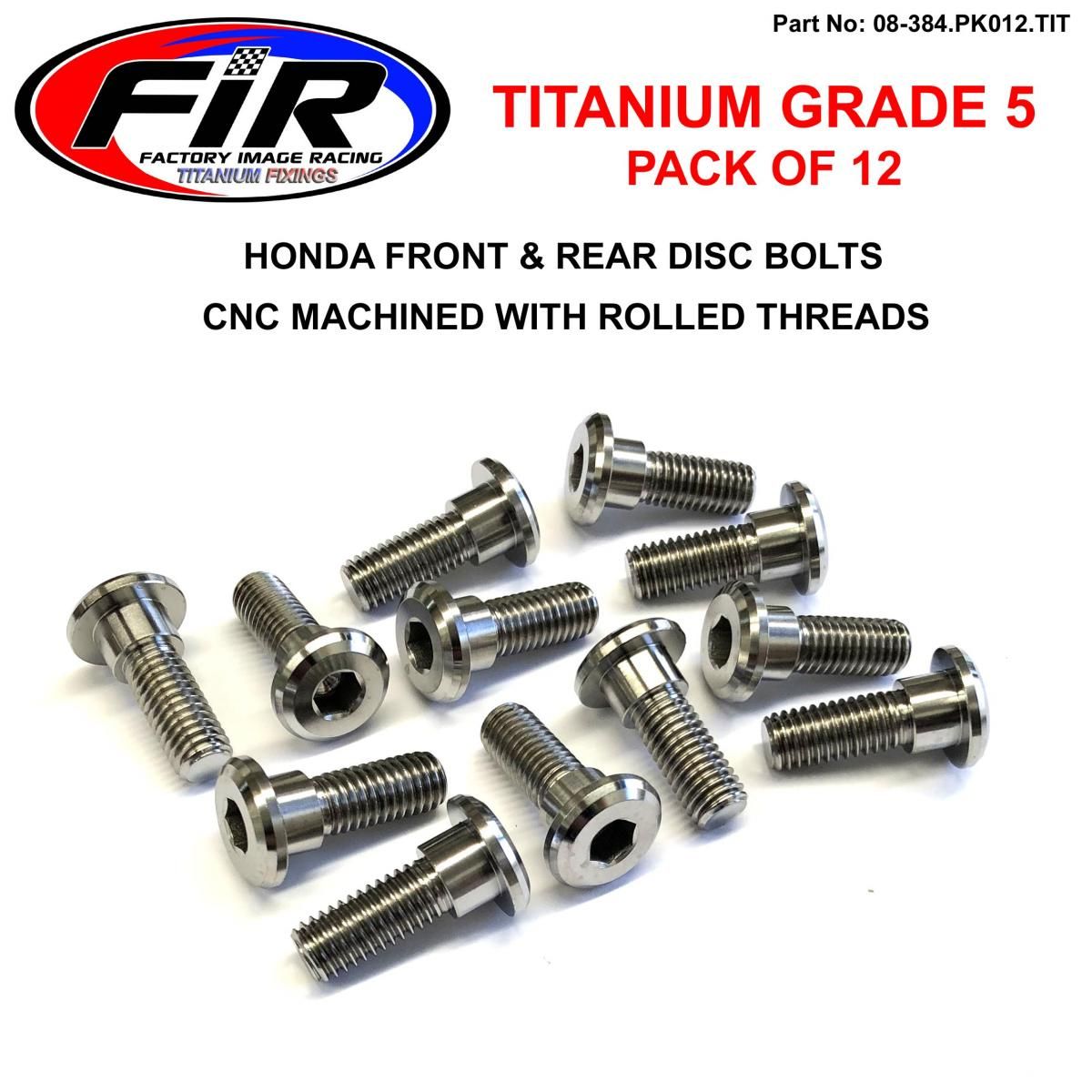

TITANIUM GRADE 5 BOLT DISC SET OF 12,
HONDA Motorcycle ATV Scooter
USED FOR FRONT & REAR, FIT’S A LOT OF YEARS 1991>2020

HONDA

• CB125: All Years
• 2003-08: CB1300
• 1996-03: CB500 Unfaired
• 1998-99: CB600 Hornet SFW-SFX
• 2001-07: CB900 Hornet
• 2006-09: CBF1000
• 2009-10: CBF1000 ABS
• 2008-09: CBF600S
• 2004-16: CBR1000RR Fireblade
• 1997-05: CBR1100XX Blackbird
• 1988-89: CBR400RR NC23 Tri Arm
• 1990-94: CBR400RR NC29 Gull Arm
• 2000-04: CBR600F1-F5
• 2001-02: CBR600FS1-FS2
• 1995-98: CBR600FS-FW
• 1999-00: CBR600FX-FY
• 2003-16: CBR600RR
• 1992-95: CBR900RRN-RRS Fireblade
• 1996-97: CBR900RRT-RRV Fireblade
• 1998-99: CBR900RRW-RRX Fireblade
• 2000-01: CBR929RRY-RR1 Fireblade
• 2002-03: CBR954RR2-RR3 Fireblade
• 2012-13: NC700
• 1997-05: VTR1000 F Firestorm
• 2000-01: VTR1000 SP1 – RC51
• 2002-05: VTR1000 SP2 – RC51
• 2001-10: XL1000V V4-V9 Varadero
• 2008-12: XL700 VA Transalp
• 2007-13: CB600 Hornet F7-FAE
• 1998-06: CB600 Hornet FY-F6

HONDA ATV

• TRX250/TRX420/TRX500/TRX680/

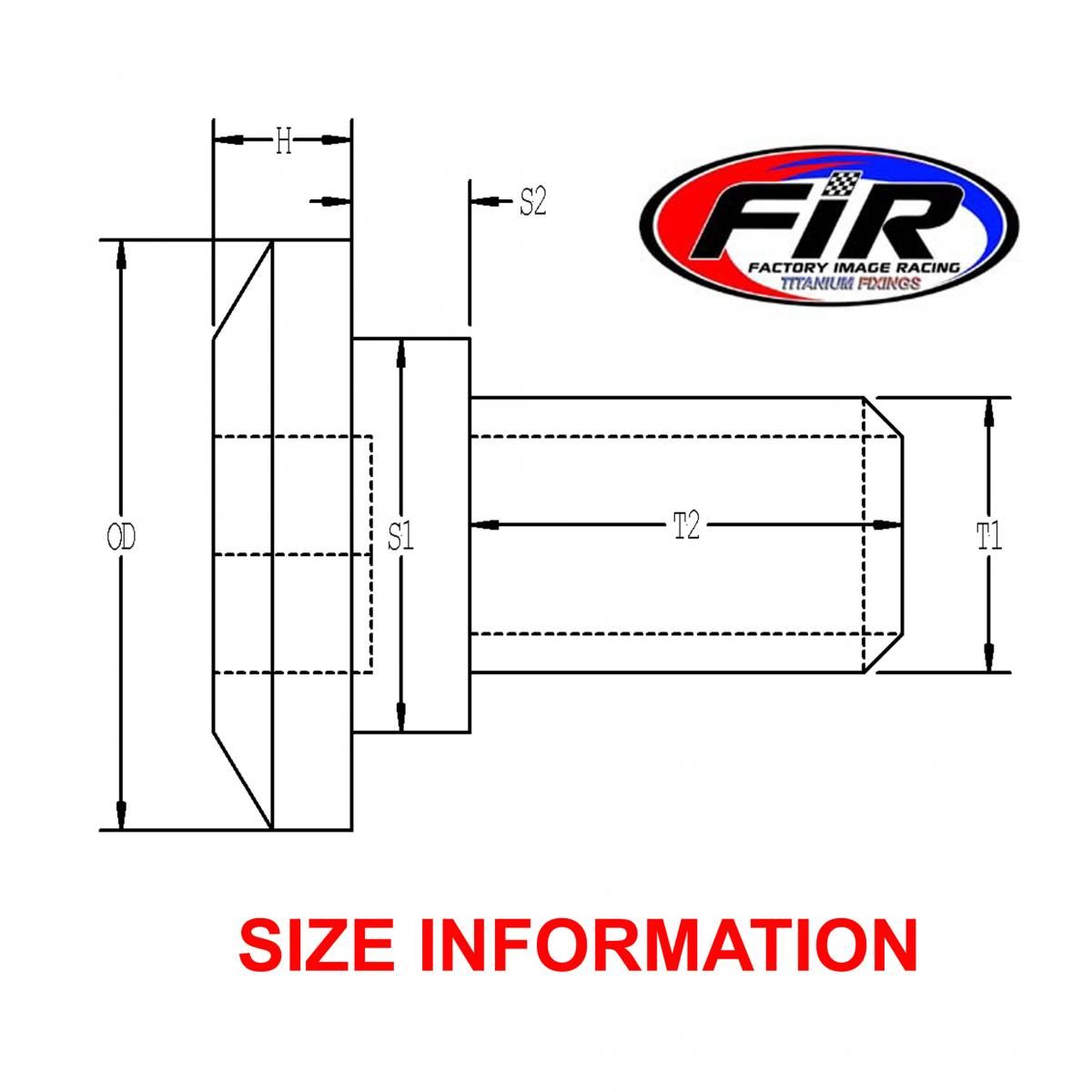

STEP BOLT INFO
Material: Grade 5 (6Al/4V)
Pitch T1: M8x1.25mm
Length T2: 17.60mm
OD step S1: 9.92mm
H step S2: 6.00mm
L Head H: 3.20mm
Head OD: 16.000mm
Head Allen: #6
Pack QTY: 12
OEM Ref: HON 90105-MV9-003
