SWITCH UNIVERSAL COMPACT T/S K&S 12-0040

Part No. 44-702 (oro2u.com)

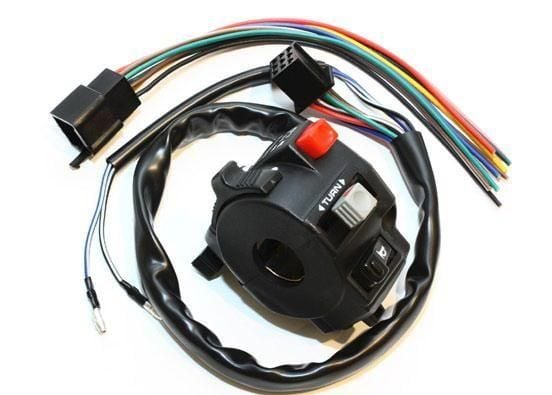

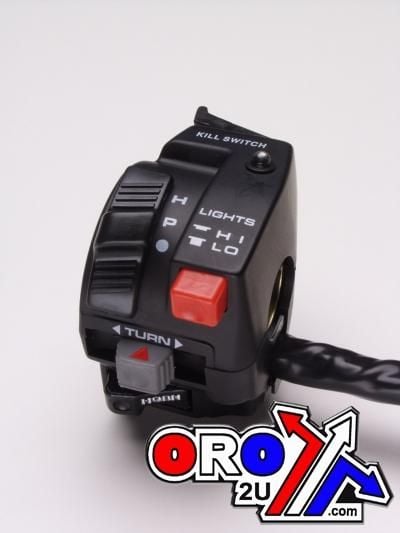

ROAD CONVERSIONS SWITCH. K&S 12-0040
Turn Signal (Right, Left and Centre push Cancelling). Head Light (High-Low Beam). Head Light (Off – Parking – On). Head Light (Passing) Horn.

Kill Switch LED light to indicate high beam on Fits 7/8” Handlebars. 25 inches overall wire length with 9 pin connector
QUALITY SWITCH.

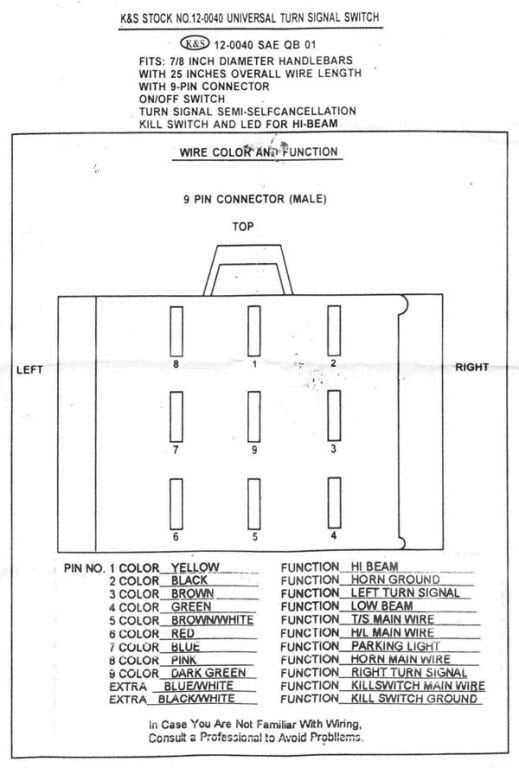

Cross reference numbers ONLY. yellow-high beam

black-horn ground brown-left signal green-low beam brownwhite-turnsignal main(flasher) red-main power blue-parking light pink-horn darkgreen-right signal bluewhite-kill switch main
