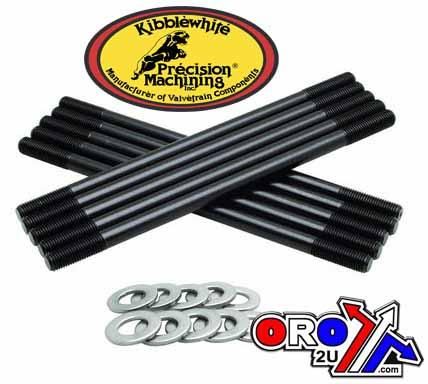

STUD SET PACK/6 YAMAHA GRIZZLY RAPTOR RHINO, KIBBLEWHITE 80-82450 VIKING KODIAK

Part No. 65-8003.KW (oro2u.com)
YAMAHA:

GRIZZLY 700 07-15

GRIZZLY 700 19-20

RAPTOR 700 06-20

RHINO 700 08-16

VIKING 700 14-20

KODIAK 19-20



KPMI P/N: 80-82450

Quantity     2 of all

Body Dia. all are 0.319″

  “C”   6.2″   “A”   1.95″   “B”   .95″

  “D”   6.7″   “F”   1.45″   “G”   .95″

  “E”     2.2″     “H”   .70″   “I”     .70″

KIBBLEWHITE 80-82450



KPMI® Studs are made from 180,000 psi yield strength, fine grain, heat treated, aircraft grade alloy steel. When you want a stud that meets proof-stress and maximizes clamping force, look no further. KPMI® “rolls” the threads, heat treats and then centerless grinds the entire body of the stud. Rolling the threads creates the toughest and strongest thread possible and centerless grinding removes notch sensitivity. The final process for all KPMI® Studs is to encase the entire stud with premium corrosion resistant treatment of Black Oxide.

Congratulations on your choice to purchase a stud that meets and exceeds your stock replacement high-performance needs!

KPMI® nuts are single point machined from high tensile strength Aircraft Alloy Steel. During the machining process close tolerances and smooth surface finishes are maintained. Two critical factors for achieving correct fit and torque. After machining, the nuts are heat treated to a specific depth. This creates hard, wear resistant working surfaces, while retaining a ductile core to prevent cracking under load. The premium black oxide treatment provides excellent corrosion resistance and appearance.
