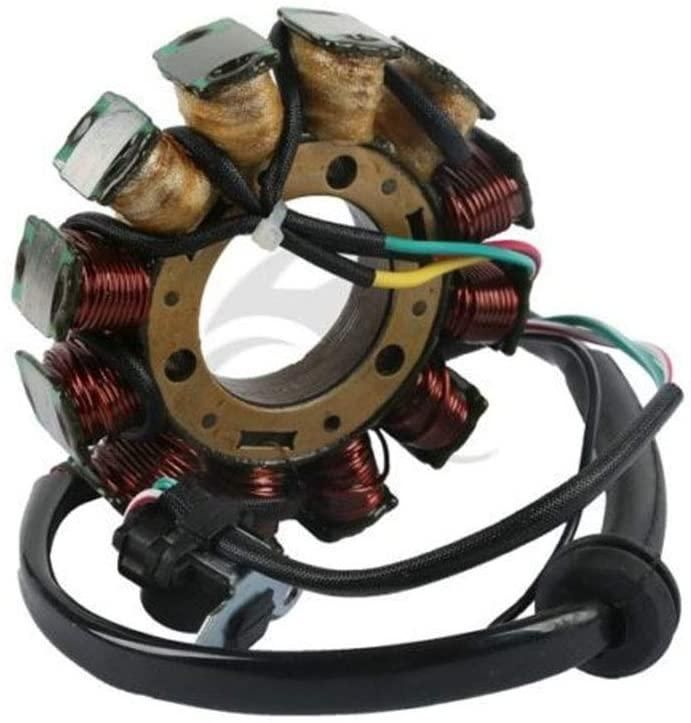

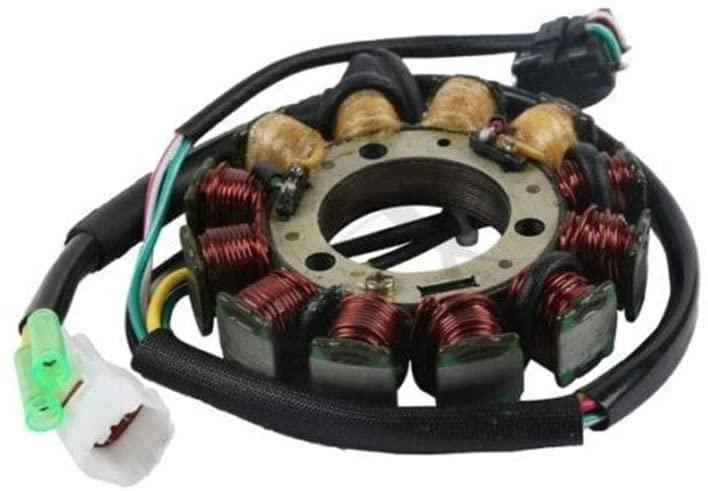

STATOR YFM350 BANSHEE, YAMAHA 3GG-85510-01-00, 3GG-85510-00-00, AYA4033

High-quality replacement stator assembly for Yamaha YFZ350 Banshee models, designed to meet or exceed OEM specifications. This stator ensures reliable performance and efficient power generation, making it an ideal replacement for the original component.

Features:

• Direct OEM replacement.
• 12-pole stator with ground connection.
• Includes integrated sensor with 174? pick-up resistance.
• Factory-tested for 100% reliability.
• Designed to handle increased power demands.
• Note: Electrical components are non-returnable.

Technical Specifications:

• Voltage: 12V

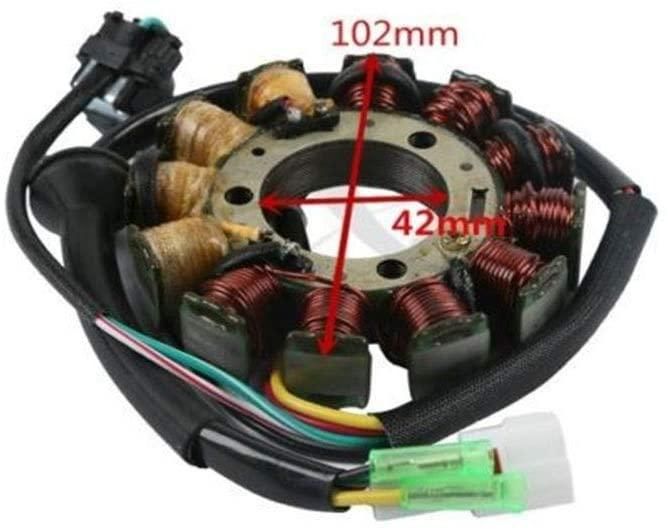

• External Diameter: 103mm
• Internal Diameter: 42mm
• Power Coils: 6
• Source Coils: 6
• Sensor: Included
• Pick-Up Resistance: 174?

Vehicle Compatibility:

Yamaha YFZ350 Banshee

• 1995–1998 (OEM: 3GG-85510-00-00)
• 1999–2006 (OEM: 3GG-85510-01-00)

OEM Cross-Reference:

• 3GG-85510-00-00
• 3GG-85510-01-00
• DZE 2916
• MST004
• AYA4033
• RICKS 21-908H

Part Number: 44-0972.DR
