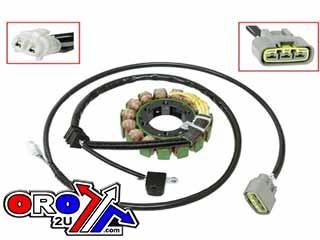

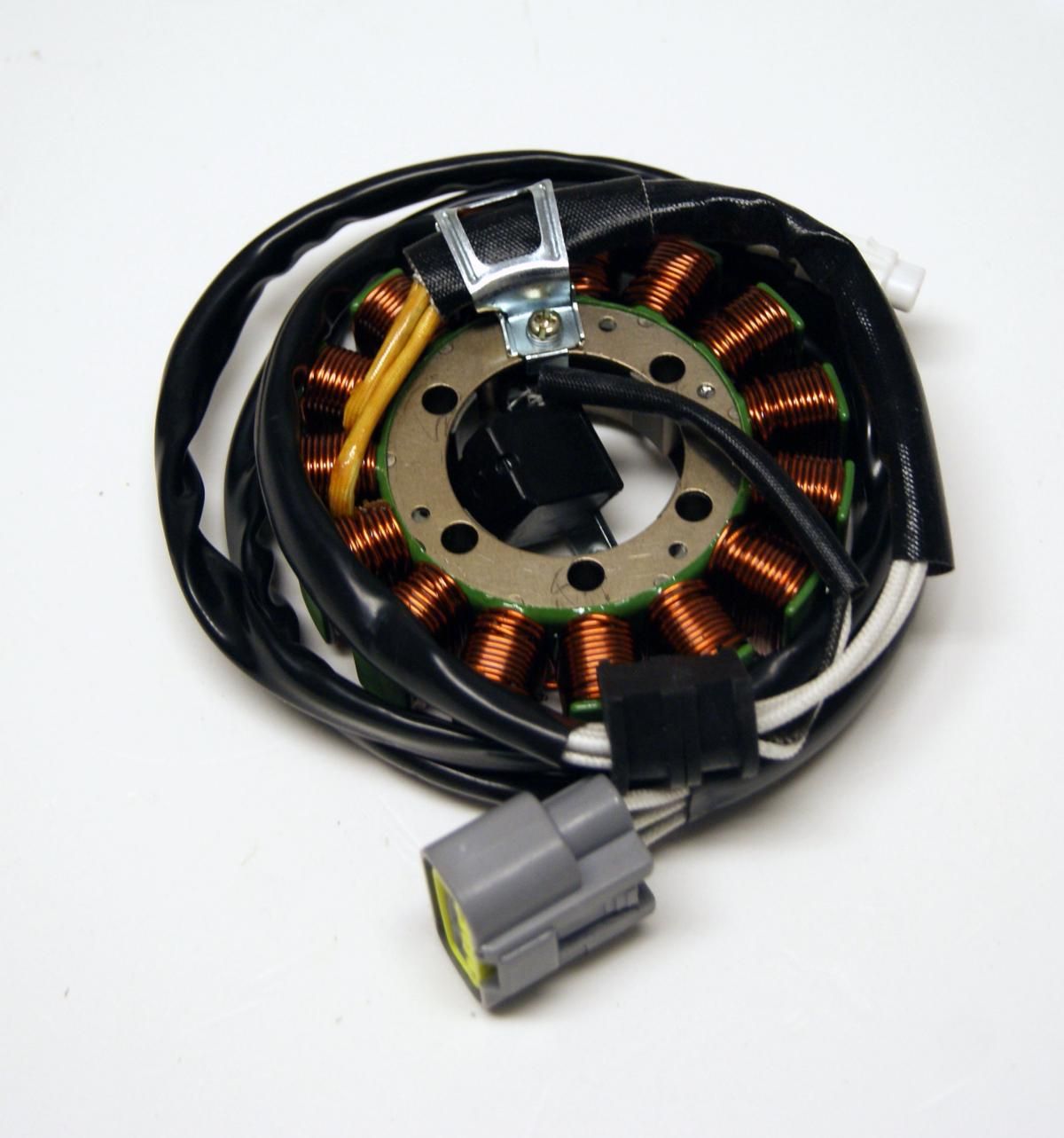

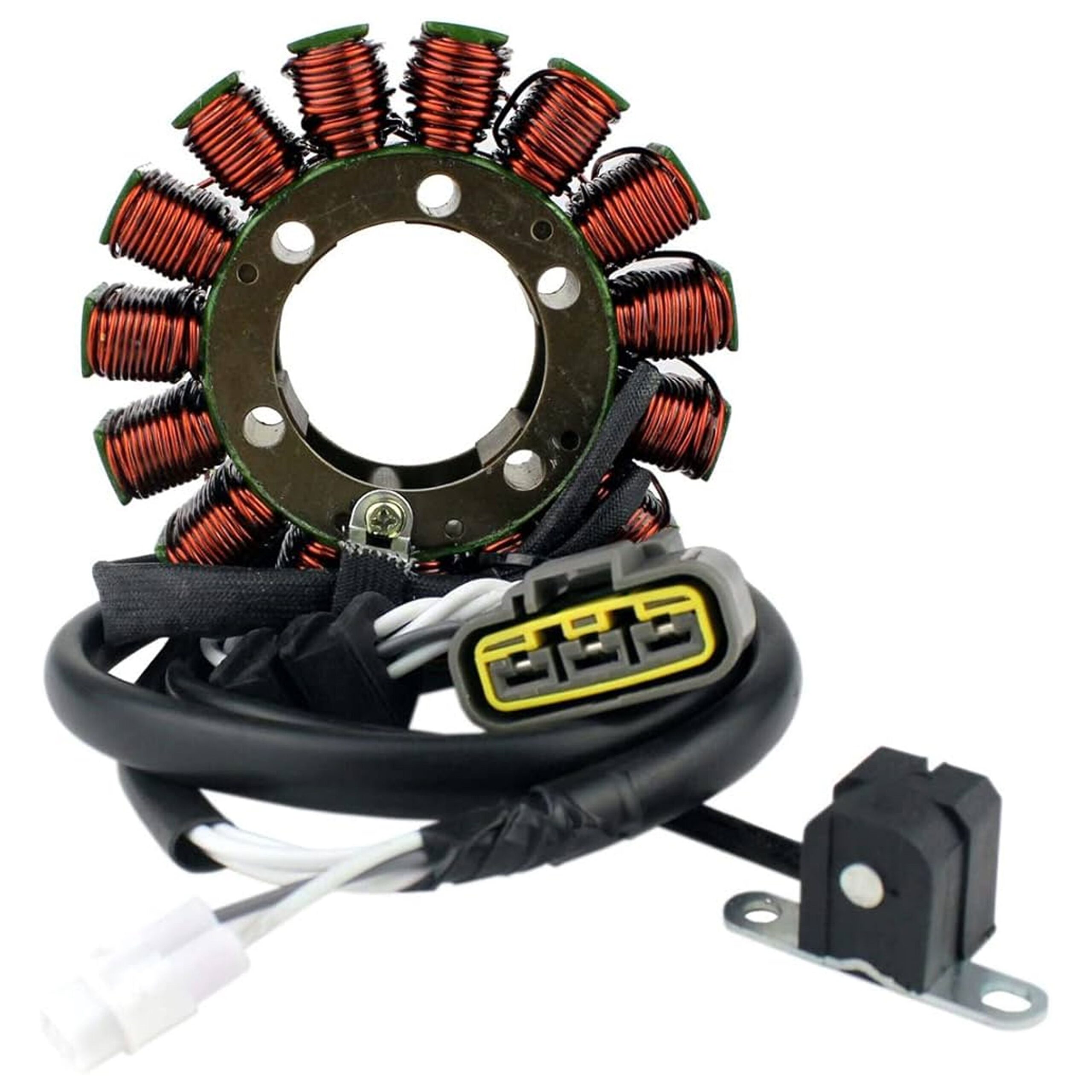

STATOR COIL YFM550 YFM700, BRONCO AT-01475, 28P-81410-00-00, 28P-81410-01-00 3B4-81410-00-00

Yamaha ATV
2007-2015    YFM 550 Grizzly
2007-2015    YFM 700 Grizzly

Stator BRONCO AT-01475

I.D.: 42 MM. O.D: 105.2 MM.

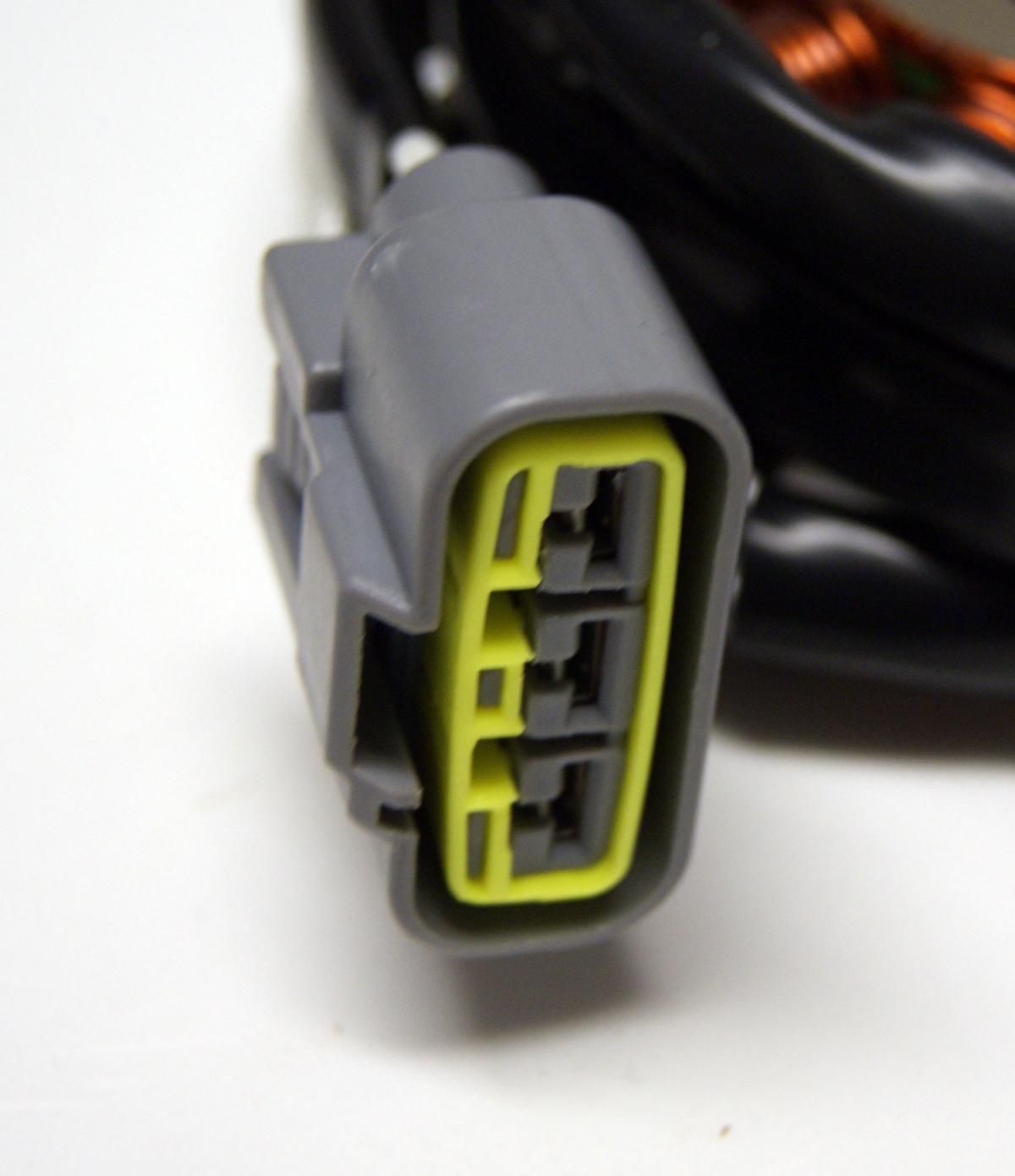

5 Wires / 2 Connectors. 15 Coils.
Hole: 6.6 MM. C to C: 47 MM.

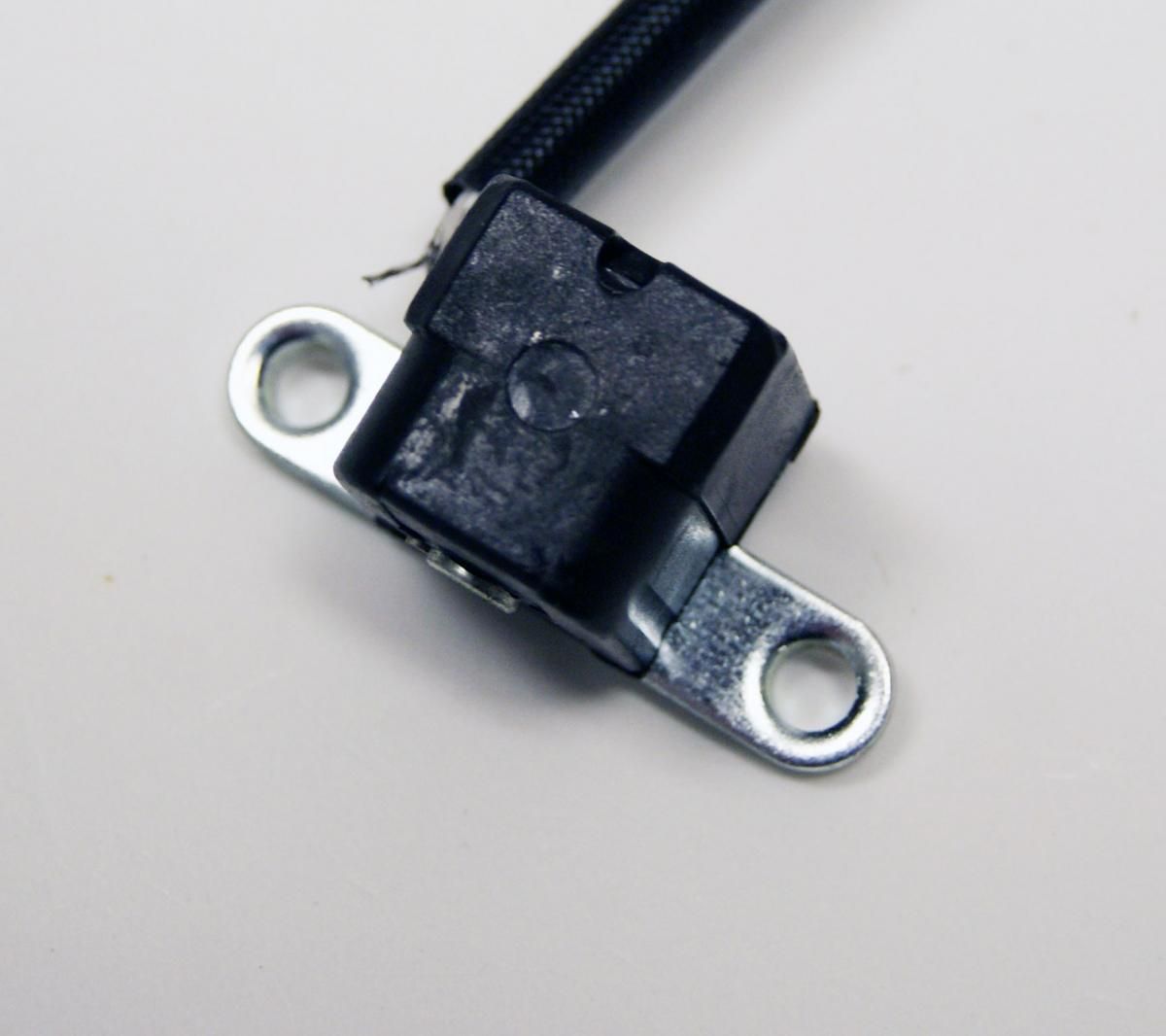

Pickup coil hole: 5.2 MM. C to C: 33.4 MM.
Wire length: 9 CM. Wire length: 79 / 134 CM.

– Meets or exceeds OEM quality.
– Direct oem replacement.
– Stock mounting locations.
– Designed to handle increased power loads.
– Best value for money
– All are made to OEM specifications and match the original equipment in appearance.
– All Electrical Parts are 100% fully factory tested before shipping.
– Due to the nature of electrical components they are non returnable and have no warranty.
– BRONCO products are a high quality replacement part and carries our guarantee of your satisfaction.
– Please check the image before ordering to avoid mistakes.

– Note. No Returns on Electrical Parts.

OEM Cross Reference Numbers Only:
28P-81410-00-00  , 28P-81410-01-00 , 3B4-81410-00-00 , 340-58158

Yamaha     YFM 550 DE Grizzly 4×4          2014

Yamaha     YFM 550 DH Grizzly 4×4 Hunter          2014

Yamaha     YFM 550 FG Grizzly 4×4          2009, 2010, 2011, 2012, 2013

Yamaha     YFM 550 FGH Grizzly 4×4 Hunter          2009, 2010, 2011, 2012, 2013

Yamaha     YFM 550 FGP Grizzly EPS 4×4          2009, 2010, 2011, 2012, 2013

Yamaha     YFM 550 FGPH Grizzly EPS 4×4 Hunter          2009, 2010, 2011, 2012, 2013

Yamaha     YFM 550 FGPSE Grizzly 4×4 EPS SE          2009

Yamaha     YFM 550 PE Grizzly EPS 4×4          2014

Yamaha     YFM 550 PH Grizzly EPS 4×4 Hunter          2014

Yamaha     YFM 700 D Grizzly 4×4          2014, 2015

Yamaha     YFM 700 DH Grizzly 4×4 Hunter          2014

Yamaha     YFM 700 FG Grizzly 4×4          2007, 2008, 2009, 2010, 2011, 2012, 2013

Yamaha     YFM 700 FGH Grizzly 4×4 Hunter          2009, 2010, 2011, 2012, 2013

Yamaha     YFM 700 FGP Grizzly EPS 4×4          2008, 2009, 2010, 2011, 2012, 2013

Yamaha     YFM 700 FGPDU Grizzly 4×4 Ducks          2007, 2008, 2009

Yamaha     YFM 700 FGPH Grizzly EPS 4×4 Hunter          2007, 2008, 2013

Yamaha     YFM 700 FGPOH Grizzly 4×4 Outdoorsman Edition          2007

Yamaha     YFM 700 FGPSE Grizzly EPS 4×4 SE          2007, 2008, 2009, 2010, 2011, 2012, 2013

Yamaha     YFM 700 PE Grizzly EPS 4×4          2014

Yamaha     YFM 700 PF Grizzly EPS 4×4          2015

Yamaha     YFM 700 PH Grizzly EPS 4×4 Hunter          2009, 2010, 2011, 2012, 2014, 2015

Yamaha     YFM 700 PS Grizzly EPS 4×4 SE          2014, 2015
