| Product Type | Stator Coil |
|---|---|
| Product Group | Ignition & Electrical Parts |
| Catalogue | ATV |
| Alternate SKU's | 28P-81410-00-00, 28P-81410-01-00, 340-58158, 3B4-81410-00-00, AT-01475, 44-9782.BR |

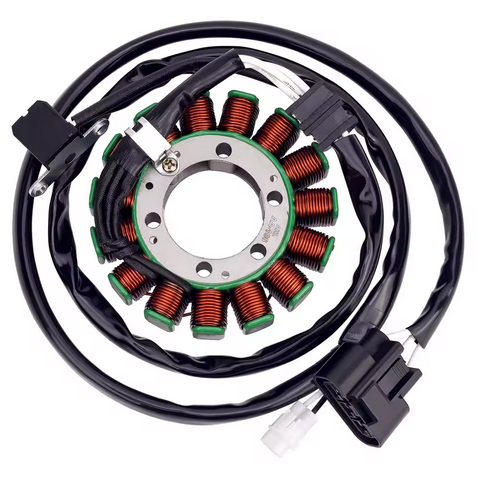

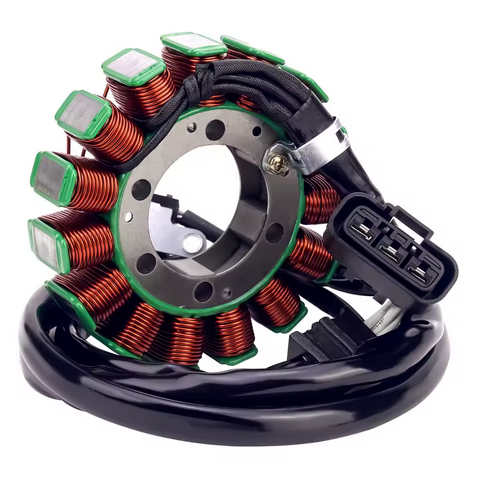

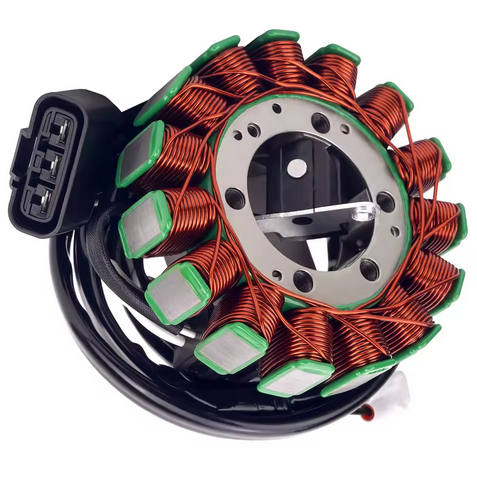

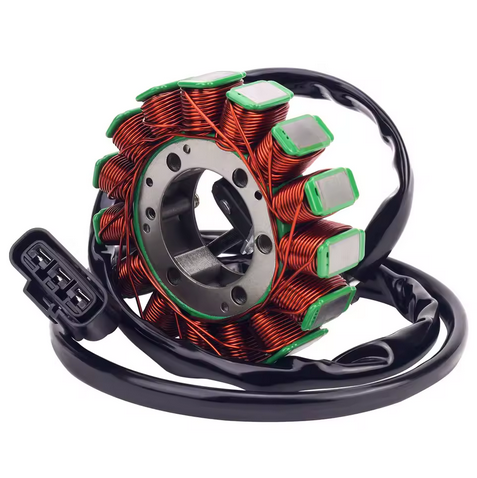

STATOR COIL YAMAHA YFM550 YFM700 28P-81410-00-00 28P-81410-01-00 3B4-81410-00-00
This stator coil is designed as a direct OEM replacement for various Yamaha YFM Grizzly 550 and 700 4×4 models. Built to handle increased power loads, it is manufactured to OEM specifications for precise fitment and reliable electrical performance. The unit is fully factory tested before shipping to ensure functionality and compatibility with stock mounting locations.
Features:
- Meets or exceeds OEM quality standards
- Direct OEM replacement
- Uses stock mounting locations
- Designed to handle increased power loads
- Matches original equipment in appearance
- 100% factory tested before shipping
- Electrical parts are non-returnable and not covered by warranty
- Reference image before ordering to avoid mistakes
Specifications:
- Interior diameter: 45mm
- Exterior diameter: 106mm
- Thickness: 27mm
- Length of wires stator to grommet: 100mm
- Length of wires grommet to plug: 550mm, 1100mm
- Length of pickup coil’s wire to grommet: 80mm
- Number of wires: 5
- Number of plugs: 2
- Number of pins: 5
Cross-Reference OEM Part Numbers
- 28P-81410-00-00
- 28P-81410-01-00
- 3B4-81410-00-00
Vehicle Fitments:
- Yamaha YFM 550 DE Grizzly 4×4 2014
- Yamaha YFM 550 DH Grizzly 4×4 Hunter 2014
- Yamaha YFM 550 FG Grizzly 4×4 2009, 2010–2013
- Yamaha YFM 550 FGH Grizzly 4×4 Hunter 2009–2013
- Yamaha YFM 550 FGP Grizzly EPS 4×4 2009–2013
- Yamaha YFM 550 FGPH Grizzly EPS 4×4 Hunter 2009–2013
- Yamaha YFM 550 FGPSE Grizzly 4×4 EPS SE 2009
- Yamaha YFM 550 PE Grizzly EPS 4×4 2014
- Yamaha YFM 550 PH Grizzly EPS 4×4 Hunter 2014
- Yamaha YFM 700 D Grizzly 4×4 2014–2015
- Yamaha YFM 700 DH Grizzly 4×4 Hunter 2014
- Yamaha YFM 700 FG Grizzly 4×4 2007–2013
- Yamaha YFM 700 FGH Grizzly 4×4 Hunter 2009–2013
- Yamaha YFM 700 FGP Grizzly EPS 4×4 2008–2013
- Yamaha YFM 700 FGPDU Grizzly 4×4 Ducks 2007–2009
- Yamaha YFM 700 FGPH Grizzly EPS 4×4 Hunter 2007–2013
- Yamaha YFM 700 FGPOH Grizzly 4×4 Outdoorsman Edition 2007
- Yamaha YFM 700 FGPSE Grizzly EPS 4×4 SE 2007–2013
- Yamaha YFM 700 PE Grizzly EPS 4×4 2014
- Yamaha YFM 700 PF Grizzly EPS 4×4 2015
- Yamaha YFM 700 PH Grizzly EPS 4×4 Hunter 2009–2015
- Yamaha YFM 700 PS Grizzly EPS 4×4 SE 2014–2015
