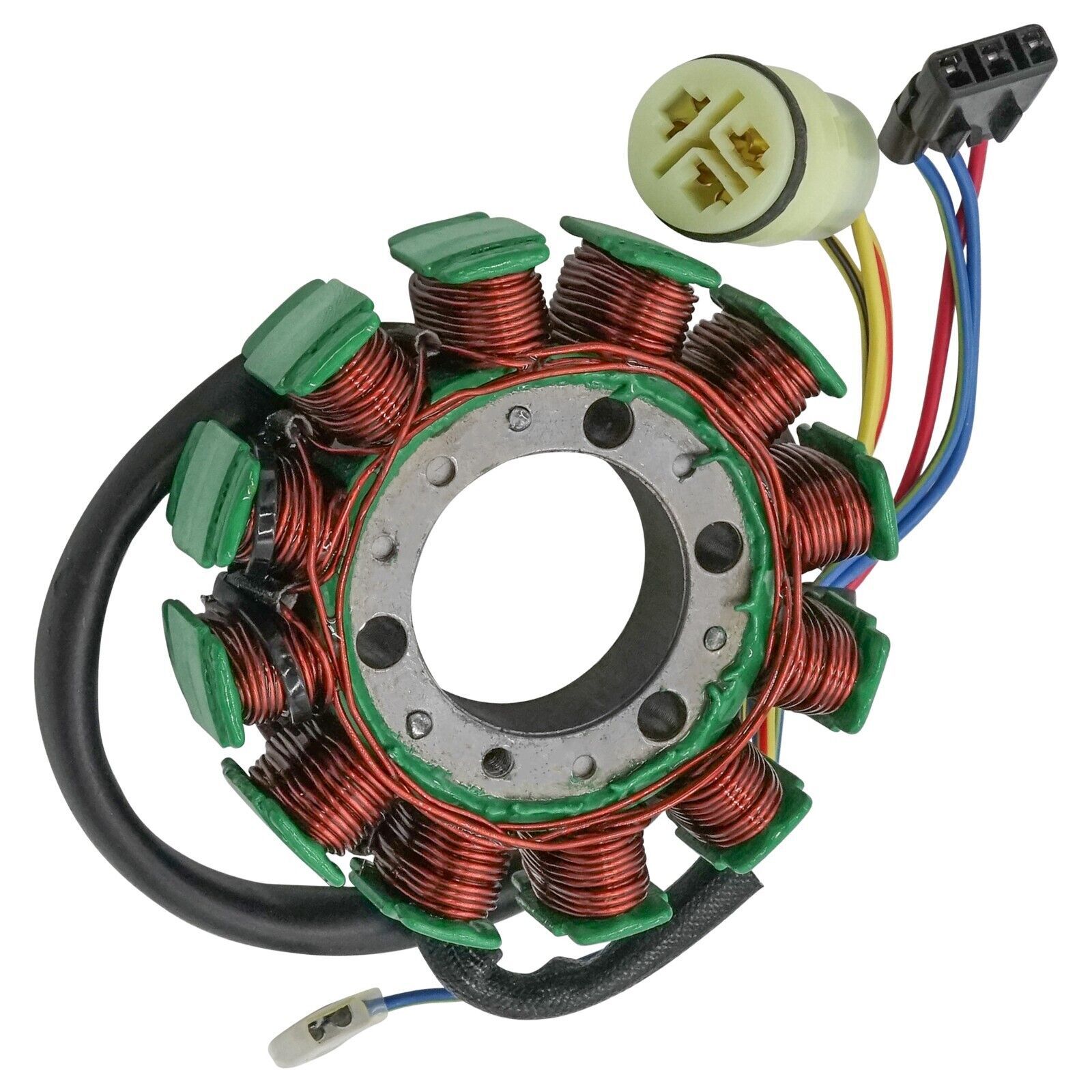

STATOR COIL 88-00 HONDA TRX 300 FOURTRAX 12-POLE 31120-HC4-014 31120-HC4-004

This stator is a premium-quality replacement for Honda magneto stators, specifically designed as the 12-pole variant compatible with part numbers 31120-HC4-014 and 31120-HC4-004.

Features

• Compatible replacement for Honda models TRX300 Fourtrax 300 (1988–1990, 1992–2000) and TRX300FW Fourtrax 300 (1988, 1990, 1992–2000)
• Designed exclusively for 12-pole configuration; not compatible with 18-pole version
• Premium copper windings capable of withstanding up to 200?°C

Specifications

• Length: 96.7?mm
• Width: 96.7?mm
• Height (thickness): 13.5?mm

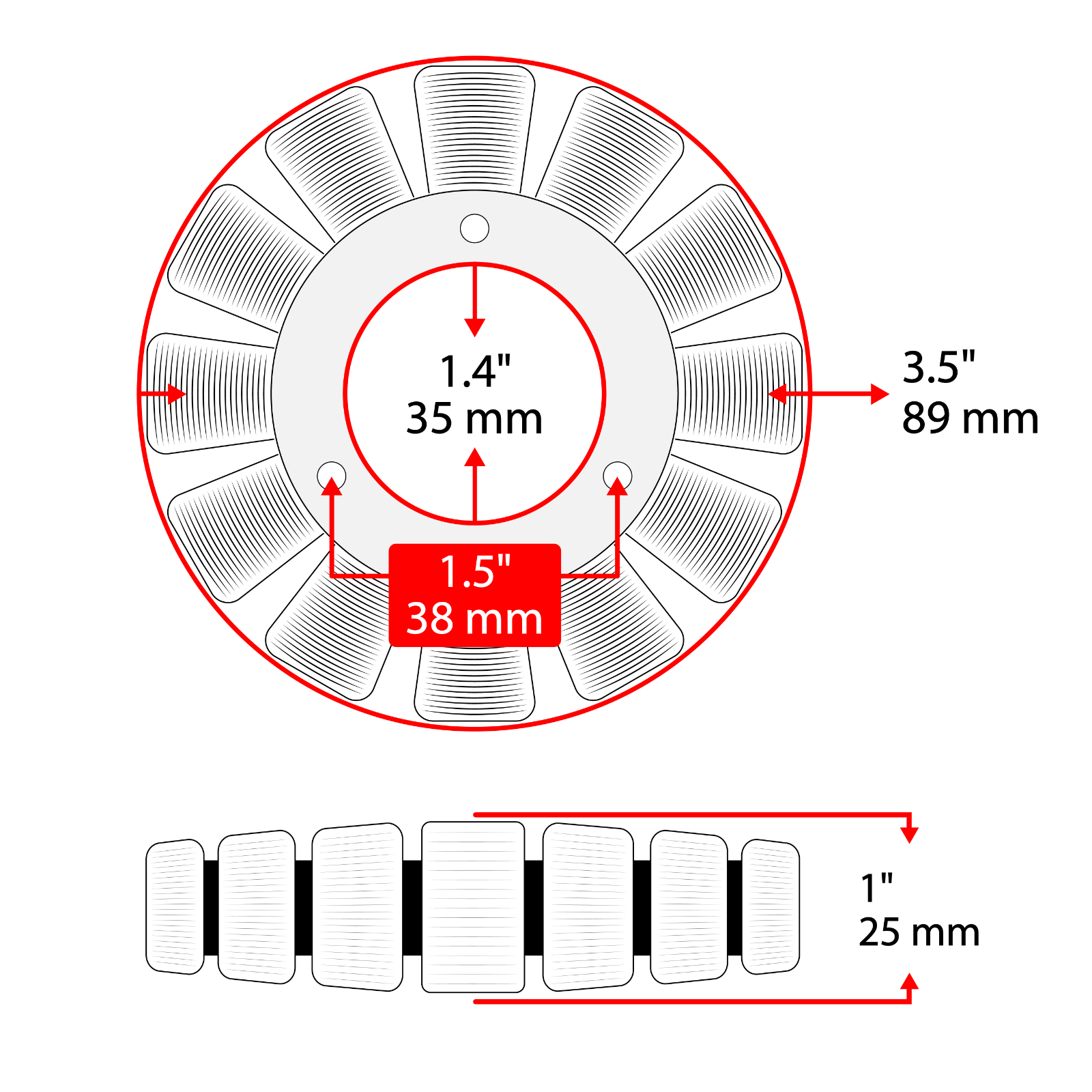

• Dimensions from other sources (as a check): interior diameter ~34?mm; exterior diameter ~88?mm; thickness ~15?mm
• Wiring: typically six wires and six pins; pickups included in some variants

Cross-Reference OEM Part Numbers

• Honda: 31120-HC4-003, 31120-HC4-004, 31120-HC4-014, 31120-HC4-750

Vehicle Fitments

• Honda TRX300 Fourtrax 300: 1988–2000
• Honda TRX300FW Fourtrax 300 (4×4): 1988–2000
