| Product Type | Stator Coil |
|---|---|
| Product Group | Ignition & Electrical Parts |
| Catalogue | DIRT |
| Alternate SKU's | 31120-MEN-003, 31120-MEN-000 |

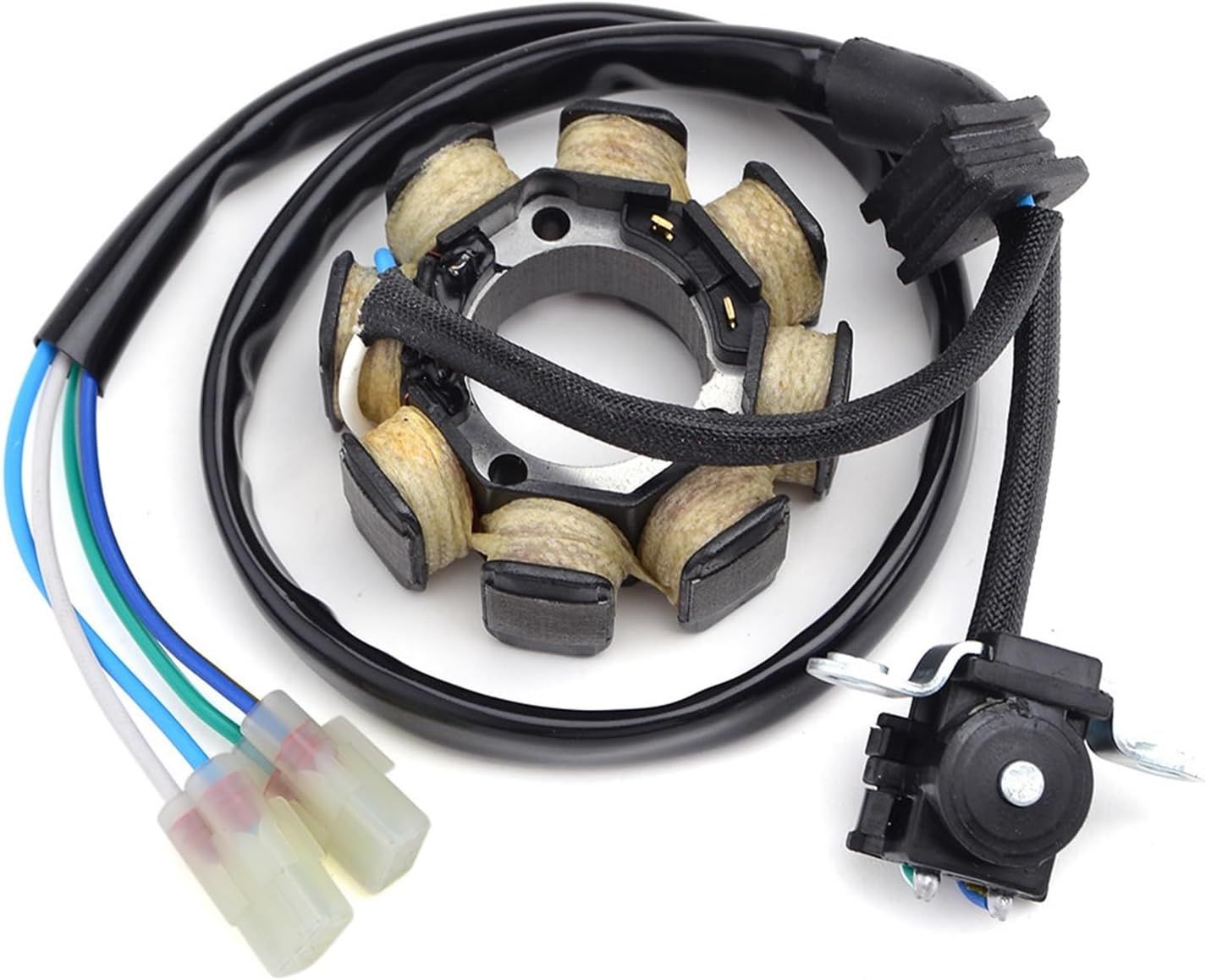

STATOR COIL 2004 HONDA CRF450 CRF 450 R 31120-MEN-003
Honda Compatibility List:
- CRF 450 2004
- CRF 450R 2004
Dimensions:
- Interior diameter : 28mm
- Exterior diameter : 60mm
- Thickness : 14mm
- Length of wires stator to grommet : 120mm
- Length of wires grommet to plug : 400mm
- Length of pickup coil’s wire to grommet : 70mm
Specifications :
- Number of wires : 4
- Number of plugs : 0
- Number of pins : 4
Wire to wire resistance :
- Pickup : White/green to Blue/yellow = 285 ohms +/-20%
- Source : Blue to White = 23 ohms +/-20%
Cross reference numbers ONLY.
- 31120-MEN-000
- 31120-MEN-003
