STATOR COIL 1982-2001 KAWASAKI KZ 1000 P POLICE 21003-1040 21003-1327

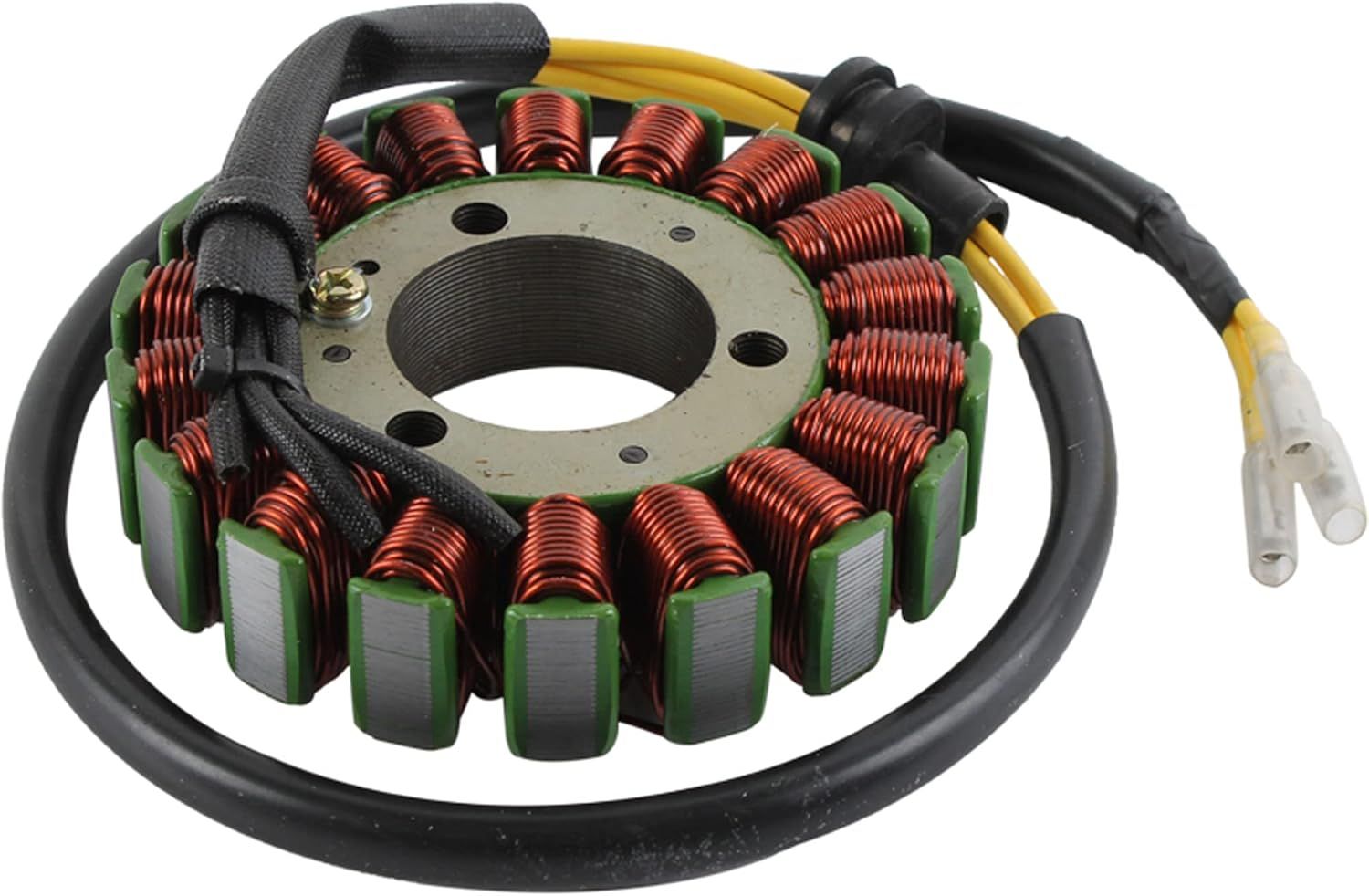

Alternator stator assembly for Kawasaki KZ1000 Police (KZ1000P) models from 1982 to 2001. Designed as a direct-fit replacement charging coil with proven compatibility across selected KZ1000 and KZ1100 variants.

Features

• Direct-fit replacement for the original stator
• Suitable for Kawasaki KZ1000 Police 1982–2001 with extended compatibility across selected KZ1000/KZ1100 variants

Specifications

• System voltage: 12 V
• Phasing: 3-phase AC
• Lamination stack inner diameter: 38 mm
• Lamination stack outer diameter: 102 mm
• Lamination stack thickness: 22.5 mm
• Lead count and colour: 3 × yellow
• Continuity/resistance (typical): ~0.9 Ω ±20% between any two yellow leads; open circuit (no continuity) from any yellow lead to ground

Cross-Reference OEM Part Numbers

• Kawasaki 21003-1040
• Kawasaki 21003-1327
• Arrowhead AKI4001
• Tucker Rocky 463952
• Tucker Rocky 46-3952
• 7299-2101
• HX MG066

Vehicle Fitments

• Kawasaki KZ1000P Police 1982–2001
• Kawasaki KZ1000J 1981–1983
• Kawasaki KZ1000K (LTD) 1981–1982
• Kawasaki KZ1000M CSR 1981–1982
• Kawasaki KZ1000R (Lawson Replica) 1982–1983
• Kawasaki KZ1100 1981–1983
• Kawasaki KZ1100A/B (GPz/Spectre, shaft) 1981–1983
• Kawasaki KZ1100D 1982–1983
• Kawasaki KZ1100L 1983
• Kawasaki ZN1100B 1984–1985
• Kawasaki ZX1100A 1983–1984
