STARTER MOTOR TRX420, HONDA ATV 31200-HP5-601, SMU0418

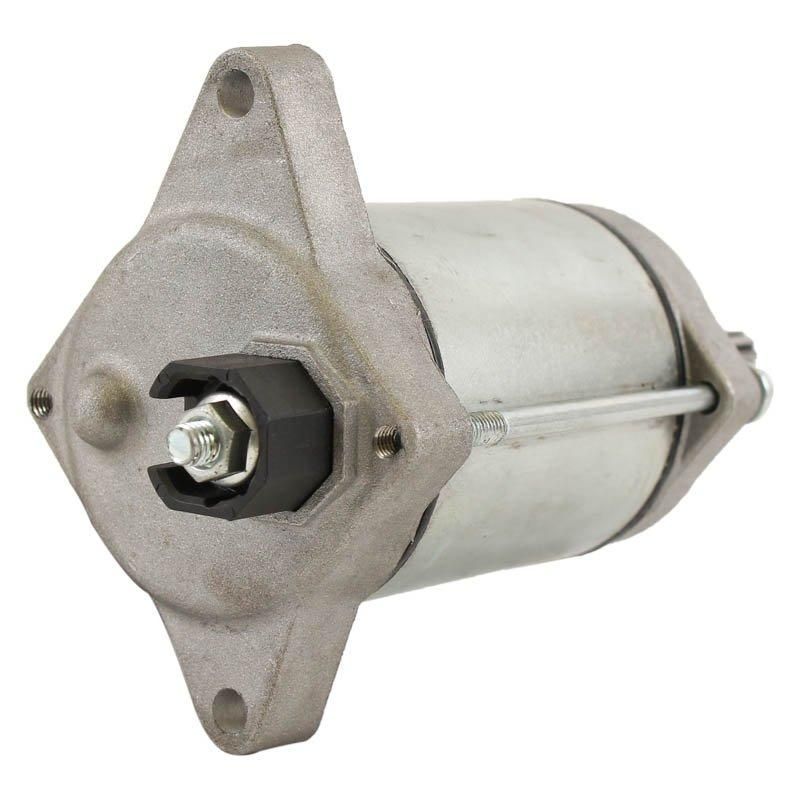

Starter Motor [SMU0418]

Product Specifications:

• Type: Permanent Magnet Direct Drive (PMDD)
• Voltage: 12V
• Rotation: Counter Clockwise (CCW)
• Teeth: 9
• Shaft Outer Diameter at Splines: 11.5 mm
• Registration Outer Diameter: 29.9 mm
• Flange-to-Rear Length: 97 mm (Not Including Stud)
• Mounting Holes: 2 x 6.5 mm ID Unthreaded
• Center-to-Center Distance: 88.3 mm
• B+ Stud Size: 6 mm x 1.0

Manufacturer:

• Brand: Honda

Compatible Models:

• HONDA TRX420 FM/TM Fourtrax (2007-2019)
• HONDA TRX420 FE/TM Fourtrax (2007-2019)
• HONDA TRX420 FA Fourtrax (2009-2019)
• HONDA TRX500 FA Foreman (2015-2019)
• HONDA TRX500 FE/FM Foreman (2012-2019)
• HONDA TRX500 FPE/FPM Foreman (2012-2013)
• HONDA Pioneer 500 (2017-2019)

Part Number:

• Part No.: 19-1844 (distributed by oro2u.com)

Cross Reference Numbers:

• 31200-HR0-F01
• 31200-HP5-601
• 61-131
• SMU0418 (Arrowhead)
• 410-54135 (J & N)
• 18921 (Lester)
• 191-601 (PIC)
• 22-5797 (BBB Small Motor)
• STH0418 (Hi Level)
• 31200-HP5-601 (Honda)
• SM18 (Mitsuba)
• RN5797 (NAPA Small Motor)
• 495797 (Tucker Rocky)
• 49-5797 (Tucker Rocky)
• 71-09-5797 (Wilson Small Engine)
