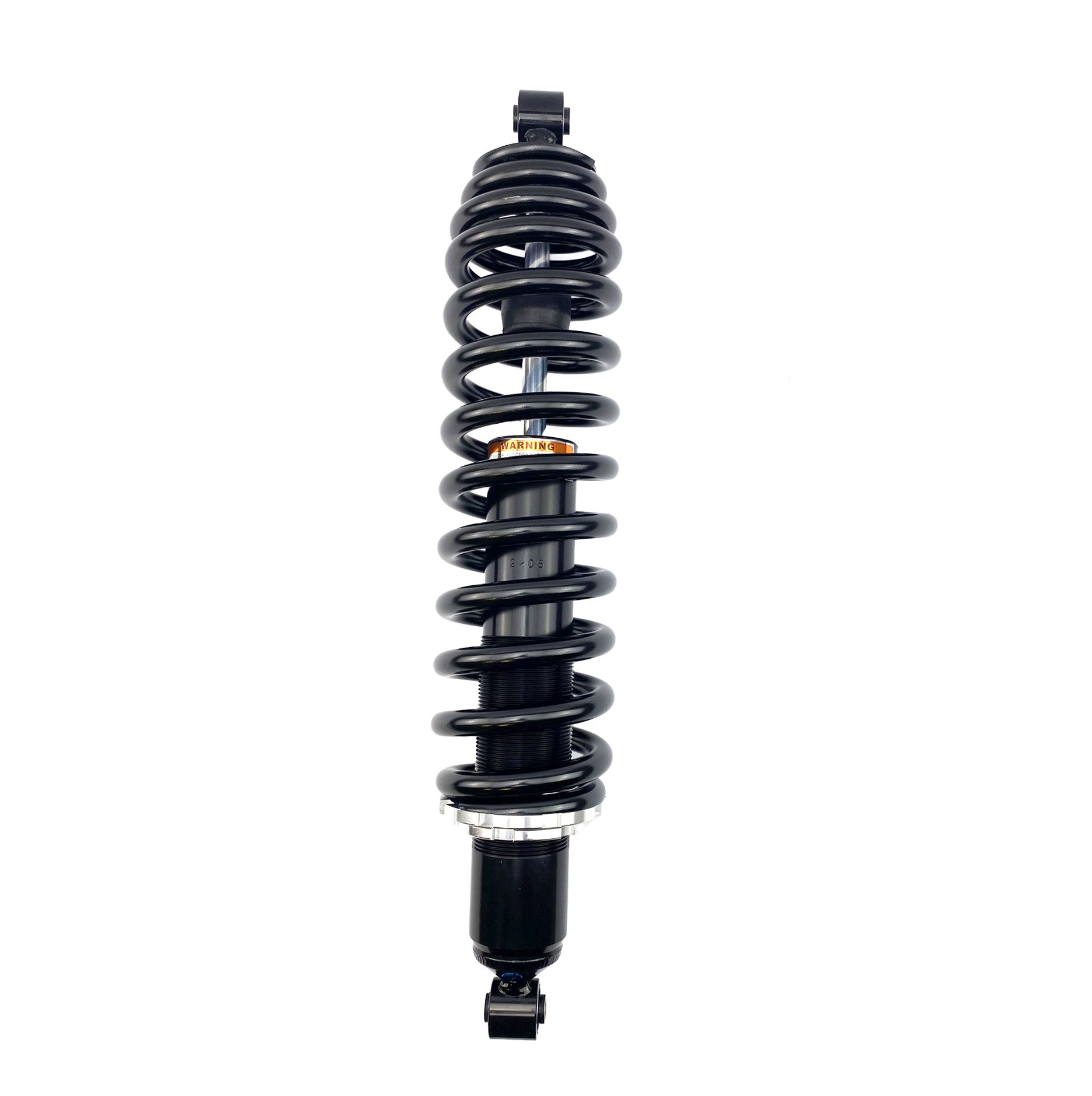

SHOCK REAR CAN AM UTV HD5 17-19, BRONCO AU-04470, 706002578

BRONCO HEAVY DUTY GAS SHOCKS AU-04470

• Bronco gas shocks offer long-term consistent performance over stock oil-only damped shocks.
• 10% stiffer springs provide a better ride and higher load capacity.
• Works great on the front when installing a snow plow.
• Smooth black color blends perfectly with any OEM ATV.
• Direct bolt-on replacement: pre-installed spring allows for shock to be ready to mount right out of the box.
• Sold individually – Includes one shock, with spring, and spring retainers.

CAN-AM FITMENT

• DEFENDER HD5 (2017-2019)
• TRAXTER HD5 (2017-2019)

SPECIFICATIONS

• Position Top Hole I.D (mm): 10
• Top Eyelet Width (mm): 32
• Bottom Hole I.D (mm): 10
• Bottom Eyelet Width (mm): 32
• Tube O.D (mm): 57
• Stroke (mm): 139
• Spring O.D (mm): 98
• Spring Wire Diameter (mm): 12.8
• Spring Rate (lbs/inch): –
• Spring Rate (kg/mm): –
• Center to Center (mm): 482
• Center to Center (inches): 19
