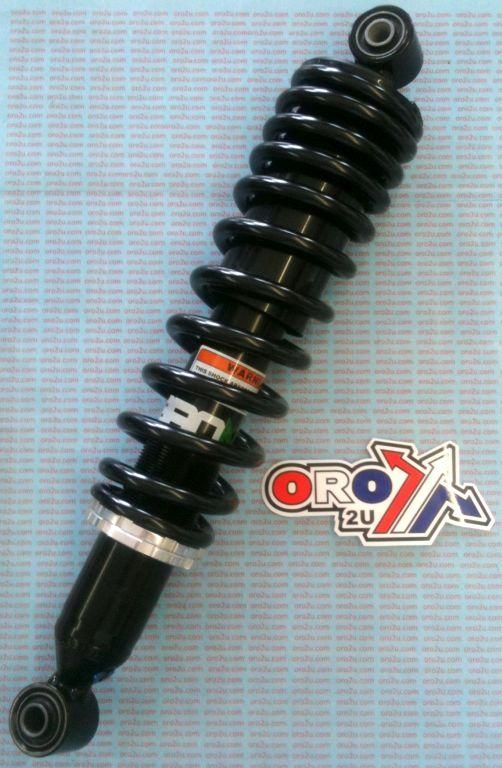

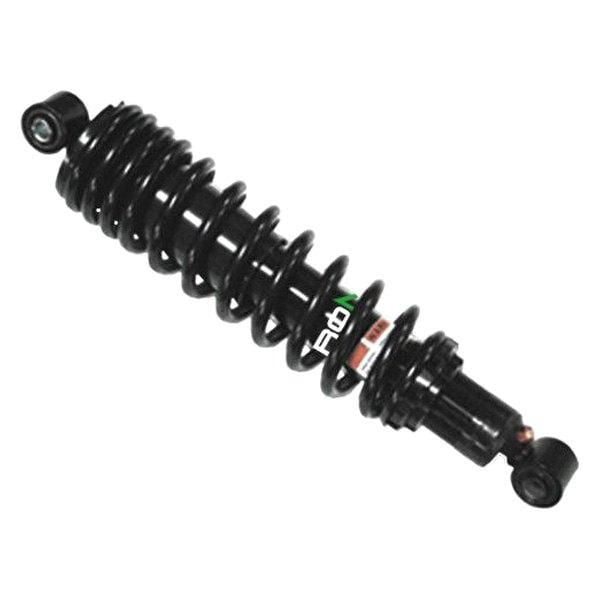

SHOCK FRONT TRX300FW BRONCO, AU-04205, 51400-HC5-970, 333mm

BRONCO HEAVY DUTY GAS SHOCKS AU-04204

Fits ATV Models:

•  TRX300FW 4X4 1993-97

Bronco gas shocks offer long term consistent performance over stock oil only damped shocks
10% stiffer springs provide a better ride and higher load capacity
Works great on the front when installing a snow plow
Smooth black color blends perfectly with any OEM ATV
Direct bolt-on replacement: pre-installed spring allows for shock to be ready to mount right out of the box
Sold individually – Includes one shock, with spring, and spring retainers

SPECIFICATIONS

• POSITION TOP HOLE I.D MM: 10
• TOP EYELET WIDTH MM: 27.5
• BOTTOM HOLE I.D MM: 10
• BOTTOM EYELET WIDTH MM: 32
• TUBE O.D MM: 36
• STROKE MM: 95
• SPRING OD MM: 64
• SPRING WIRE DIAMETER MM: 9
• SPRING RATE LBS/INCH: 146
• SPRING RATE KG/MM: 2.60
• CENTER TO CENTER MM: 333
• CENTER TO CENTER IN: 13 1/9

OEM Cross-reference Numbers Only: 51400-HC5-970
