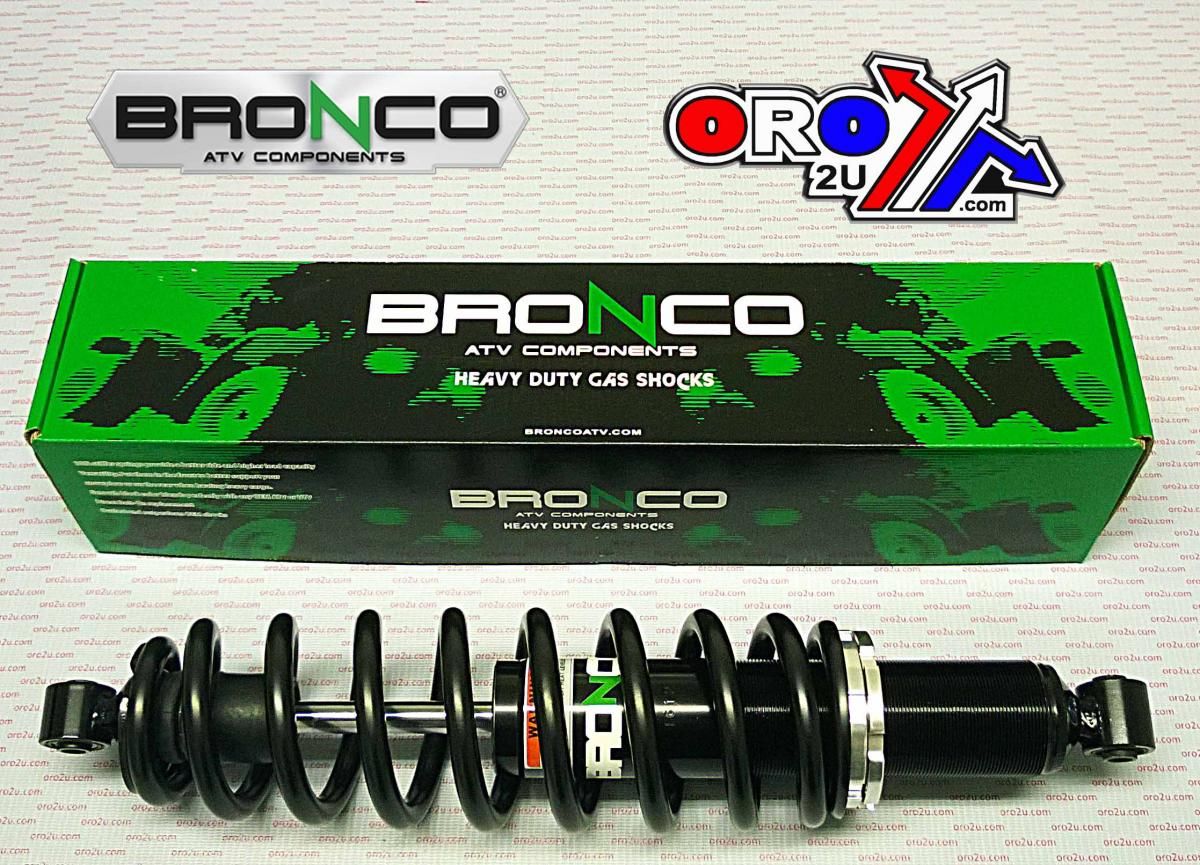

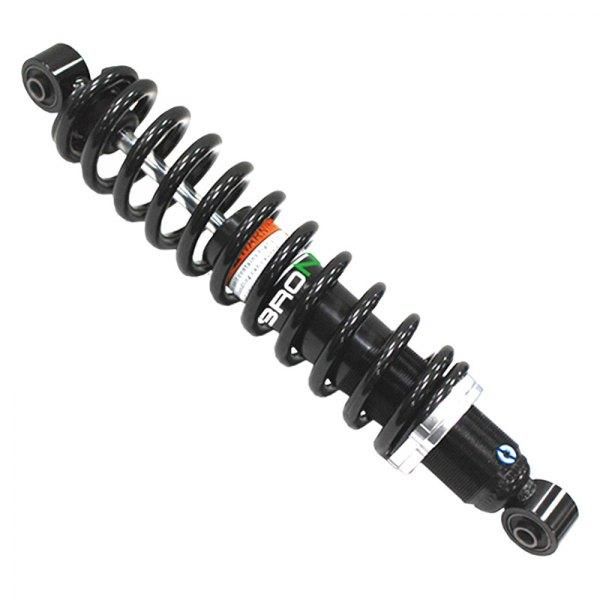

SHOCK FRONT POLARIS 447MM RANGER, BRONCO AU-04336

BRONCO HEAVY DUTY GAS SHOCKS AU-04336

Bronco gas shocks provide long-term, consistent performance, offering a superior ride compared to stock oil-only damped shocks.

• 10% Stiffer Springs: Enhances ride quality and load capacity.
• Snow Plow Ready: Ideal for use on the front when installing a snow plow.
• Sleek Black Finish: Blends seamlessly with any OEM or aftermarket ATV/UTV.
• Direct Bolt-On Replacement: Pre-installed spring for quick and easy installation.
• Sold Individually: Includes one shock with spring and spring retainers.

FITMENT:

• RANGER 700 4X4 EFI ALL (2009)
• RANGER 800 4X4 EFI ALL (2010 – 2014)
• RANGER 800 4X4 EFI CREW (2010 – 2014)
• RANGER 800 6X6 (2010 – 2016)
• RANGER 4X4 900 DIESEL / DIESEL CREW (2011 – 2014)

SPECIFICATIONS:

• Position Top Hole I.D: 10 mm
• Top Eyelet Width: 30 mm
• Bottom Hole I.D: 10 mm
• Bottom Eyelet Width: 35.5 mm
• Tube O.D: 50.8 mm
• Stroke: 149 mm
• Spring O.D: 95 mm
• Spring Wire Diameter: 11.6 mm
• Spring Rate: 258 lbs/inch
• Spring Rate: 4.60 kg/mm
• Center to Center: 448 mm (17 2/3 inches)

Part No. 29-5803 (Available at oro2u.com)

Cross-reference Numbers:

• AU-04336

These Bronco heavy-duty gas shocks are engineered for Polaris Ranger models, delivering improved ride quality, load-bearing capacity, and performance for both work and recreational purposes.
