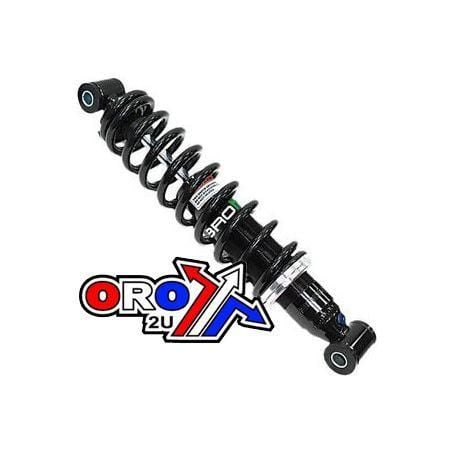

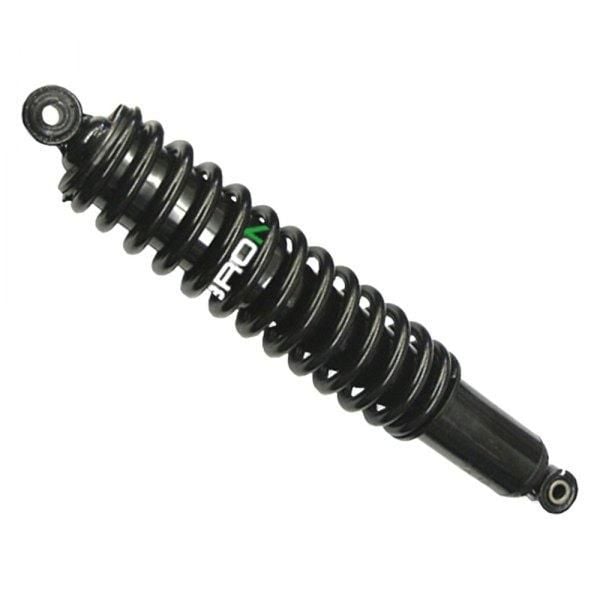

SHOCK ATV REAR 396mm BRONCO, BRONCO AU-04254

BRONCO HEAVY DUTY GAS SHOCKS AU-04254

HONDA
2006 Honda TRX350FE FourTrax Rancher 4×4 ES,,
2006 Honda TRX350FM FourTrax Rancher 4X4,,
2006 Honda TRX350TE FourTrax Rancher ES,,
2006 Honda TRX350TM FourTrax Rancher,,

Bronco gas shocks offer long term consistent performance over stock oil only damped shocks. 10% stiffer springs provide a better ride and higher load capacity
Works great on the front when installing a snow plow
Smooth black color blends perfectly with any OEM ATV
Direct bolt-on replacement: pre-installed spring allows for shock to be ready to mount right out of the box
Sold individually – Includes one shock, with spring, and spring retainers

SPECIFICATIONS

• POSITION TOP HOLE I.D MM: 10
• TOP EYELET WIDTH MM: 32
• BOTTOM HOLE I.D MM: 10
• BOTTOM EYELET WIDTH MM: 32
• TUBE O.D MM: 44
• STROKE MM: 90.5
• SPRING OD MM: 70
• SPRING WIRE DIAMETER MM: 9.5
• SPRING RATE LBS/INCH: 221
• SPRING RATE KG/MM: 3.95
• CENTER TO CENTER MM: 396
• CENTER TO CENTER IN: 15 3/5

OEM Cross-reference Numbers Only:
52400-HN4-M61 52400-HN5-N01 52400-HN5-970
