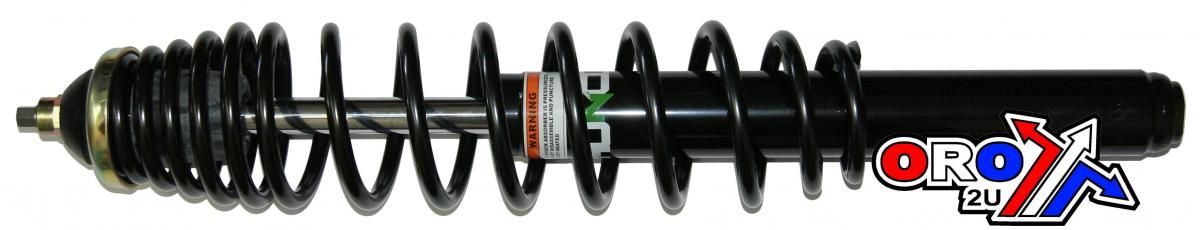

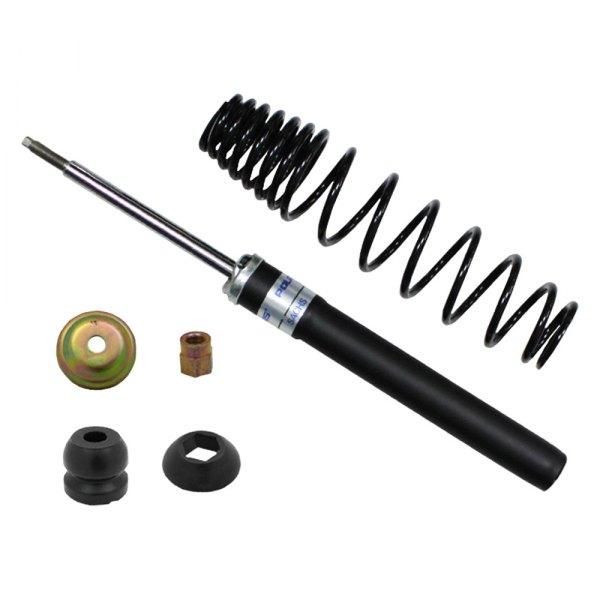

SHOCK ATV FRONT POLARIS, BRONCO AU-04315

FITMENT:

• TRAIL BLAZER 250 2003
• TRAIL BLAZER 250 2005-06
• XPLORER 250 2002
• HAWKEYE 325 2X4 2015
• TRAIL BOSS 330 2010-13
• TRAIL BLAZER 330 2008-13
• HAWKEYE 400 HO 2X4 2011-14
• SCRAMBLER 400 ALL 1999-02
• SPORTSMAN 400 2005
• SPORTSMAN 400 2005
• TRAIL BLAZER 400 2003
• SPORTSMAN 400 HO 4X4 2011-14
• SPORTSMAN 450 2006
• SPORTSMAN 450 2006
• SPORTSMAN 450 2007
• SPORTSMAN 450 ALL 2016-20
• SCRAMBLER 500 1999-12
• SCRAMBLER 500 2005-12
• SPORTSMAN 500 EFI 2006-09
• SPORTSMAN 500 EFI TRACTOR 2009-10
• SPORTSMAN FOREST 500 2011-13
• SPORTSMAN FOREST TRACTOR 500/EFI 2011-14
• SPORTSMAN 500 HD 2013
• SPORTSMAN 500 HO 2005
• SPORTSMAN 500 HO 2005
• SPORTSMAN 500 HO 2006
• SPORTSMAN 500 HO 2006
• SPORTSMAN 500 HO 2007-13
• SPORTSMAN 500 HO MILITARY TACOM 2009
• SPORTSMAN TOURING 500 EFI/HO 2008-13
• SPORTSMAN X2 500 EFI 2006-07
• SPORTSMAN X2 500 EFI 2008-09
• SPORTSMAN 570 ALL EXCEPT SP/6X6 2014-20
• SPORTSMAN 570 6X6 2017-21
• SPORTSMAN 600 2005
• SPORTSMAN 600 2005
• SPORTSMAN 700 2005
• SPORTSMAN 700 2005
• SPORTSMAN 700 2006
• SPORTSMAN 700 2006
• SPORTSMAN 700 2007
• SPORTSMAN X2 700 EFI 2008
• SPORTSMAN MV 7 2005
• SPORTSMAN 800 EFI 2005
• SPORTSMAN 800 EFI 2007-14
• SPORTSMAN 800 EFI HO 2008-09
• SPORTSMAN 800 EFI HO MILITARY 2008
• SPORTSMAN 800 EFI FOREST 2012-14
• SPORTSMAN 800 EFI TACOM 2013-16
• SPORTSMAN 800 6X6 ALL 2009-15
• SPORTSMAN TOURING 800 EFI 2008-09
• SPORTSMAN X2 800 EFI 2007
• SPORTSMAN X2 800 EFI 2008-09
• ACE 325 2014-16
• ACE 500 2017-18
• RANGER 500 2X4,4X4 (LONG TRAVEL) 2003-04
• RANGER 500 XP 2005
• RANGER 500 2X4 2006-09
• RANGER 500 4X4 2006-08
• ACE 570 2015-19
• RANGER 700 XP 4X4 2006-08
• RANGER 700 4X4 EFI CREW 2007
• RANGER 700 4X4 EFI CREW 2008-09
• RANGER 700 6X6 EFI (LONG TRAVEL) 2006-09
• ACE 900 EFI 2016



SPECIFICATIONS

• POSITION TOP HOLE I.D MM: 12.5 X 36 THREADED ROD
• TOP EYELET WIDTH MM: 12.5 X 36 THREADED ROD
• BOTTOM HOLE I.D MM: NA
• BOTTOM EYELET WIDTH MM: NA
• TUBE O.D MM: 41.4
• STROKE MM: 173
• SPRING OD MM: 91.5
• SPRING WIRE DIAMETER MM: 8.7
• SPRING RATE LBS/INCH: –
• SPRING RATE KG/MM: –
• CENTER TO CENTER MM: 561
• CENTER TO CENTER IN: 22





PART NO 29-5780 (OFF ROAD ONLY)

KIMPLEX/OEM REF; 7041762
