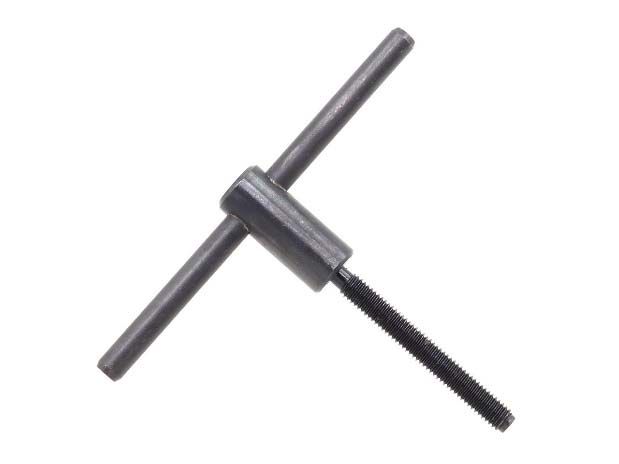

SECONDARY DRIVEN CLUTCH EXPANDER TOOL M6x1.00 CF MOTO OJWF-052000-922-003 AT-12246-1

The Driven Pulley Expander AT-12246-1 is designed for servicing CVT systems by facilitating the expansion of the driven pulley, allowing for easier belt installation or removal. This tool features a 100mm handle length with a 6.3mm outer diameter and an M8 x P1.25 x 50mm threaded section. Constructed from durable S45C material, it is compatible with a broad range of ATV and UTV models.

Features

• Enables expansion of the driven pulley for CVT maintenance

• Compatible with various ATV and UTV models

• Durable S45C construction

Specifications

• Handle Length: 100mm

• Outer Diameter: 6.3mm

• Thread: M8 x P1.25 x 50mm

• Material: S45C

Cross-Reference OEM Part Numbers

• AT-12246-1

Vehicle Fitments

• CFMOTO

  • CFORCE 800 2024-2025

  • CFORCE 1000 2024-2025

  • 1000 U10 PRO 2025

  • 1000 U10 PRO XL 2025
