SECONDARY DRIVE CLUTCH 21-22 POLARIS RZR XP PRO 1327121 1323811

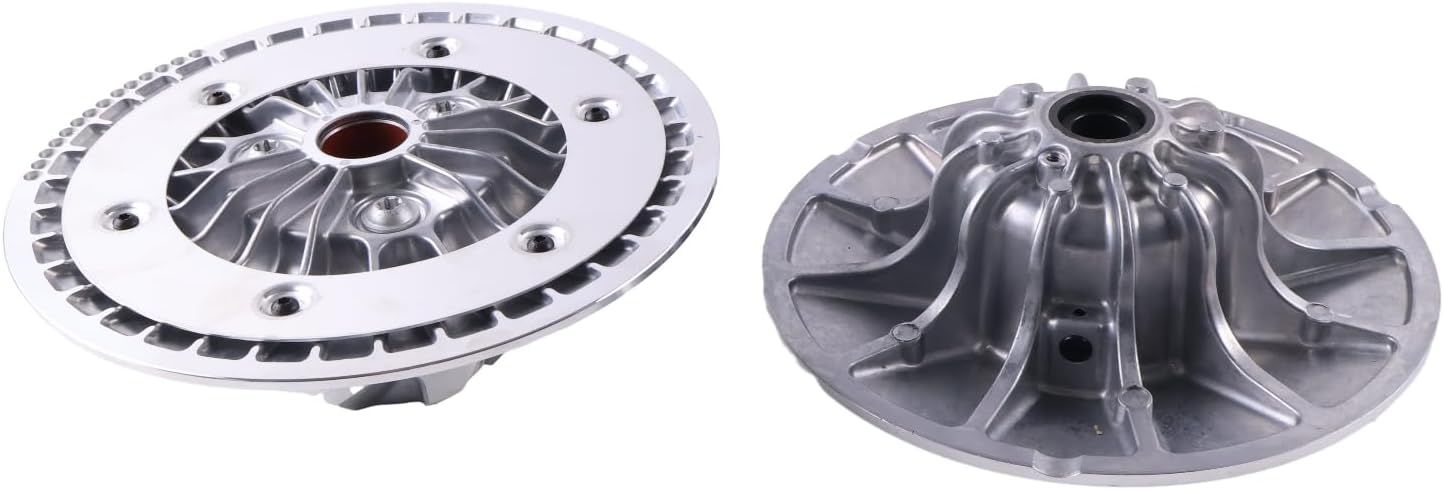

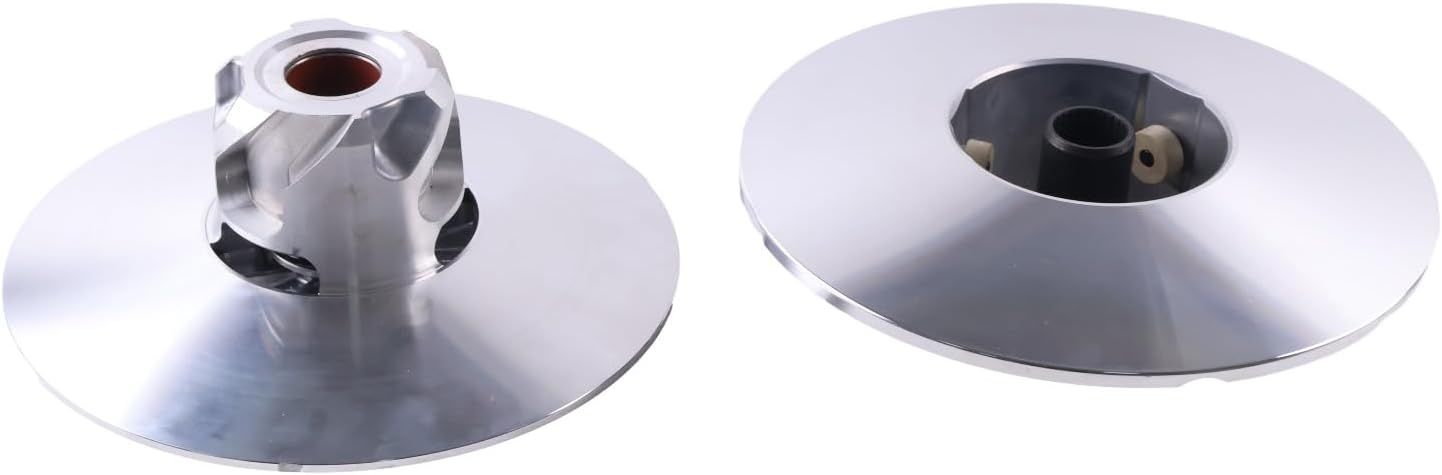

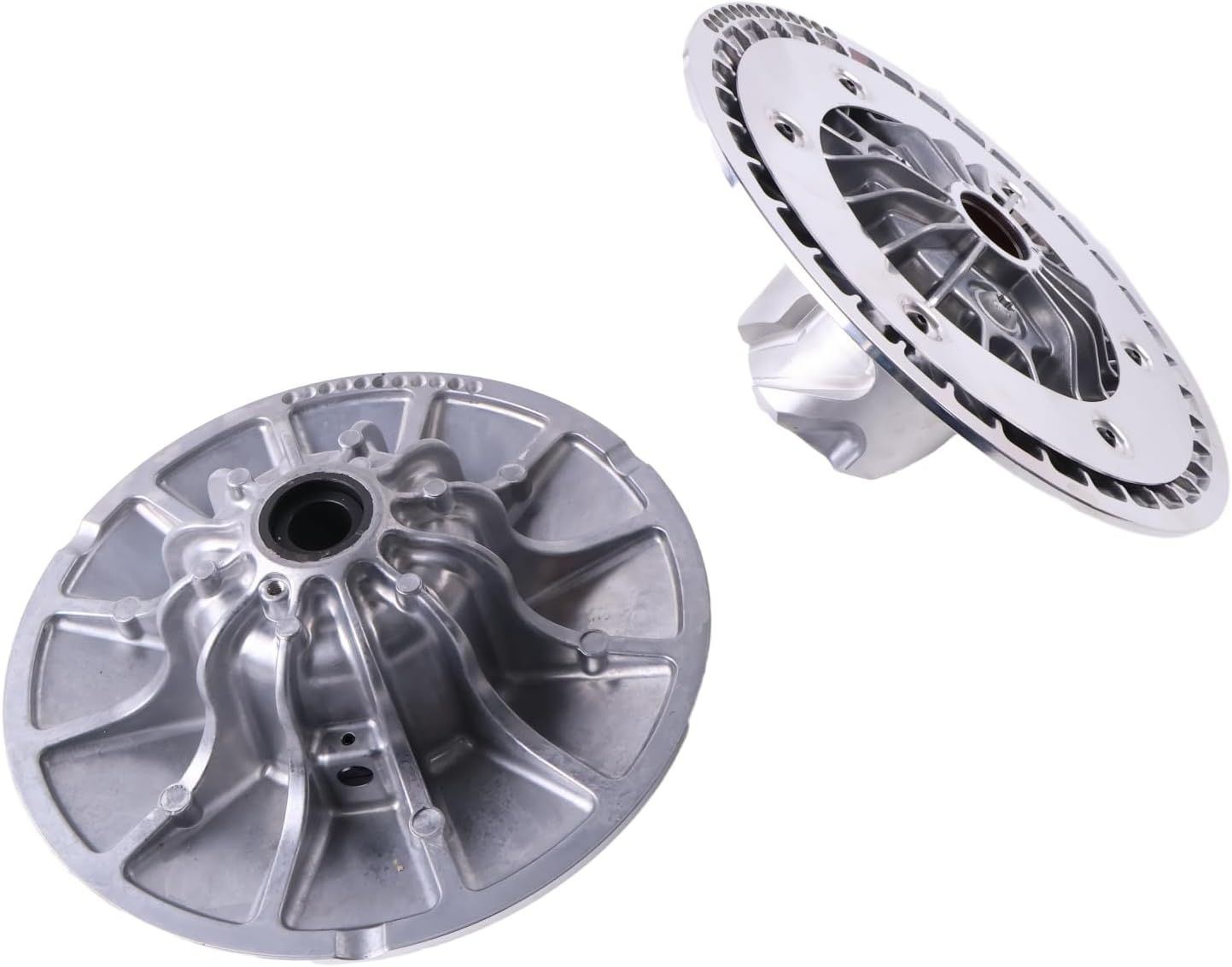

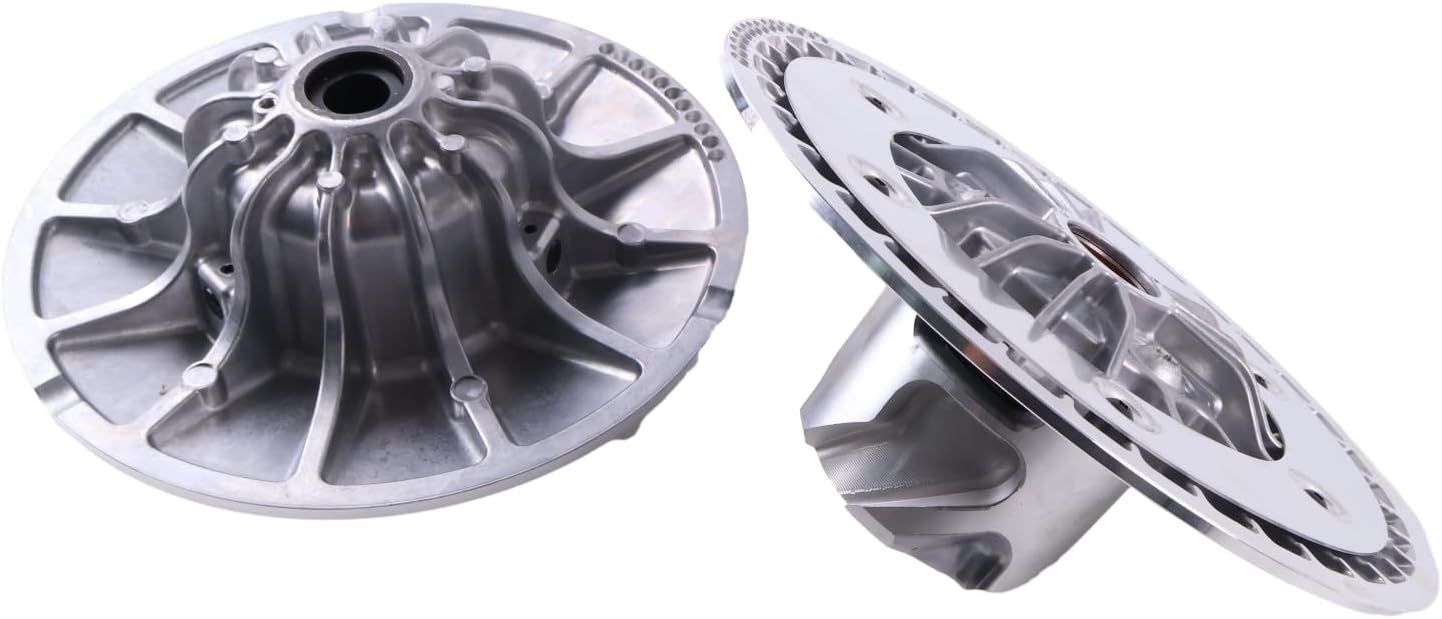

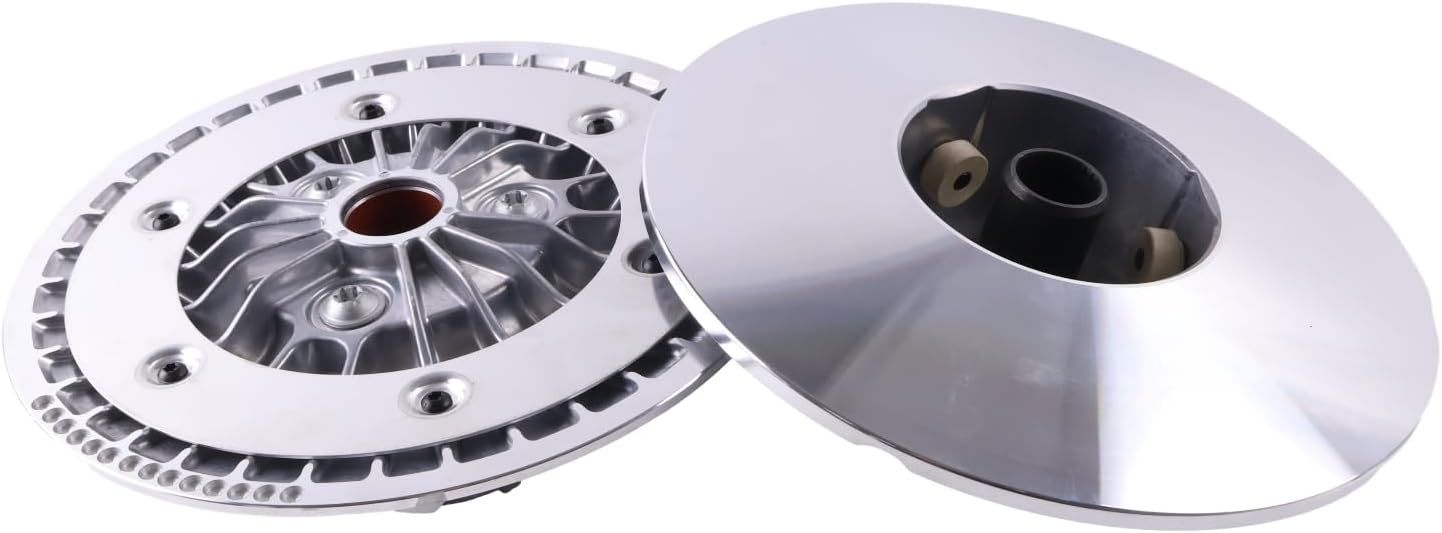

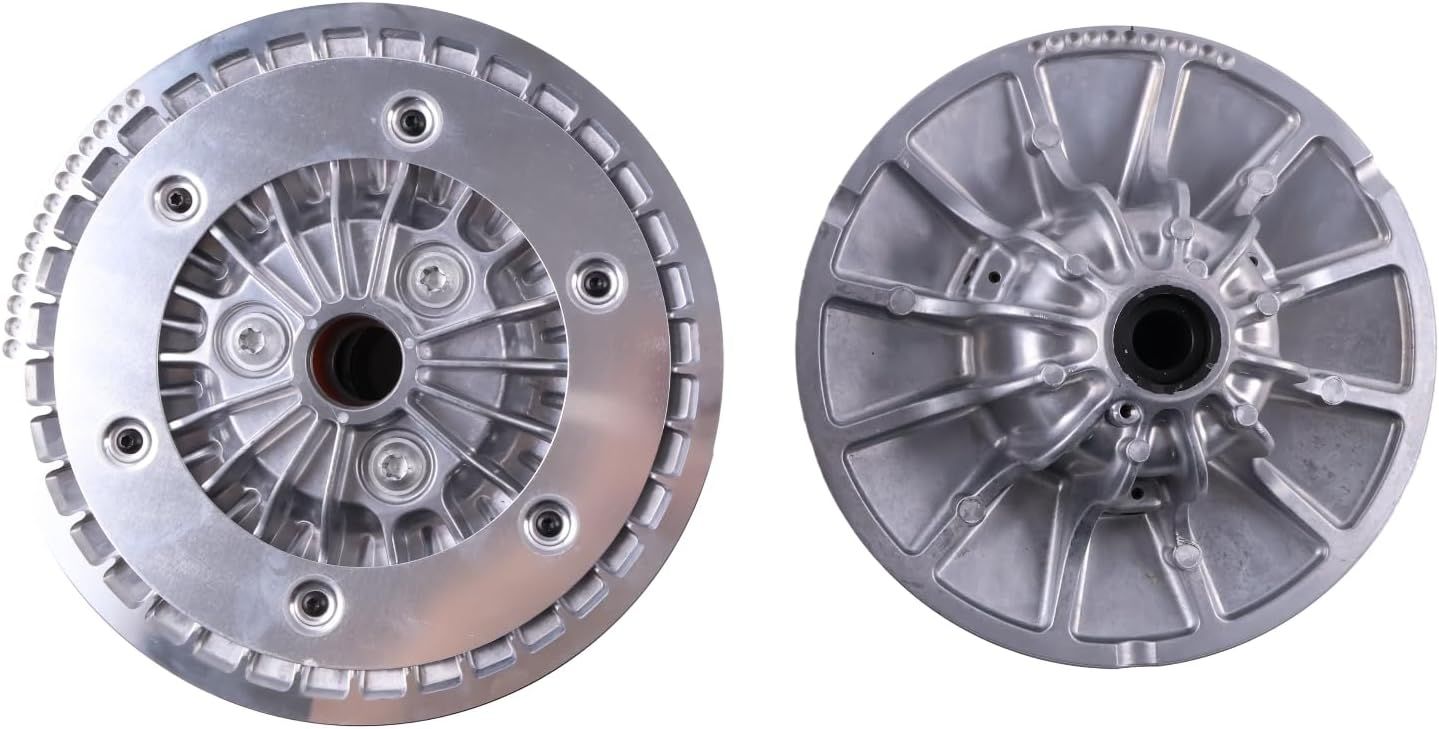

This P90X HD secondary (driven) clutch is specified for Polaris RZR Pro XP models in the 2021–2022 model years. It corresponds to the stationary driven assembly (1327121) and the moveable driven assembly (1323811) used on these vehicles and is a direct-fit replacement to restore correct transmission operation. Polaris parts catalogues for both 2-seat and 4-seat trims list the same internal components for these years, confirming identical internals and calibration across Pro XP and Pro XP 4.

Features

• P90X HD secondary driven clutch components for 2021–2022 RZR Pro XP drivetrains
• Direct bolt-on replacement matching factory calibration and geometry
• Stationary driven assembly and moveable driven assembly referenced for correct half identification
• Compatible with the P90X helix and torsion spring specified for these model years
• Not suitable for 2020 Pro XP models

Specifications

• Type: Secondary (driven) clutch, P90X HD configuration
• Assemblies referenced: Stationary driven assembly 1327121; Moveable driven assembly 1323811
• Associated components: Helix 1323830; Torsion spring 7045664
• Supersession context: Stationary half uses the HD “STAT” assembly; moveable half uses the HD “MOVEABLE” assembly per P90X specification

Cross-Reference OEM Part Numbers

• 1327121 (ASM-DRIVEN, STAT, P90X, HD)
• 1323811 (ASM-DRIVEN, MOVEABLE, P90X, HD)
• 1323810 (earlier stationary assembly superseded by 1327121)
• 1327102 (later HD stationary assembly that supersedes 1327121)
• 1323829 (later HD moveable assembly that supersedes 1323811)
• 1323812 (bare moveable bottom sheave used with this clutch family)
• 1323830 (helix; updates 1323772)
• 1323772 (earlier helix superseded by 1323830)
• 7045664 (torsion spring; updates 7045644)
• 7045644 (earlier torsion spring superseded by 7045664)

Vehicle Fitments

• Polaris RZR Pro XP (2021–2022) Sport
• Polaris RZR Pro XP (2021–2022) Premium
• Polaris RZR Pro XP (2021–2022) Ultimate
• Polaris RZR Pro XP (2021–2022) Rockford Fosgate Limited Edition
• Polaris RZR Pro XP 4 (2021–2022) Sport
• Polaris RZR Pro XP 4 (2021–2022) Premium
• Polaris RZR Pro XP 4 (2021–2022) Ultimate
• Polaris RZR Pro XP 4 (2021–2022) Rockford Fosgate Limited Edition
