| Product Type | Throttle Conversion Kit |
|---|---|
| Product Group | Handlebar & Controls |
| Catalogue | DIRT |
REV 2 THROTTLE KIT RMZ, MOTION PRO 01-2721 SUZUKI
Motion Pro Rev2 Offroad Throttle Kit # 01-2721
Suzuki RM-Z250 / RM-Z450 / RMX450Z
Motion Pro’s Rev2 throttle kit will change how much twist is necessary for the throttle to completely open the gas on your motorcycle. The larger the reel is, the shorter the twist. Each of the included reels will shorten the twist by about 10 degrees. If your stock throttle has a 40mm reel and stock twist is 90 degrees (1/4 turn), the 45mm reel will reduce the twist to 80 degrees and the 50mm reel will reduce it to 70 degrees. The 35mm reel will increase the throttle twist to approximately 100 degrees.
Another unique part of the kit is a cam reel with a progressive profile that allows the throttle to act like a sensitive, long twist throttle during the initial small throttle openings for precise control and then acts like a more aggressive short twist throttle at large throttle openings, progressively shortening the amount of twist needed to reach full throttle.
- Second-generation throttle system from Motion Pro
- Patent-pending design is easy to install and maintain
- Innovative reel changing system lets you tailor the throttle rate to riding conditions and rider preference
- Ultra compact reel housing with snap-together elbows make it easy to install and change reels
- Requires less handlebar space than Revolver throttle kit for additional lever and control clearance
- Use smaller reels for slower throttle rate and larger reels for faster throttle rate
- Included cam reel provides progressive throttle response preferred by some riders
- Unique reel design allows fast reel changes
- Cable boot keeps dirt and dust out for reliable and smooth operation
- Billet aluminum in-line cable adjusters for easy installation and adjustment
- Lower section of cables use 5mm housing with PTFE liner for reduced friction, increased routing flexibility and lighter weight
-
Upper section of cables use 6mm housing to provide solid support of adjusters
-

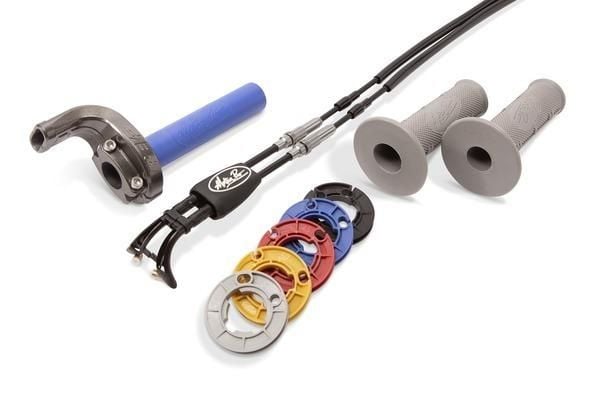

Rev2 Throttle Assembly with Motion Pro Titan throttle tube
- Motion Pro black vinyl cables specifically designed for your bike

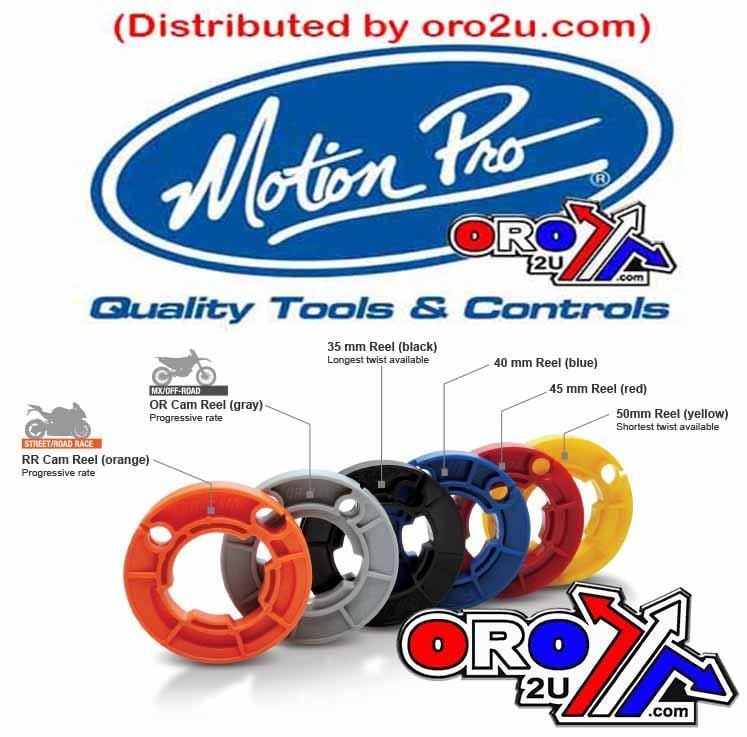

- 5 interchangeable reels: 35, 40, 45, 50mm and gray cam reel
- Motion Pro Dirt Control grips
- Rev2 throttle equipped decal set
- Printed color instructions
MODELREV2 OFFROAD THROTTLE KITCARBURETOR TYPESTOCK
This item fits the following applications:
Part No. 14-K305.REV2 (oro2u.com)
2008-2012 Suzuki RMZ450
2008-2017 Suzuki RMZ250
Revolver VR Throttle Kit, 01-1089/01-1104/Grips, Off Road
Innovative reel changing system allows you to tailor your
throttle rate to riding conditions and rider preference Kit includes four reel sizes: 35 mm, 40 mm, 45 mm, and 50 mm Use smaller reels for slower throttle rate and larger reels for faster throttle rate Unique reel design allows fast reel changes without having to readjust cables Cable boot keeps dirt and dust out for reliable, smooth operation
Billet aluminum inline cable adjusters for easy installation and adjustment Removable setscrew in throttle housing allows for installation on drilled or undrilled handlebars Kit includes complete VR Throttle Assembly and high quality Motion Pro black vinyl cables specifically designed for your bike. Sportbike kits include new Motion Pro RoadControl grips and Off-Road kits include new Motion Pro DirtControl grips.
