RENTHAL YZ/WR 97-01 TITANIUM, REED / WINDHAM, Renthal 966-05-TT-01-185

Part no 48-966T+PAD (oro2u.com)

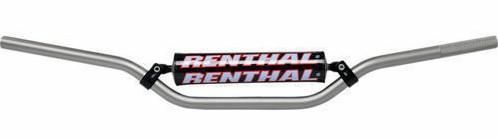

Renthal 7/8 bar 966 Colour Titanium (Bar Pad included)

YAMAHA YZ/WR 97-04
REED / WINDHAM

7/8″ Handlebars

The 7/8-inch handlebar that started the legacy of Renthal, created out of the necessity to produce a (7/8-inch | 22.2mm) dirt bike handlebar that could meet the demands of the world’s best riders. The all-aluminum 7/8-inch handlebar was born.

Undergoing a 15-step advanced manufacturing process, using the same 7010 T6 aluminum found in Twinwall and Fatbar to reduce vibration transferred to the rider’s hands. Combined with a crossbrace to improve stiffness for rider control, and coupled with patented crossbrace clamps, Renthal 7/8-inch bars provide riders with the perfect amount of flex while maintaining the strength to resist bending in the event of a crash.

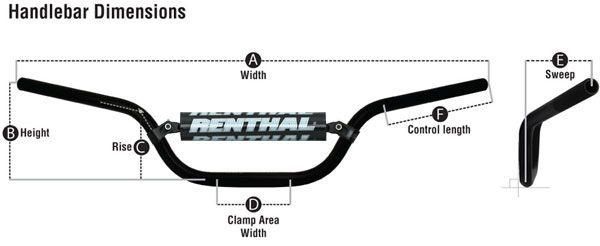

Bar Dimensions

Width / Dimension A 807
Height / dimension B 88
Rise / Dimension C 61
Clamping Width / Dimension D 135
Sweep / Dimension E 60
Control Length / Dimension F 203
Height / Dimension BV 88
Mounting Diameter 22.2mm / 7/8”
