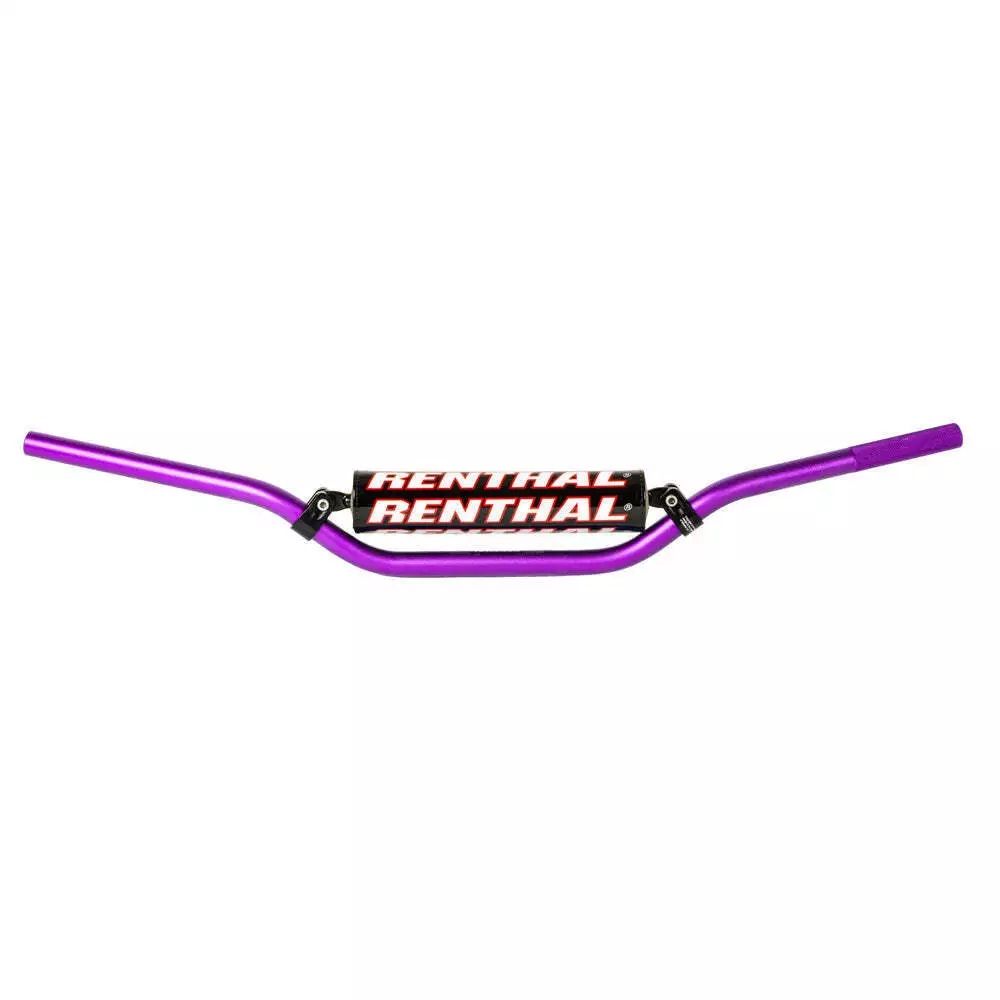

RENTHAL RICKY CARMICHAEL PURPLE 971-08-PE-01-261

The Renthal 971 RC Handlebar, also known as the Ricky Carmichael bend, is a 7/8″ handlebar designed for motocross applications. Popularized by Ricky Carmichael during his tenure with Pro Circuit Kawasaki and American Honda, this bend has been adopted by numerous top-level riders, including MX2 World Champion Jeffrey Herlings.

Features

• Constructed from exclusive 7010 T6 aluminum alloy for strength and vibration reduction
• Shot-peened surface texture enhances fatigue life and durability.
• Includes an injection-molded foam bar pad.
• Available in multiple colors, including purple.

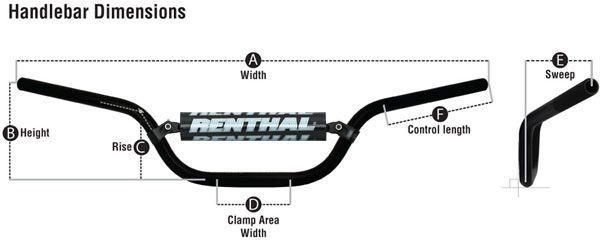

Specifications

• Width: 802 mm
• Height: 97 mm
• Rise: 62 mm
• Clamping Width: 135 mm
• Sweep: 53 mm
• Control Length: 201 mm
• Mounting Diameter: 22.2 mm (7/8″)

Cross-Reference OEM Part Numbers

• 46003-0843-458
• 1C6-F6111-00-35
• 53100-K1T-E50
• 46003-0793
• 46003-0795-458
• 46003-0205-458
• 46003-0723-458
• 46003-0737-458
• 53100-MKE-A50
• 46003-0164-458
• 46003-0077
• 46003-0572
• 53100-MEN-670

Vehicle Fitments

• Honda CR/CRF models from 2004 to 2013
• Kawasaki KX/KXF models from 2006 to 2013
