RENTHAL RICKY CARMICHAEL BLUE, HONDA CR/CRF 04-13, Renthal 971-08-BU-01-185

Part no 48-971BU+PAD (oro2u.com)

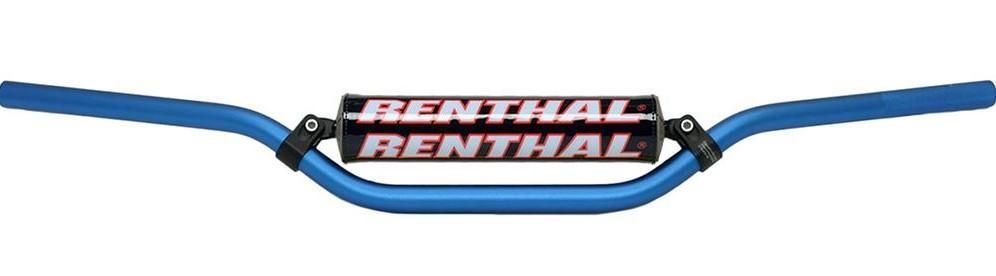

Renthal 7/8 bar 971 Colour Blue (Bar Pad included)
RC

Product Description

Fitting almost perfectly in the middle of the Renthal range of bends, the RC Bar bend is one of the most popular among all bends.

Popularized by Ricky Carmichael during his time at Pro Circuit Kawasaki and American Honda, this bar has been adopted by many top-level riders since, including MX2 World Champion Jeffrey Herlings.

Also called:

• HONDA CR/CRF 04-13
• KAWASAKI KX/KXF 06-13

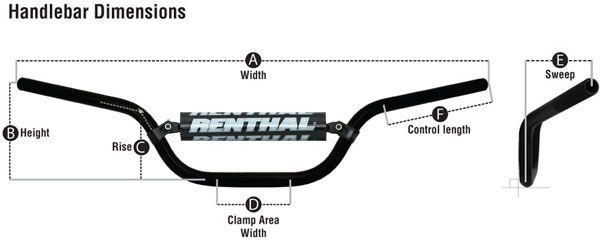

Bar Dimensions (MM)
Width / Dimension A = 802
Height / Dimension B = 97
Rise / Dimension C = 62
Clamping width / Dimension D = 135
Sweep / Dimension E = 53
Control length / Dimension F = 201
Height / Dimension BV 97
Mounting Diameter 22.2 / 7/8
