RENTHAL RC HIGH BLACK, HANDLEBARS 809-01-BK-01-185, 809-01-BK-01-185

Part no 48-809BK+PAD (oro2u.com)

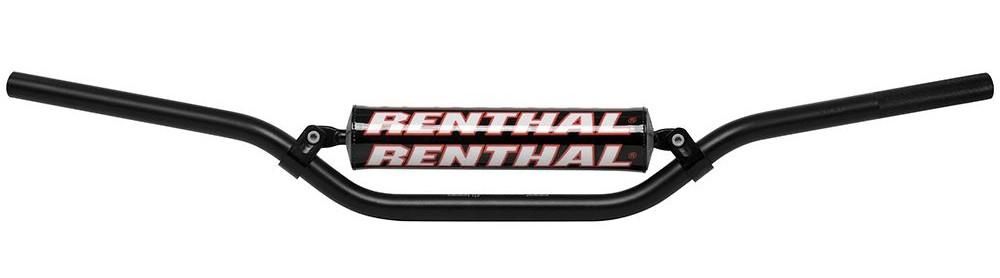

Renthal 7/8 bar 809 Colour Black (Bar Pad included)

Renthal 7/8″ Handlebars

The 7/8-inch handlebar, which marked the beginning of Renthal’s legacy, was created out of the necessity to produce a 7/8-inch (22.2mm) dirt bike handlebar that could meet the demands of the world’s best riders. This all-aluminum 7/8-inch handlebar was born to deliver exceptional performance.

These handlebars undergo a 15-step advanced manufacturing process, utilizing the same 7010 T6 aluminum found in Renthal’s renowned Twinwall and Fatbar designs. This construction reduces vibration transferred to the rider’s hands, enhancing comfort. Additionally, a crossbrace is incorporated to improve stiffness for better rider control. Combined with patented crossbrace clamps, Renthal 7/8-inch bars provide riders with the perfect amount of flex while maintaining the strength to resist bending in the event of a crash.

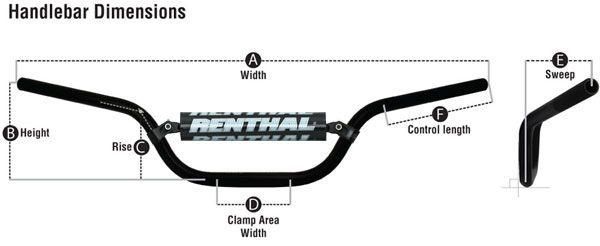

Bar Dimensions (mm)

Width / Dimension A 814
Height / Dimension B 119
Rise / Dimension C 84
Clamping Width / Dimension D 120
Sweep / Dimension E 56
Control Length / Dimension F 197
Height / Dimension BV 119
