RENTHAL FATBAR RC 604 BLUE, Renthal 604-01-BU Handlebar, 760401BE

Part No. 48-210.BE (oro2u.com)
BLUE Fatbar 1 1/8 inc. Handlebar 604 RC Renthal 604-01-BU

Renthal RC Handlebar Bend

Fitting almost perfectly in the middle of the Renthal range of bends, the RC Handlebar Bend is one of the most popular among all bends.

Popularized by Ricky Carmichael during his time at Pro Circuit Kawasaki and American Honda, this bar has been adopted by many top-level riders since, including MX2 World Champion Jeffrey Herlings.

Fitment:

HONDA CR/CRF 04-13

KAWASAKI KX/KXF 06-13

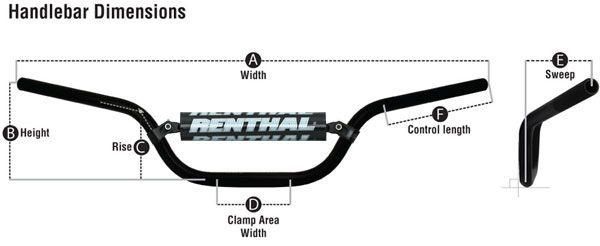

Bar Dimensions (MM)

Width / Dimension A 804
Height / Dimension B 104
Rise / Dimension C
Clamping Width / Dimension D 105
Sweep / Dimension E 54
Control Length / Dimension F 188
Dimension G 117
Height / Dimesnion BV 104
Mounting Diameter 28.6mm / 1+1/8”
