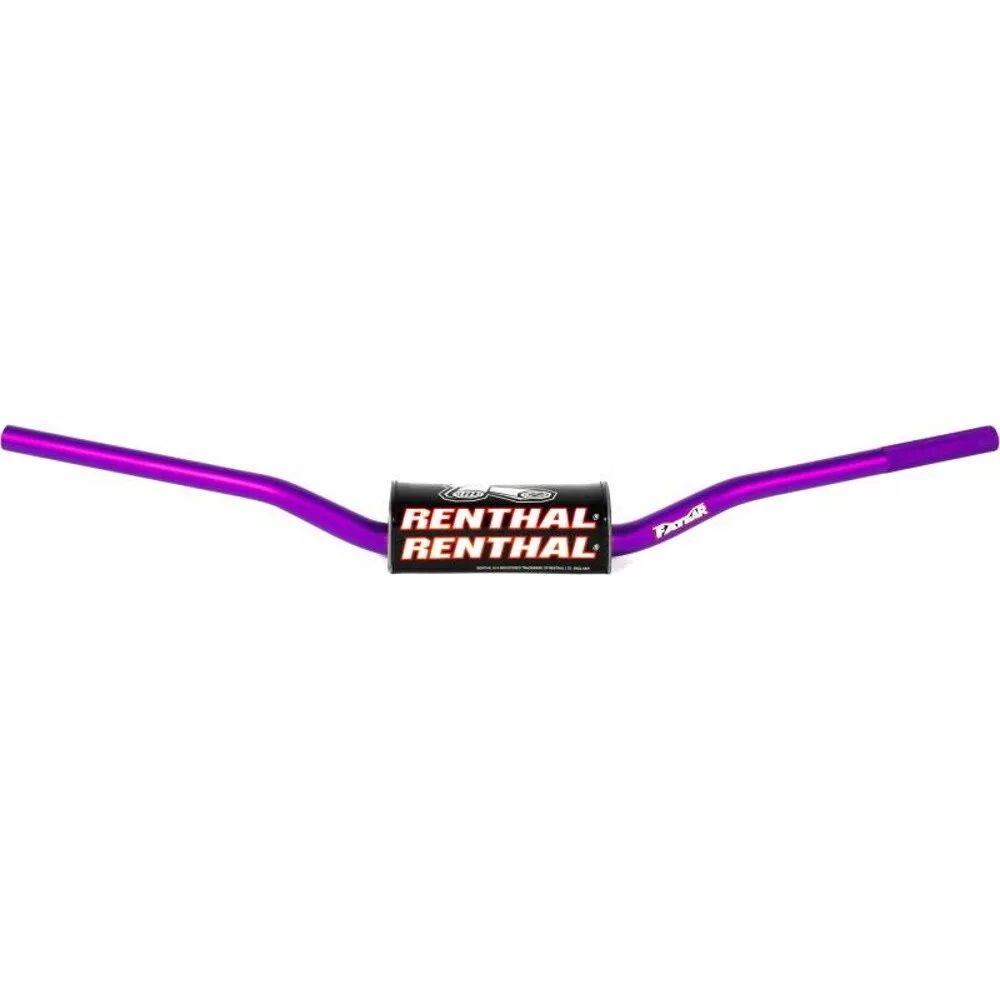

RENTHAL FATBAR MCGRATH 821, MCGRATH / SHORT, Renthal 821-01-PE PURPLE

Part no 48-223.PE

Renthal 821-01-PE

Fitment

821 Mcgrath / KTM SX125-450 2016+ / Suzuki 2018+

Renthal FATBAT Mcgrath 821

The championship-proven Renthal Fatbar continues to set the industry standard in an unbraced tapered MX handlebar. The oversized (1-1/8in | 28.6mm) clamping diameter uses computer-aided profiling, tapering down to (7/8in | 22.2mm) to accept standard controls. Engineered from Renthal’s exclusive 7010 T6 aluminum, specially formulated to reduce vibration and provide superior strength.

The Renthal MX Fatbar provides that signature flex character desired by many top athletes around the globe and is fitted as OE equipment by Honda, Kawasaki, and Suzuki.

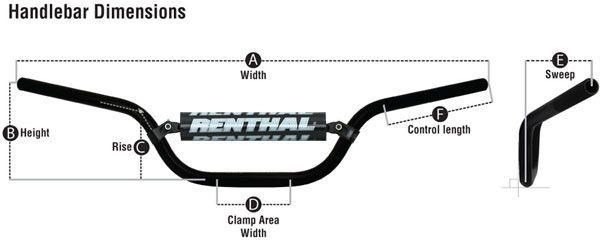

Bar Dimensions (MM)

Width / Dimension A = 813
Height / Dimension B = 78
Rise / Dimension C = 42
Clamping Width / Dimension D = 150
Sweep / Dimension E = 54
Control Length / Dimension F = 200
Dimension G = 95
Height / Dimension Bv = 78
Mounting Diameter = 28.6mm / 1+1/8”
