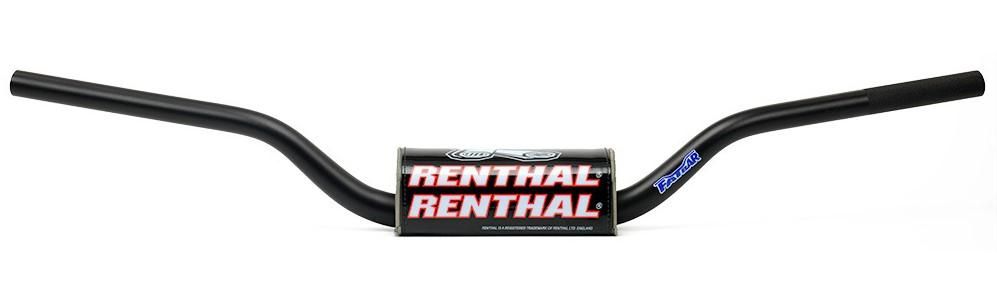

RENTHAL FATBAR KTM85 BLACK, RENTHAL 831-01-BK

Part no 48-228.BK (oro2u.com)
Fatbar? 1 1/8″ Handlebar 831 Black
KTM SX 85 2013 – 2014
The Renthal? Fatbar? features a tapered outer wall resulting in a 1 1/8? (28.6mm) clamping diameter and 7/8″ diameter at the control ends.

This profiled wall and brace less design combines excellent strength with good flexibility.
KTM and Suzuki have chosen the Renthal? Fatbar? as the ultimate brace less handlebar and fit them as original equipment where this design is preferred within their range.

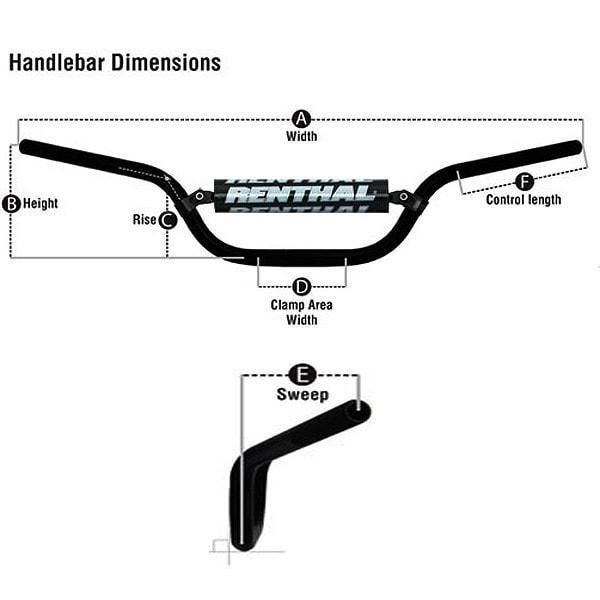

PLEASE NOTE THAT ALL DIMENSIONS ARE GIVEN IN mm.

A 779
B 88
C 53
D 122
